Solar Energy Potential in Brackenfell, Western Cape, South Africa

Brackenfell, Western Cape, South Africa, located in the Southern Sub Tropics, offers promising conditions for solar PV energy generation, though with significant seasonal variations. This location experiences substantial differences in solar energy production throughout the year, making it important to understand these patterns when planning a solar installation. The seasonal variations in electricity output per kW of installed solar capacity show a clear pattern. Summer months are exceptionally productive, generating approximately 9.00 kWh per day for each kilowatt installed. Spring follows as the second most productive season with 7.20 kWh/day. Autumn production drops considerably to 4.98 kWh/day, while winter represents the lowest output period with only 3.49 kWh/day.

Optimal Panel Installation

For fixed solar panel installations in Brackenfell, Western Cape, the ideal tilt angle to maximize year-round energy production is 29 degrees facing North. This specific angle has been calculated based on the location's latitude and seasonal solar patterns to optimize annual energy harvest. The substantial difference between summer and winter production (nearly a 2.6-fold difference) indicates that Brackenfell has a strong seasonal cycle for solar energy generation. This makes summer and spring the ideal times for solar energy production, while winter months will require supplementary energy sources or energy storage solutions to maintain consistent power supply.

Environmental Considerations

Several environmental factors could potentially impact solar production in Brackenfell:

• Dust and pollen: The region can experience dusty conditions, particularly during dry periods, which may accumulate on panels and reduce efficiency.
• Coastal proximity effects: Though not directly coastal, Brackenfell's relative proximity to the Cape Town coast means salt spray could potentially reach the area during strong winds, potentially causing corrosion over time.
• Wind exposure: The area can experience strong seasonal winds, particularly the "Cape Doctor" (strong south-easterly wind), which could affect panel integrity if not properly secured.

Preventative Measures

To maximize solar energy production in Brackenfell, Western Cape, consider these preventative measures:

• Implement regular cleaning schedules, particularly before and during peak production seasons.
• Use corrosion-resistant mounting hardware and solar panel frames designed for coastal-adjacent environments.
• Ensure robust mounting systems that can withstand local wind conditions.
• Consider a slightly west-biased orientation (still maintaining the 29-degree tilt) to capture more late afternoon sun, potentially beneficial for matching residential evening energy usage patterns.
• Install a system with capacity that accounts for winter's lower production if year-round self-sufficiency is desired.

Overall, Brackenfell offers favorable conditions for solar PV installations, with excellent production potential during summer and spring months that can offset the reduced winter generation. With proper installation considerations and maintenance, solar energy remains a viable renewable energy option for this South African location.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

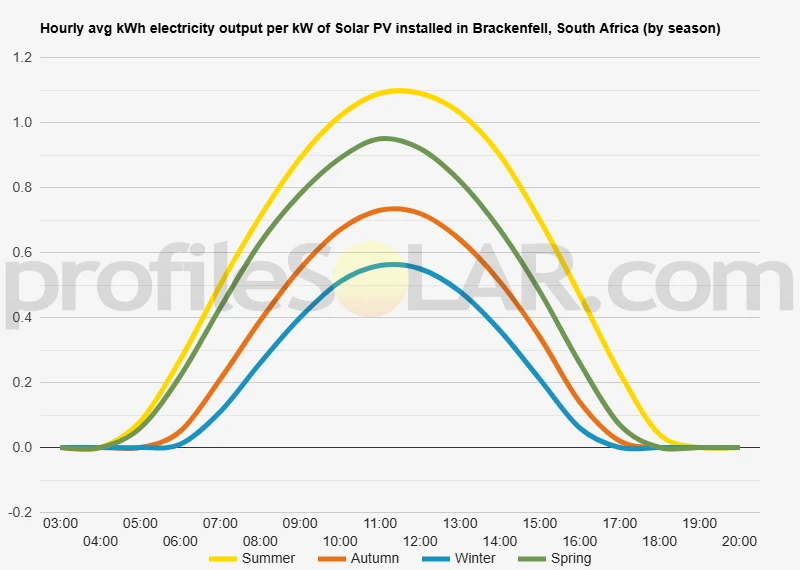

Solar output per kW of installed solar PV by season in Brackenfell

Seasonal solar PV output for Latitude: -33.8646, Longitude: 18.6799 (Brackenfell, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Brackenfell, South Africa

To maximize your solar PV system's energy output in Brackenfell, South Africa (Lat/Long -33.8646, 18.6799) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Brackenfell, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Brackenfell, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Brackenfell, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Brackenfell, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Brackenfell, South Africa

The topography of Brackenfell and its surrounding areas is characterized by gently rolling hills and valleys, situated on the eastern edge of the Cape Town metropolitan area. Brackenfell itself sits at an elevation of approximately 100-150 meters above sea level, in what can be described as the transitional zone between the Cape Flats and the more dramatic Boland mountains further to the east. To the west of Brackenfell lies the relatively flat Cape Flats, a large, low-lying, sandy area. Moving eastward and northward from Brackenfell, the landscape gradually becomes more undulating, with increasing elevation as one approaches the Boland Mountain ranges, which include iconic formations like Paarl Mountain and parts of the greater Cape Fold Belt.

Surrounding Landscape Features

The northern areas beyond Brackenfell rise toward the Durbanville Hills, which provide modest elevation changes and south-facing slopes. To the northeast, the terrain becomes increasingly varied as it transitions toward Paarl and Stellenbosch, with more pronounced hills and valleys characteristic of the Cape Winelands region. The southern approach to Brackenfell is marked by the gradual rise from the Cape Flats, while the eastern trajectory shows increasing elevation toward the more mountainous interior. This eastern corridor, following the N1 highway, reveals a landscape that transitions from urban development to more rural and agricultural settings with varied topography.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, the areas north and northeast of Brackenfell present promising opportunities. The northern corridor extending toward Malmesbury offers relatively flat, open terrain with minimal shading from major geological features. This region receives substantial solar radiation due to its open aspect and limited cloud cover compared to areas closer to Table Mountain. The agricultural lands east of Brackenfell, particularly in the direction of Stellenbosch but before reaching the more dramatic mountain ranges, offer considerable potential. These areas combine favorable topography (gently sloping, north-facing aspects) with proximity to existing electrical infrastructure and transport networks. The Durbanville Hills region, while more undulating, contains numerous plateaus and north-facing slopes that would be well-suited for solar array placement. The elevated position of these sites can reduce morning fog effects that occasionally affect lower-lying areas. Areas to potentially avoid would include the steeper slopes of the eastern mountain ranges, where shading from adjacent peaks could reduce efficiency, and the lowest portions of valleys where morning fog might linger. Similarly, the densely developed urban portions of Brackenfell itself offer limited opportunity for large-scale installations, though smaller rooftop systems remain viable throughout the built environment. The broader Cape Winelands region beyond Brackenfell presents a mosaic of potential sites, with the most suitable being those that combine gentle north-facing slopes, proximity to existing infrastructure, and minimal conflict with high-value agricultural land or sensitive ecological areas.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
