Solar Energy Potential in Bredasdorp, Western Cape, South Africa

Bredasdorp, Western Cape, South Africa, located in the Southern Sub Tropics at coordinates -34.5323, 20.0287, offers varying potential for solar PV energy generation throughout the year. This coastal town experiences significant seasonal differences in solar production capacity. The summer months provide excellent solar generation conditions, with panels producing approximately 7.72kWh per day for each kilowatt installed. This makes summer the optimal season for solar energy production in Bredasdorp. Spring follows as the second most productive season, generating around 6.46kWh daily per kilowatt of installed capacity. Energy production decreases considerably during autumn and winter. Autumn yields about 4.28kWh per day, while winter drops to the annual low of approximately 3.35kWh daily per installed kilowatt. This seasonal variation creates a distinct pattern where summer production is more than double the winter output.

Optimal Panel Installation

For fixed solar panel installations in Bredasdorp, Western Cape, the ideal tilt angle to maximize year-round energy production is 30 degrees facing North. This specific angle has been calculated by analyzing solar elevation patterns at this latitude and weighting them according to daily PV potential based on NASA's solar irradiance data.

Environmental and Weather Considerations

Several environmental factors in Bredasdorp can impact solar energy production. The coastal location means salt spray can accumulate on panels, potentially reducing efficiency over time. Regular cleaning with fresh water is recommended to prevent salt buildup. Strong winds are common in this region, particularly during seasonal changes. Solar installations should use robust mounting systems designed to withstand these conditions, with additional anchoring where necessary. Occasional fog and coastal cloud cover, especially during winter mornings, can temporarily reduce solar efficiency. Installing panels at the recommended 30-degree angle helps maximize exposure when the sun breaks through later in the day. Dust accumulation from the surrounding agricultural areas can also affect panel performance. Implementing automated cleaning systems or scheduling regular maintenance, especially after dry and windy periods, can help maintain optimal energy production throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

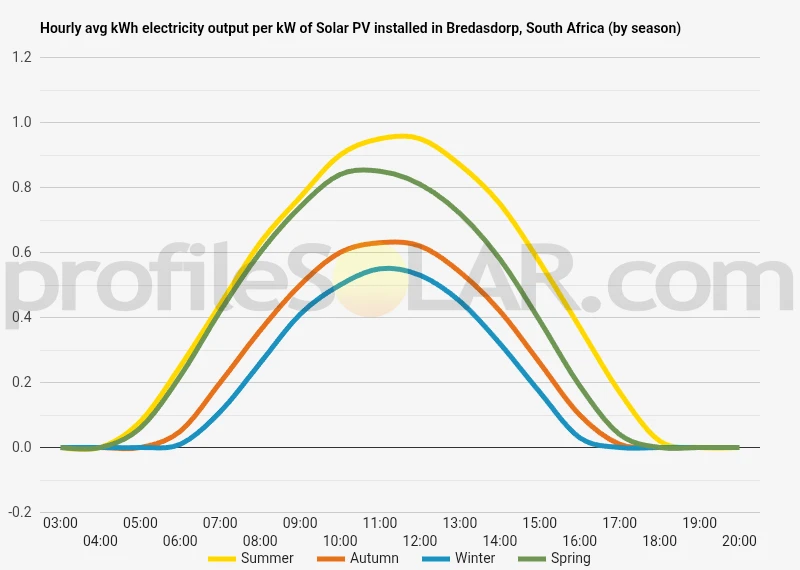

Solar output per kW of installed solar PV by season in Bredasdorp

Seasonal solar PV output for Latitude: -34.5323, Longitude: 20.0287 (Bredasdorp, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° North in Bredasdorp, South Africa

To maximize your solar PV system's energy output in Bredasdorp, South Africa (Lat/Long -34.5323, 20.0287) throughout the year, you should tilt your panels at an angle of 30° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bredasdorp, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bredasdorp, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
19° North in Summer	39° North in Autumn	50° North in Winter	28° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bredasdorp, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bredasdorp, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bredasdorp, South Africa

The landscape surrounding Bredasdorp, South Africa, presents a diverse and intriguing topography characteristic of the Overberg region in the Western Cape Province. Situated approximately 25 kilometers from the southernmost point of the African continent, Bredasdorp sits within a gently undulating plain that gradually rises toward the north and east.

Regional Topography

Bredasdorp itself rests at an elevation of roughly 100 meters above sea level on what can be described as a rolling plateau. The town is nestled between several notable topographical features that define the region. To the north rise the modest Bredasdorp Mountains, part of the broader Hottentots Holland mountain range, with elevations reaching approximately 300-500 meters. These mountains create a natural backdrop to the town and influence local weather patterns. To the south, the terrain gradually descends toward the coastline, where the landscape transitions into coastal plains before meeting the Indian Ocean at Cape Agulhas. This coastal region features a mix of sandy beaches, limestone cliffs, and fynbos-covered dunes characteristic of the Cape Floral Kingdom. The eastern and western approaches to Bredasdorp consist primarily of gently rolling agricultural lands punctuated by occasional hills and shallow valleys. These areas have been largely transformed from their natural state into farmland, with wheat cultivation being particularly prominent in the region.

Soil and Surface Characteristics

The soils around Bredasdorp vary considerably but are predominantly composed of sandy loams derived from weathered sandstone and shale. In many areas, particularly toward the coast, limestone deposits are common, creating a somewhat alkaline soil profile. These limestone formations occasionally break the surface as outcrops, creating distinctive white patches visible across the landscape. Water features are relatively sparse in the immediate vicinity of Bredasdorp, with no major rivers flowing through the town itself. Several seasonal streams and minor watercourses do traverse the broader region, typically flowing during the winter rainfall months.

Vegetation and Land Cover

The natural vegetation around Bredasdorp consists primarily of fynbos, a unique type of shrubland vegetation endemic to the Cape Floral Kingdom. However, much of this natural vegetation has been cleared for agriculture, particularly wheat farming, which dominates the landscape in all directions except toward the more rugged mountainous areas to the north.

Optimal Areas for Solar PV Development

When considering areas near Bredasdorp most suitable for large-scale solar photovoltaic (PV) installations, several factors become important, including topography, land use, and accessibility. The flat to gently rolling plains that extend to the northwest and northeast of Bredasdorp present particularly favorable conditions for solar PV development. These areas benefit from relatively level terrain that would minimize earthworks during construction and reduce associated costs. The elevation of these plains also places them above potential morning fog that sometimes affects lower coastal areas. Specifically, the agricultural lands between Bredasdorp and Napier (to the northwest) offer extensive flat areas with good solar exposure. Similarly, the plains extending toward Swellendam (to the northeast) provide substantial stretches of land with minimal topographical constraints. The areas immediately south of Bredasdorp, extending toward Cape Agulhas, while relatively flat, may be less suitable due to their proximity to the coast and potential for increased cloud cover and maritime influences. Additionally, these southern coastal zones contain more environmentally sensitive habitats that might face greater regulatory hurdles for development. The more mountainous terrain north of Bredasdorp presents challenges for large-scale installations due to shadowing effects, variable slopes, and more difficult access for construction and maintenance. However, certain south-facing slopes within these areas could potentially be utilized for smaller installations if properly engineered. From a land-use perspective, the agricultural lands surrounding Bredasdorp that are currently used for wheat farming could potentially accommodate dual-use scenarios where solar arrays are integrated with continued agricultural activities, particularly sheep grazing, which has proven compatible with solar installations in other regions.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
