Caledon, Western Cape, South Africa, located in the Southern Sub Tropics at coordinates -34.2191, 19.4252, offers reasonably good conditions for year-round solar PV energy generation, though with significant seasonal variation that affects its overall suitability.

Seasonal Solar Performance

The location shows strong seasonal differences in solar energy production. Summer delivers the highest output at 7.91 kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring also performs well with 6.64 kWh per day per kW, providing good energy yields during this season. However, the cooler months present more challenging conditions. Autumn drops to 4.42 kWh per day per kW, while winter reaches the lowest point at just 3.33 kWh per day per kW of installed capacity. This represents a significant reduction compared to summer performance.

Optimal Installation Configuration

For maximum year-round solar production at this Caledon location, solar panels should be installed at a fixed tilt angle of 30 degrees facing North. This angle has been calculated to optimize total annual energy output by accounting for the sun's changing position throughout the year and weighting the angles based on solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Caledon area can impact solar panel performance:

• Strong Cape winds can deposit dust and debris on panels, reducing efficiency
• Occasional hail storms during summer months may damage panels
• Morning fog and mist, common in this region, can temporarily reduce solar output
• Salt air from the nearby coast can cause corrosion over time

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several preventative measures should be considered during installation:

• Install panels with robust mounting systems designed to withstand high winds
• Choose panels with hail-resistant tempered glass ratings
• Implement regular cleaning schedules to remove dust and salt buildup
• Use corrosion-resistant mounting hardware and electrical components
• Position panels to allow natural rain washing while ensuring proper drainage

Overall, while Caledon experiences good solar conditions during warmer months, the significant winter reduction in output and local environmental factors require careful planning and maintenance to ensure optimal long-term solar energy production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

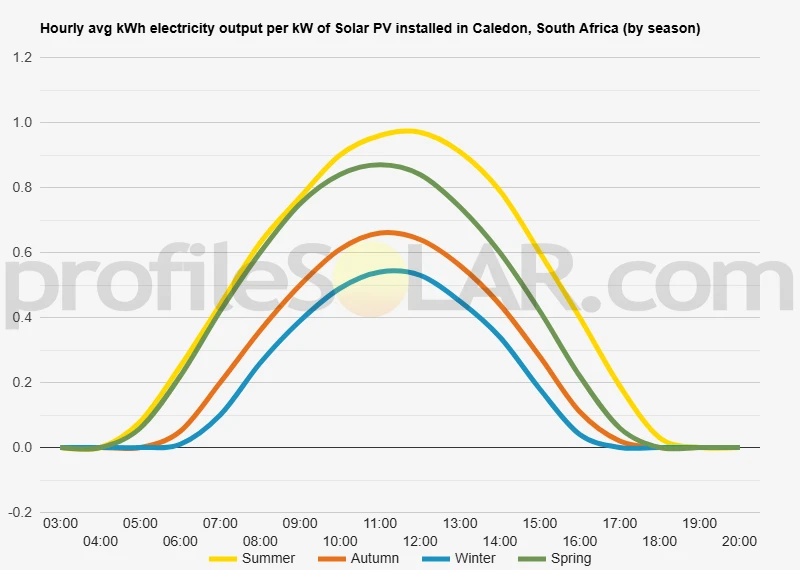

Solar output per kW of installed solar PV by season in Caledon

Seasonal solar PV output for Latitude: -34.2191, Longitude: 19.4252 (Caledon, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° North in Caledon, South Africa

To maximize your solar PV system's energy output in Caledon, South Africa (Lat/Long -34.2191, 19.4252) throughout the year, you should tilt your panels at an angle of 30° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caledon, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caledon, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caledon, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caledon, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caledon, South Africa

The topography around Caledon in South Africa presents a diverse landscape characterized by rolling hills, valleys, and relatively elevated terrain. This area sits within the Cape Fold Belt region, where the landscape has been shaped by ancient geological processes that created a series of mountain ranges and intervening valleys. The immediate vicinity of Caledon features undulating terrain with moderate slopes and elevation changes that create a naturally varied topographical profile.

Regional Landscape Features

The broader region encompasses parts of the Overberg area, which is known for its agricultural suitability and relatively gentle topography compared to the more dramatic mountain ranges found elsewhere in the Western Cape. The terrain consists of a mixture of wheat fields, pastureland, and natural fynbos vegetation, with the landscape generally sloping toward the coast in a southerly direction. Several small rivers and streams traverse the area, creating minor valleys and drainage lines that add to the topographical complexity. Mountain ranges are visible in multiple directions from Caledon, including portions of the Hottentots Holland Mountains to the northwest and various smaller ranges that form part of the Cape Fold Belt system. These mountains create a backdrop of higher elevation terrain, while the immediate Caledon area sits at a more moderate elevation on what could be described as an elevated plateau or series of gentle hills.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be the flatter agricultural areas and gentle slopes found to the south and east of Caledon. These areas offer several advantages including relatively level terrain that minimizes grading requirements, good accessibility for construction and maintenance activities, and sufficient open space for extensive solar arrays. The agricultural lands in this region, particularly those currently used for wheat farming and grazing, present ideal characteristics for solar development due to their cleared nature and generally uniform topography. The elevated plateau areas surrounding Caledon also provide excellent potential for solar installations, as they offer good exposure to prevailing weather patterns while maintaining relatively gentle gradients. These locations would require minimal earthworks and could accommodate large arrays with optimal positioning for maximum solar exposure throughout the day. Areas to avoid for large-scale solar development would include the steeper slopes leading up to the surrounding mountain ranges, the narrow valley bottoms where seasonal water flow might present challenges, and locations with significant rock outcroppings or unstable soil conditions. The more mountainous terrain to the northwest would be less suitable due to irregular topography, potential shading issues, and increased construction complexity.

Infrastructure and Access Considerations

The topography around Caledon generally supports good infrastructure development, with the area being served by major roads that connect to Cape Town and other regional centers. The relatively gentle terrain has allowed for the establishment of a grid of farm roads and access routes that would facilitate the construction and ongoing maintenance of solar installations. The elevation and open nature of much of the surrounding landscape also provides good potential for electrical transmission infrastructure, which is essential for large-scale solar projects. The natural drainage patterns in the area, while creating some topographical variation, are generally predictable and manageable for solar development purposes. Most of the suitable areas have well-established drainage that would not conflict with solar panel placement, and the moderate slopes actually assist with natural water runoff management.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
