Solar Energy Potential in Calitzdorp, Western Cape, South Africa

Calitzdorp, Western Cape, located in the Southern Sub Tropics of South Africa, offers promising conditions for solar PV energy generation throughout the year, though with notable seasonal variations. This Little Karoo town sits at coordinates -33.5369, 21.6809, placing it in an advantageous position for harnessing solar energy. The seasonal electricity output from solar PV systems in Calitzdorp shows a clear pattern. Summer stands out as the most productive period, with each kilowatt of installed capacity generating approximately 8.58 kWh per day. Spring follows as the second most productive season, yielding about 6.96 kWh daily per kilowatt installed. Autumn production decreases to 4.87 kWh per day, while winter represents the lowest output season with 3.66 kWh daily per installed kilowatt. For residents and businesses considering fixed solar panel installations in Calitzdorp, Western Cape, the ideal tilt angle to maximize year-round energy production is 29 degrees facing North. This specific angle has been calculated by analyzing daily solar elevation patterns at this latitude, weighted against the potential daily PV output throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Calitzdorp. The region experiences dust storms during certain times of the year, which can significantly reduce panel efficiency by creating a layer of dust that blocks sunlight. Additionally, the Little Karoo area is known for occasional extreme heat conditions during summer months, which can slightly reduce the efficiency of photovoltaic cells. To mitigate these challenges, solar installations in Calitzdorp should incorporate regular cleaning schedules, particularly after dust storms. Self-cleaning panel technologies or hydrophobic coatings can also be beneficial investments. For heat-related efficiency losses, ensuring adequate airflow beneath panels through proper mounting systems can help maintain cooler operating temperatures and optimize performance. The seasonal variation in output suggests that supplementary energy sources or storage solutions would be valuable during the winter months when solar generation is at its lowest. However, even during winter, the daily output of 3.66 kWh per installed kilowatt represents a meaningful contribution to energy needs, making Calitzdorp a generally favorable location for solar energy throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

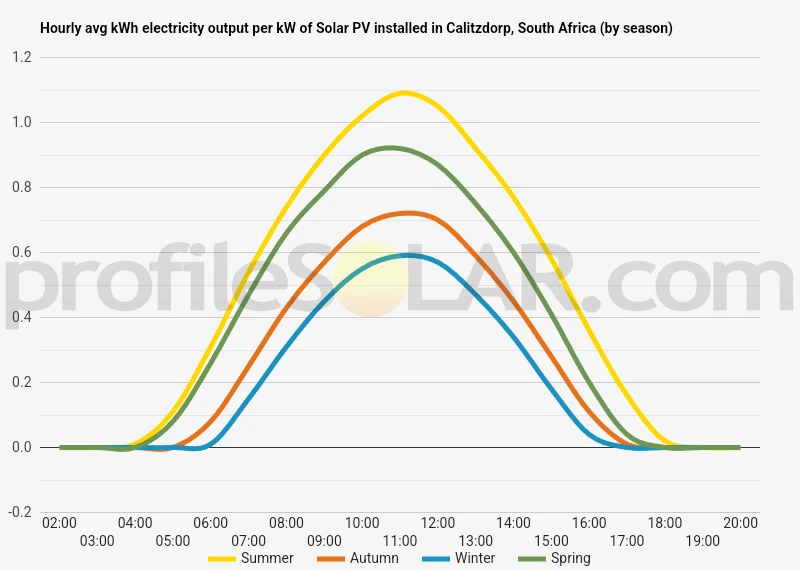

Solar output per kW of installed solar PV by season in Calitzdorp

Seasonal solar PV output for Latitude: -33.5369, Longitude: 21.6809 (Calitzdorp, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Calitzdorp, South Africa

To maximize your solar PV system's energy output in Calitzdorp, South Africa (Lat/Long -33.5369, 21.6809) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Calitzdorp, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Calitzdorp, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	38° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Calitzdorp, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Calitzdorp, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Calitzdorp, South Africa

Topography of Calitzdorp and Surrounding Areas

Calitzdorp is situated in the Klein Karoo region of South Africa's Western Cape Province, nestled within a dramatic landscape defined by striking geological features. The town lies in a valley between the imposing Swartberg mountain range to the north and the Rooiberg mountains to the south, creating a basin-like setting with varied elevation. The topography around Calitzdorp is characterized by semi-arid terrain with rolling hills, flat plains, and rocky outcrops. The elevation in the immediate vicinity of the town is approximately 245 meters above sea level, but this rises considerably as one moves toward the mountain ranges. The Swartberg mountains reach heights exceeding 2,000 meters, forming a formidable natural barrier that influences local climate patterns. The Gamka River flows near Calitzdorp, having carved its path through the landscape over millennia. This watercourse has created fertile alluvial soils in parts of the valley, contrasting with the otherwise arid surroundings. The broader Klein Karoo region features a mix of flat plains and undulating terrain covered with drought-resistant vegetation, primarily low shrubs and succulents typical of semi-desert environments.

Potential Areas for Solar PV Development

Several areas surrounding Calitzdorp present favorable conditions for large-scale solar photovoltaic installations due to their topographical characteristics: The flat plains extending to the east and west of Calitzdorp offer ideal terrain for solar development. These areas provide relatively level ground that would minimize earthworks and foundation costs during installation. The open nature of these plains also means minimal natural shading from geographical features, maximizing potential solar exposure throughout the day. The slightly elevated plateaus to the south, between Calitzdorp and the Rooiberg mountains, present another promising location. These areas benefit from good drainage, reduced risk of flooding, and minimal vegetation that would require clearing. The gradual slopes in these regions are gentle enough to accommodate solar arrays without significant terraforming. North of Calitzdorp, before reaching the steeper slopes of the Swartberg range, lie areas of gently rising terrain that could be suitable for solar development. These locations might benefit from slightly cooler temperatures due to their elevation, which can improve photovoltaic efficiency, as solar panels typically perform better in cooler conditions. The broad valley floor between the mountain ranges offers extensive flat areas with minimal current agricultural use due to the semi-arid conditions. These lands, with their sparse vegetation and minimal alternative economic value, present opportunities for solar development with reduced land-use conflicts. It's worth noting that the areas immediately adjacent to the Gamka River and other seasonal watercourses should be avoided due to potential flooding risks and higher ecological sensitivity. Similarly, the steeper slopes of both the Swartberg and Rooiberg mountains would present significant construction challenges and higher environmental impacts, making them less suitable for large-scale solar installations. The Klein Karoo's clear skies and limited rainfall contribute to excellent solar radiation conditions throughout the region, making the topographically suitable areas around Calitzdorp particularly promising for solar energy development.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
