Solar Energy Potential in Cofimvaba, South Africa

Cofimvaba, a location in South Africa's Eastern Cape province, offers promising conditions for solar photovoltaic (PV) energy generation throughout the year. Situated in the Southern Sub Tropics at coordinates -32.0156, 27.5856, this area receives significant solar radiation that can be harnessed for electricity production. The seasonal performance of solar PV systems in Cofimvaba shows notable variation. During summer months, solar panels generate their highest output at 6.64kWh per day for each kilowatt installed. Spring follows closely with 6.22kWh/day per installed kilowatt. Energy production decreases in autumn to 4.68kWh/day, while winter represents the lowest generation period with 3.83kWh/day per kilowatt of installed capacity.

Optimal Installation Considerations

For fixed solar panel installations in Cofimvaba, the ideal tilt angle to maximize year-round energy production is 29 degrees facing North. This specific angle has been calculated to optimize solar capture throughout the year, accounting for the Earth's elliptical orbit and the location's position in the Southern Hemisphere. The substantial difference between summer/spring and winter production indicates that Cofimvaba experiences significant seasonal variation. However, even during winter months, the area maintains reasonable solar generation capacity, making it suitable for year-round solar applications.

Environmental and Weather Considerations

Several environmental factors could affect solar production in Cofimvaba. Dust accumulation is a significant concern in this semi-arid region, potentially reducing panel efficiency by 10-30% if not addressed. Regular cleaning schedules, particularly before peak production seasons, can mitigate this issue. Some installations benefit from automated cleaning systems or dust-repellent coatings. Occasional severe thunderstorms during summer months may cause temporary production drops and potential physical damage. Installing surge protectors and ensuring panels are securely mounted to withstand high winds can provide protection against these weather events. Morning fog, particularly in winter and spring, might delay peak production hours in Cofimvaba. Positioning panels to maximize exposure during mid-day and afternoon periods can help compensate for this phenomenon. Despite these challenges, Cofimvaba's overall solar potential remains excellent, with annual averages that make solar PV installations economically viable. The region's balanced seasonal performance, with only moderate winter reduction, creates favorable conditions for solar energy as a reliable power source throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

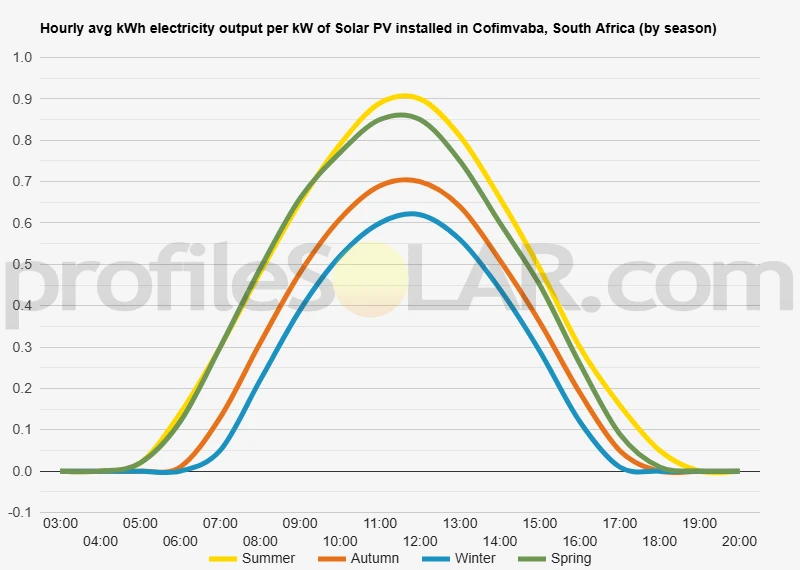

Solar output per kW of installed solar PV by season in Cofimvaba

Seasonal solar PV output for Latitude: -32.0156, Longitude: 27.5856 (Cofimvaba, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Cofimvaba, South Africa

To maximize your solar PV system's energy output in Cofimvaba, South Africa (Lat/Long -32.0156, 27.5856) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cofimvaba, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cofimvaba, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° North in Summer	37° North in Autumn	47° North in Winter	25° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cofimvaba, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cofimvaba, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cofimvaba, South Africa

The town of Cofimvaba is situated in the Eastern Cape province of South Africa, nestled within the undulating landscape of what was historically part of the Transkei region. The topography around Cofimvaba is characterized by rolling hills and valleys, with elevations generally ranging between 800 and 1,200 meters above sea level. The terrain forms part of the foothills of the Drakensberg mountain range, creating a picturesque landscape of grassy slopes interspersed with scattered settlements. The area features a mix of open grasslands and bushy vegetation typical of the Eastern Cape's inland regions. Small rivers and streams cut through the landscape, forming valleys between the hills. The Great Kei River flows not far from Cofimvaba, influencing the broader regional topography. This varied terrain creates a mosaic of slopes with different aspects (directions they face) and gradients.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, the most suitable areas near Cofimvaba would be the relatively flat plateaus and gently sloping north-facing hillsides. These locations receive optimal solar exposure in the Southern Hemisphere. Several specific regions stand out as particularly promising: The elevated plateaus to the north and northeast of Cofimvaba offer expansive, relatively flat terrain that would minimize the earthworks required for large-scale solar installations. These areas typically have good drainage and reduced risk of shadowing from surrounding topographical features. The gradual slopes facing north between Cofimvaba and Ngcobo (formerly Engcobo) present another favorable option. These areas benefit from consistent sun exposure throughout the day and generally have adequate accessibility for construction and maintenance purposes. The more open terrain along the R61 corridor, particularly in the direction of Queenstown (now Komani), offers potential sites with proximity to existing transportation infrastructure. This would facilitate the logistics of constructing and maintaining solar installations. It's worth noting that while the immediate vicinity of Cofimvaba has suitable areas, the more level expanses found approximately 20-30 kilometers to the north and northwest might offer superior conditions for truly large-scale developments. These areas typically have less pronounced topographical variation and fewer settlements, potentially simplifying land acquisition and development processes. The region's soil composition, predominantly consisting of clayey loams derived from the weathering of underlying sedimentary rocks, generally provides adequate stability for solar array foundations, though site-specific geotechnical investigations would be necessary for any substantial development.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
