Gansbaai, Western Cape, South Africa presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variation typical of its Southern Sub Tropics climate zone at coordinates -34.5833, 19.35.

Seasonal Solar Performance

The solar energy output at this location shows considerable fluctuation throughout the year. Summer delivers the strongest performance at 7.91 kWh per day per kW of installed solar capacity, making it the peak season for energy generation. Spring follows as the second-best performing season with 6.64 kWh per day per kW, offering solid energy production during this transitional period. Autumn sees a notable decline to 4.42 kWh per day per kW, while winter represents the challenging period with the lowest output at just 3.33 kWh per day per kW of installed capacity. This winter figure is less than half the summer production, highlighting the importance of proper system sizing for year-round energy needs.

Optimal Installation Configuration

For maximum year-round solar production at Gansbaai, Western Cape, solar panels should be installed at a fixed tilt angle of 30 degrees facing north. This angle has been calculated to optimize total annual energy output by accounting for the sun's varying elevation throughout the year and weighting these angles according to daily solar potential.

Environmental and Weather Challenges

Several local factors in Gansbaai can significantly impact solar panel performance and require careful consideration during installation:

• Coastal salt exposure: Being a coastal town, salt-laden air can corrode panel frames, mounting systems, and electrical connections over time
• Strong coastal winds: The area experiences powerful winds that can damage panels or mounting structures if not properly secured
• Sand and dust accumulation: Coastal environments often have airborne particles that can reduce panel efficiency by blocking sunlight
• Marine moisture: High humidity and salt spray can accelerate corrosion and create electrical issues

Preventative Installation Measures

To maximize energy production despite these challenges, several protective measures should be implemented. All mounting hardware and electrical components should use marine-grade materials with enhanced corrosion resistance, particularly stainless steel or specially coated aluminum systems designed for coastal environments. Panel mounting systems must be engineered to withstand high wind loads, with proper structural calculations and reinforced anchoring points. Regular cleaning schedules become essential in this environment, with panels requiring more frequent washing to remove salt deposits and accumulated debris that can significantly reduce output. Electrical connections should be sealed with marine-grade enclosures and protective coatings, while inverters and other sensitive equipment should be positioned in well-ventilated but protected locations away from direct salt spray exposure. Installing monitoring systems helps identify performance issues early, allowing for prompt maintenance that preserves optimal energy generation throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

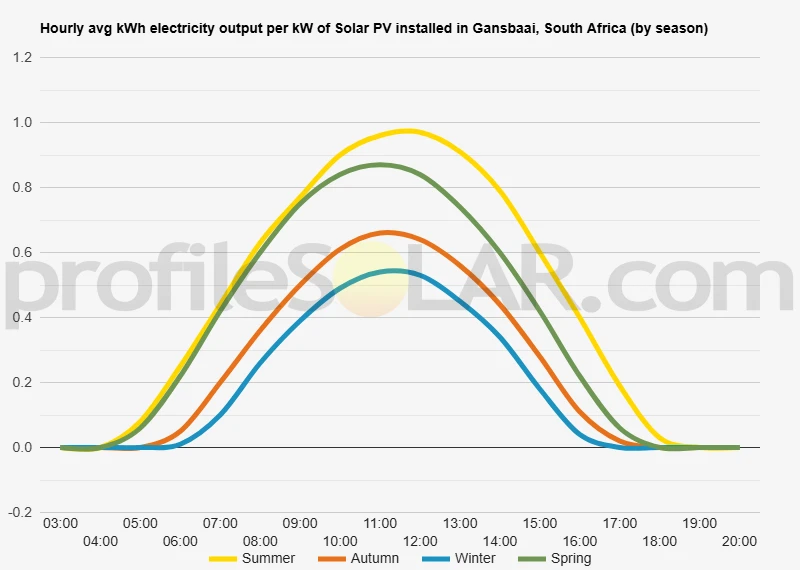

Solar output per kW of installed solar PV by season in Gansbaai

Seasonal solar PV output for Latitude: -34.5833, Longitude: 19.35 (Gansbaai, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° North in Gansbaai, South Africa

To maximize your solar PV system's energy output in Gansbaai, South Africa (Lat/Long -34.5833, 19.35) throughout the year, you should tilt your panels at an angle of 30° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gansbaai, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gansbaai, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
19° North in Summer	40° North in Autumn	50° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gansbaai, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gansbaai, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gansbaai, South Africa

Topographical Features of Gansbaai

Gansbaai sits along the rugged coastline of the Western Cape, where the Indian and Atlantic Oceans meet. The town is positioned on relatively low-lying coastal plains that stretch inland from dramatic rocky shores and pristine beaches. The immediate coastal area features limestone cliffs, sandy coves, and fynbos-covered dunes that create a picturesque but challenging landscape for development. Moving inland from the coast, the terrain gradually rises through rolling hills and agricultural valleys. These inland areas are characterized by gentle slopes and open farmland, much of which is currently used for wheat cultivation and livestock grazing. The soil composition varies from sandy coastal soils to more fertile clay-loam soils further inland, with scattered rocky outcrops throughout the region. The broader Overberg region surrounding Gansbaai features a mix of coastal lowlands and inland plateaus. Mountain ranges, including parts of the Klein River Mountains, form a backdrop to the north and east, though these elevated areas are located well beyond the immediate Gansbaai vicinity. The landscape is predominantly Mediterranean in character, with natural vegetation consisting mainly of fynbos shrublands and seasonal wetlands.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for substantial solar photovoltaic installations lie in the inland agricultural areas, approximately 10 to 20 kilometers northeast and east of Gansbaai town center. These zones offer several advantages including relatively flat to gently undulating terrain that minimizes earthworks and foundation costs. The existing farming areas provide large contiguous parcels of land with established access roads and proximity to electrical infrastructure. The elevated inland plateaus present particularly attractive opportunities for solar development. These areas benefit from consistent wind patterns that help keep solar panels cool and efficient, while the higher elevation provides excellent exposure to direct sunlight with minimal shading from coastal fog that occasionally affects the immediate shoreline areas. Areas around the farming communities of Fraaigelegen and towards Bredasdorp offer expansive open landscapes with minimal environmental constraints. The terrain in these locations is predominantly cleared agricultural land with gentle gradients typically under five degrees, making them ideal for large solar arrays. The soil conditions are stable enough to support standard mounting systems while remaining cost-effective for ground preparation. The region's established electrical grid infrastructure, developed to serve the agricultural sector, provides a foundation for connecting large-scale solar installations to the national power network. Road access throughout the farming areas is generally good, facilitating both construction logistics and ongoing maintenance operations for solar facilities.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
