Graaff-Reinet, South Africa presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location varies considerably throughout the year. Summer delivers the strongest performance at 8.00 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 6.95 kWh daily output, while autumn drops to 4.97 kWh per day. Winter presents the most challenging conditions with only 3.94 kWh daily generation per kW installed. For optimal year-round energy production from a fixed panel installation at Graaff-Reinet, solar panels should be tilted at 29 degrees facing north. This angle maximizes total annual solar output by accounting for the sun's changing position throughout the seasons and the area's specific latitude.

Environmental and Weather Challenges

Several local factors in the Graaff-Reinet area can significantly impact solar energy production:

• Dust and Sand Accumulation: The semi-arid Karoo climate generates considerable dust that settles on solar panels, reducing their efficiency over time
• Seasonal Rainfall Patterns: Limited winter rainfall means natural panel cleaning is minimal during the already low-production months
• Temperature Extremes: High summer temperatures can reduce panel efficiency, while the region experiences significant temperature fluctuations
• Wind and Debris: Strong Karoo winds can deposit sand and organic matter on panels

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective: Regular cleaning schedules become essential, particularly during dry periods when dust accumulation peaks. Installing panels with adequate spacing allows for proper air circulation, helping to manage temperature-related efficiency losses. Choosing panels with anti-soiling coatings can reduce dust adherence and make cleaning more effective. Proper mounting systems designed for wind resistance prevent damage and maintain optimal panel positioning. Installing monitoring systems helps identify when cleaning or maintenance is needed by tracking performance drops that indicate dust buildup or other issues. The location's summer peak production period of 8.00 kWh daily makes it worthwhile to address these maintenance challenges, as the strong seasonal performance can offset the additional upkeep requirements typical of semi-arid environments.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

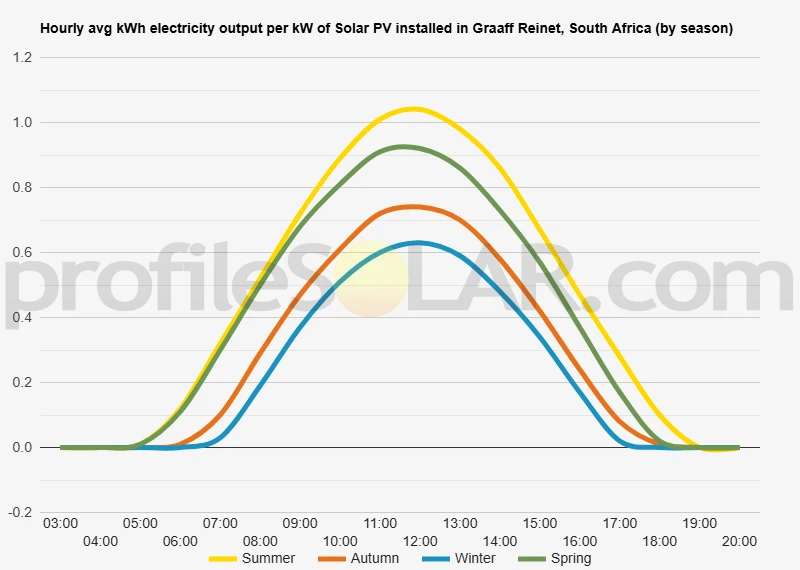

Solar output per kW of installed solar PV by season in Graaff Reinet

Seasonal solar PV output for Latitude: -32.2514, Longitude: 24.5509 (Graaff Reinet, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Graaff Reinet, South Africa

To maximize your solar PV system's energy output in Graaff Reinet, South Africa (Lat/Long -32.2514, 24.5509) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Graaff Reinet, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Graaff Reinet, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° North in Summer	37° North in Autumn	47° North in Winter	25° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Graaff Reinet, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Graaff Reinet, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Graaff Reinet, South Africa

Topographical Features of Graaff-Reinet

Graaff-Reinet sits in the heart of the Great Karoo, South Africa's vast semi-arid plateau region, surrounded by dramatic geological formations that create one of the country's most distinctive landscapes. The town itself lies in a fertile valley carved by the Sundays River, which forms a distinctive horseshoe bend around the settlement. This river valley provides a green oasis amid the otherwise dry and rocky terrain that characterizes much of the Eastern Cape's interior.

The surrounding topography is dominated by the Sneeuberg mountain range to the north and the Camdeboo Mountains to the south and east. These ranges consist primarily of sedimentary rock formations, including sandstone and shale layers that have been sculpted over millions of years into striking flat-topped hills known as koppies. The famous Valley of Desolation, located just outside town, showcases towering dolerite columns and pillars that rise dramatically from the valley floor, creating a landscape of remarkable geological beauty.

The elevation around Graaff-Reinet varies considerably, with the town center positioned at approximately 760 meters above sea level. The surrounding plains and plateaus generally range between 800 and 1,200 meters in elevation, while the mountain peaks can reach heights of over 2,000 meters. This varied topography creates distinct microclimates and terrain types within relatively short distances.

Terrain Characteristics and Land Use

The Karoo landscape around Graaff-Reinet is characterized by wide, open plains broken by scattered rocky outcrops and gentle rolling hills. The vegetation is typically sparse, consisting mainly of drought-resistant shrubs, succulents, and hardy grasses adapted to the semi-arid climate. Large portions of the surrounding area are used for extensive sheep and goat farming, taking advantage of the natural grazing that the Karoo vegetation provides.

The soil composition varies from rocky, shallow soils on the hillsides and mountain slopes to deeper, more fertile alluvial soils in the river valleys and lower-lying areas. Much of the terrain features a hard-packed surface with scattered stone and minimal vegetation cover, particularly on the higher plateaus and exposed slopes. These characteristics, combined with the generally flat to gently undulating topography away from the mountain ranges, create extensive areas of relatively uniform terrain.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Graaff-Reinet would be the extensive flat to gently sloping plateaus that stretch to the west and northwest of the town. These areas offer several key advantages: they are relatively level, minimizing the need for extensive ground preparation and grading work, and they feature minimal vegetation that would require clearing. The sparse population density in these areas also means fewer land use conflicts and potentially lower land acquisition costs.

The plains extending toward the towns of Aberdeen and Beaufort West present particularly promising opportunities, as they combine favorable topographical conditions with proximity to existing electrical infrastructure. These areas are characterized by wide, open expanses with gentle gradients that would allow for efficient panel installation and maintenance access. The hard-packed soil conditions, while challenging for some agricultural uses, actually provide stable foundations for solar mounting systems.

Areas to the south and southeast of Graaff-Reinet, while also featuring suitable terrain in places, are more constrained by the presence of the Camdeboo National Park and associated conservation areas. The mountainous regions to the north and east, despite receiving excellent solar exposure on south-facing slopes, present significant challenges due to steep gradients, rocky terrain, and difficult access for construction and maintenance activities.

The river valley areas, while offering flatter terrain and better access, are generally less suitable due to their higher agricultural value, potential environmental sensitivities related to riparian zones, and occasional flooding risks. The most practical approach for large-scale solar development would focus on the elevated plateaus and plains where the combination of suitable topography, minimal competing land uses, and good accessibility creates optimal conditions for renewable energy infrastructure.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
