Grahamstown, Eastern Cape, South Africa, located in the Southern Sub Tropics at latitude -33.3013 and longitude 26.5325, offers a promising environment for solar PV energy generation throughout the year. The location experiences significant seasonal variations in solar output, which is typical for regions in the Southern Hemisphere.

Seasonal Solar Performance

Summer in Grahamstown provides the highest solar energy output, with an impressive 6.99 kWh per day for each kilowatt of installed solar capacity. This peak performance coincides with the longer daylight hours and more direct sunlight during the Southern Hemisphere summer months. Spring follows closely behind summer in terms of solar productivity, generating 6.23 kWh per day. This season offers an excellent balance of moderate temperatures and ample sunshine, making it an ideal time for solar energy production. Autumn sees a noticeable decrease in solar output, with 4.49 kWh per day. While this represents a significant drop from the summer and spring figures, it still provides a respectable amount of energy. Winter experiences the lowest solar energy production, with 3.68 kWh per day. This reduction is due to shorter daylight hours and the sun's lower position in the sky during the Southern Hemisphere winter.

Optimal Panel Positioning

For fixed panel installations in Grahamstown, Eastern Cape, the ideal tilt angle to maximize year-round solar production is 30 degrees facing North. This angle takes into account the location's latitude and seasonal variations in the sun's position, ensuring optimal energy capture throughout the year.

Environmental Considerations

While Grahamstown generally offers favorable conditions for solar energy production, there are a few environmental factors to consider: 1. Dust and pollen: The region's semi-arid climate can lead to dust accumulation on solar panels, potentially reducing their efficiency. Regular cleaning and maintenance can mitigate this issue. 2. Occasional cloud cover: Although Grahamstown experiences many sunny days, periodic cloud cover, especially during the winter months, can temporarily reduce solar output. Installing high-quality panels that perform well in diffuse light conditions can help maintain energy production during these times. To maximize solar energy production in Grahamstown, Eastern Cape, consider implementing a tracking system to follow the sun's movement throughout the day. Additionally, using anti-reflective coatings on panels can improve their performance in varying light conditions. With these measures in place, Grahamstown's location proves to be quite favorable for year-round solar PV energy generation, particularly during the summer and spring months.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

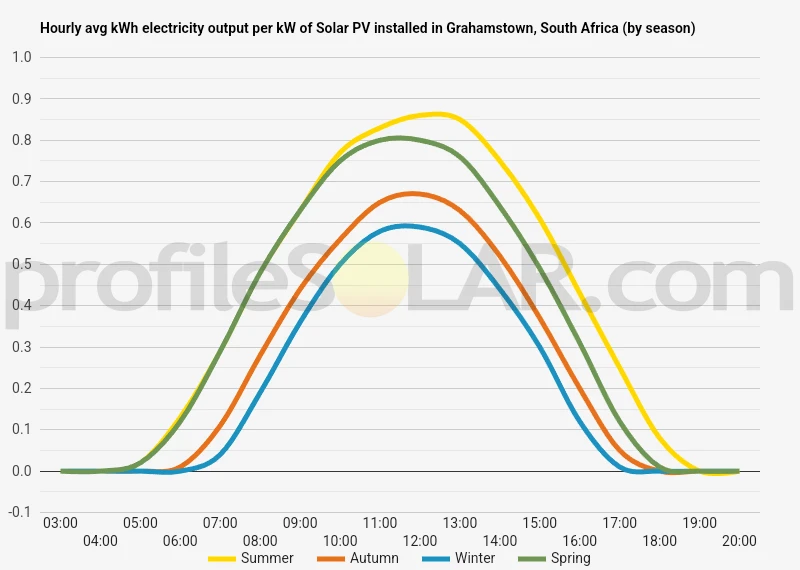

Solar output per kW of installed solar PV by season in Grahamstown

Seasonal solar PV output for Latitude: -33.3013, Longitude: 26.5325 (Grahamstown, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° North in Grahamstown, South Africa

To maximize your solar PV system's energy output in Grahamstown, South Africa (Lat/Long -33.3013, 26.5325) throughout the year, you should tilt your panels at an angle of 30° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Grahamstown, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Grahamstown, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° North in Summer	38° North in Autumn	49° North in Winter	26° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Grahamstown, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Grahamstown, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Grahamstown, South Africa

Grahamstown, South Africa, is situated in a diverse and picturesque landscape that offers a mix of rolling hills, plateaus, and valleys. The town itself is nestled in a basin surrounded by hills, with the terrain gradually rising as you move away from the center. To the north and west, the land becomes more rugged and mountainous, featuring the Amathole Mountains in the distance. These higher elevations create a natural barrier and contribute to the area's unique microclimate. To the south and east of Grahamstown, the topography becomes gentler, with undulating grasslands and scattered patches of indigenous forest. This area, known as the Albany Thicket biome, is characterized by its mix of shrubland and savanna. The landscape is dotted with small streams and rivers that have carved shallow valleys over time, creating a patchwork of microclimates and habitats.

Potential for Solar PV Development

When considering areas near Grahamstown for large-scale solar PV installations, several factors come into play. The most suitable locations would be those with relatively flat terrain, good sun exposure, and minimal environmental impact. Based on these criteria, the following areas show promise: The plains to the east and southeast of Grahamstown offer expansive, open spaces with gentle slopes. These areas receive ample sunlight throughout the year and have fewer obstructions that could cast shadows on solar panels. The land here is primarily used for agriculture, which could potentially be repurposed for solar farms without significant ecological disruption. To the north and northeast of the town, there are elevated plateaus that could be ideal for solar PV installations. These higher grounds often experience less fog and mist compared to the lower-lying areas, ensuring more consistent solar exposure. However, care would need to be taken to avoid areas with steep slopes or significant biodiversity. The region southwest of Grahamstown, towards the coast, also presents opportunities for solar development. This area features wide, open spaces with good solar radiation levels. The proximity to the coast means there's potential for integrating solar power with other renewable energy sources, such as wind power, which is already being harnessed in some coastal areas of the Eastern Cape. It's important to note that while these areas show potential for solar PV development, any large-scale project would require detailed environmental impact assessments and consideration of local communities and ecosystems. The unique biodiversity of the region, including the Albany Thicket biome, would need to be carefully protected in any development plans.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
