Groblersdal, Mpumalanga, South Africa presents excellent conditions for year-round solar energy generation, making it a highly suitable location for solar PV installations in the Southern Sub Tropics.

Seasonal Solar Performance

The solar energy output at this location shows strong performance across all seasons, with Spring delivering the highest production at 6.93kWh per day per kW of installed solar capacity. Summer follows closely with 6.55kWh/day, while Autumn maintains solid output at 5.91kWh/day. Even during Winter, the lowest production period, the location still generates a respectable 4.92kWh/day per kW installed. This seasonal pattern makes Groblersdal particularly attractive for solar installations, as the location experiences only a moderate drop in winter production compared to peak seasons. The difference between the best and worst performing seasons is approximately 41%, which is relatively modest for solar installations at this latitude.

Optimal Installation Configuration

For maximum year-round energy production at Groblersdal, Mpumalanga, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, weighted by solar irradiance data to account for Earth's elliptical orbit and seasonal variations.

Environmental and Weather Considerations

Several local factors could potentially impact solar production at this location and should be considered during installation:

• Dust and Agricultural Activity: Groblersdal's location in an agricultural region means dust accumulation from farming activities and dry soil can reduce panel efficiency
• Seasonal Rainfall Patterns: The area experiences distinct wet and dry seasons, with potential for extended dry periods that increase dust buildup
• Hail Risk: The region can experience severe thunderstorms with hail during summer months, which could damage solar panels
• High Temperatures: Extreme summer heat can reduce solar panel efficiency despite high solar irradiance

Preventative Measures for Optimal Performance

To maximize energy production and protect your solar investment at this location, several preventative measures should be implemented: Regular cleaning schedules are essential, particularly during dry seasons when dust accumulation is highest. Installing panels with adequate spacing allows for proper air circulation and easier maintenance access. Consider automated cleaning systems for larger installations to maintain peak efficiency. Hail protection can be achieved by selecting panels with tempered glass rated for impact resistance and ensuring proper mounting systems that can withstand severe weather. Some installers also recommend protective screens or covers that can be deployed during severe weather warnings. Temperature management is crucial for maintaining efficiency during hot summer months. Ensure panels have adequate ventilation underneath and consider light-colored mounting systems that reflect rather than absorb heat. Proper cable management and ventilated inverter enclosures also help prevent heat-related performance degradation. Overall, Groblersdal offers excellent solar potential year-round, and with proper installation techniques and maintenance practices, solar PV systems can operate at high efficiency throughout all seasons.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

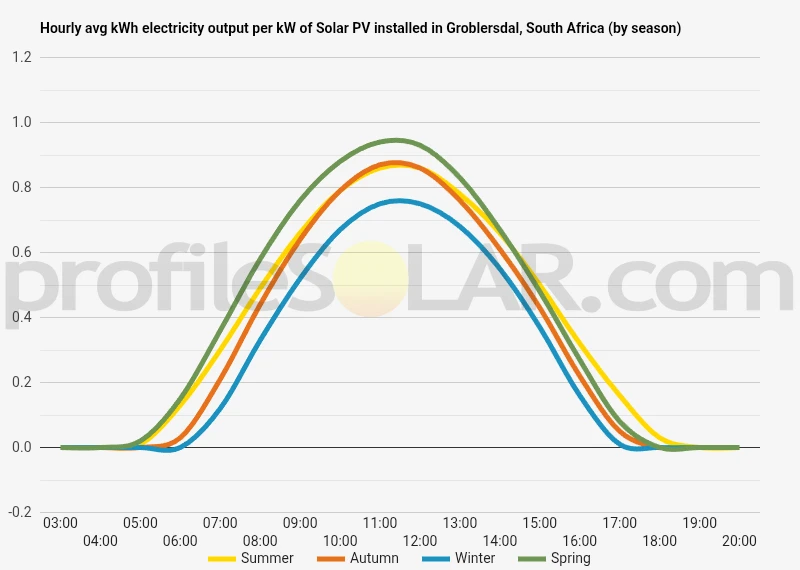

Solar output per kW of installed solar PV by season in Groblersdal

Seasonal solar PV output for Latitude: -25.15, Longitude: 29.3833 (Groblersdal, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Groblersdal, South Africa

To maximize your solar PV system's energy output in Groblersdal, South Africa (Lat/Long -25.15, 29.3833) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Groblersdal, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Groblersdal, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	31° North in Autumn	41° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Groblersdal, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Groblersdal, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Groblersdal, South Africa

Topography Around Groblersdal

Groblersdal sits in the Limpopo Province of South Africa, positioned within the Bushveld Complex region. The town is located in a relatively flat to gently undulating landscape characterized by wide open plains and scattered low hills. The terrain consists primarily of grassland and savanna, with elevations ranging from approximately 1,000 to 1,200 meters above sea level. The area forms part of the greater Sekhukhune District, where the topography is generally favorable for large-scale development projects.

The landscape around Groblersdal features broad valleys and gentle slopes, with the Olifants River flowing through the region from west to east. The river valley creates some variation in the otherwise relatively uniform terrain. To the north and south of the town, the land rises gradually into low ridges and kopjes (small hills), but these elevations are modest and do not create significant topographical barriers.

The geology of the area is dominated by igneous rocks from the Bushveld Complex, which has created generally stable ground conditions. The soil is typically shallow to medium depth, overlying the underlying rock formations. Vegetation consists mainly of mixed bushveld with scattered acacia trees and grasslands, particularly in areas that have been used for agriculture or grazing.

Areas Most Suited for Large-Scale Solar PV

The flat to gently rolling terrain immediately surrounding Groblersdal presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie to the east and southeast of the town, where extensive flat plains stretch for several kilometers with minimal topographical obstacles. These areas offer the advantage of relatively uniform ground conditions that would minimize earthworks and grading requirements during construction.

The western approaches to Groblersdal also show strong potential, particularly in the areas between the town and the Olifants River. While this region includes some gentle undulations, the slopes are generally less than 5 degrees, which remains well within acceptable parameters for solar installations. The proximity to existing agricultural lands in this area suggests that ground conditions are stable and accessible.

Areas to the north of Groblersdal, while still topographically suitable, feature slightly more varied terrain with occasional kopjes and rocky outcrops. However, between these natural features lie substantial flat areas that could accommodate large solar arrays. The key advantage of the northern areas is their distance from residential zones and existing agricultural operations.

The southern region presents a mixed landscape of gentle hills and valleys. While some slopes might require more careful site selection, the valley floors and plateau areas offer excellent potential for solar development. These areas benefit from good natural drainage and stable geological conditions inherited from the underlying Bushveld Complex formations.

Transportation access represents another crucial factor favoring solar development around Groblersdal. The presence of major roads including the N11 highway provides excellent connectivity for construction and maintenance activities. The relatively flat terrain means that access roads to potential solar sites would be straightforward to construct and maintain, reducing both initial development costs and ongoing operational expenses.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
