Harrismith, Free State, South Africa is a location with considerable potential for solar energy generation throughout the year. Located in the Southern Sub Tropics at latitude -28.2857 and longitude 29.136, this area receives consistent solar radiation that makes it suitable for photovoltaic (PV) installations.

Seasonal Solar Production

The solar energy production in Harrismith varies by season, with the highest output occurring during spring months. In spring, each kilowatt of installed solar capacity can generate approximately 6.41 kWh per day, making this the most productive season. Summer follows closely with 5.97 kWh per day, while autumn provides a respectable 5.51 kWh per day. Winter shows the lowest output at 4.36 kWh per day, though this is still substantial compared to many other locations globally.

The relatively small variation between seasons indicates that Harrismith enjoys fairly consistent solar conditions throughout the year, making it an excellent location for year-round solar energy production. Even during the least productive winter months, the output remains at a level that can contribute significantly to energy needs.

Optimal Panel Installation

For fixed solar panel installations in Harrismith, Free State, the ideal tilt angle to maximize year-round production is 27 degrees facing North. This specific angle has been calculated to optimize the capture of solar radiation throughout the year, taking into account the location's latitude and seasonal variations in sun position.

Environmental and Weather Considerations

Several environmental factors could potentially affect solar production in Harrismith:

• Dust accumulation: The semi-arid climate can lead to dust buildup on panels, reducing efficiency
• Seasonal thunderstorms: The region experiences summer thunderstorms that may temporarily reduce production
• Winter frost: Morning frost during winter months can temporarily impact early day production
• Occasional hail: The area experiences hailstorms that could potentially damage panels

Preventative Measures

To maximize solar energy production in Harrismith, Free State, several preventative measures can be implemented:

• Regular cleaning schedule: Implementing quarterly panel cleaning to remove dust accumulation
• Hail-resistant panels: Installing panels rated for hail impact resistance
• Elevated mounting: Positioning panels at sufficient height to minimize dust accumulation and improve airflow
• Quality inverters: Using inverters with high efficiency ratings even at lower irradiance levels for winter months
• Anti-reflective coatings: Selecting panels with coatings that reduce frost impact and enhance low-light performance

Overall, Harrismith presents an ideal location for solar PV installations with its consistent year-round solar radiation. With proper installation at the recommended 27-degree North tilt and appropriate preventative measures, a solar PV system in this location can provide reliable renewable energy throughout the year, with particularly excellent performance during spring and summer months.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

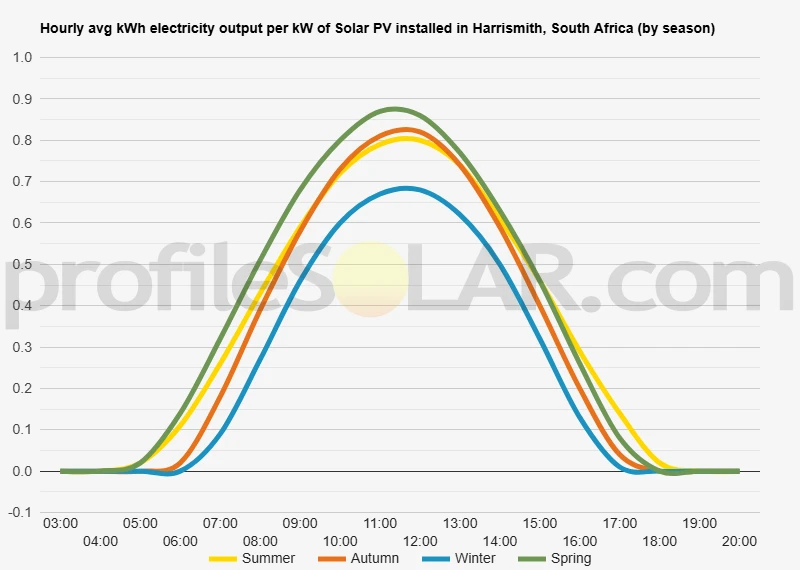

Solar output per kW of installed solar PV by season in Harrismith

Seasonal solar PV output for Latitude: -28.2857, Longitude: 29.136 (Harrismith, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° North in Harrismith, South Africa

To maximize your solar PV system's energy output in Harrismith, South Africa (Lat/Long -28.2857, 29.136) throughout the year, you should tilt your panels at an angle of 27° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Harrismith, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Harrismith, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	34° North in Autumn	44° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Harrismith, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Harrismith, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Harrismith, South Africa

The topography surrounding Harrismith, South Africa presents a dramatic landscape characterized by the northern reaches of the Drakensberg Mountains transitioning into the high-altitude grasslands of the Free State province. Situated at an elevation of approximately 1,700 meters above sea level, Harrismith occupies a strategic position at the intersection of major topographical features that define this region of South Africa.

Mountain Ranges and Plateaus

The eastern horizon near Harrismith is dominated by the imposing Drakensberg escarpment, with peaks rising dramatically from the surrounding plateau. This mountain range creates a significant topographical boundary that influences local weather patterns and drainage systems. To the south, the Platberg Mountain stands as a distinctive flat-topped landmark rising about 2,394 meters above sea level, forming a striking backdrop to the town itself. The area predominantly consists of rolling highlands and plateau terrain, characteristic of South Africa's eastern Free State. These elevated plains feature gentle undulations interspersed with occasional rocky outcrops and isolated hills. This high-altitude plateau environment contributes to the region's relatively cool climate despite its subtropical latitude.

Hydrological Features

The Wilge River and its tributaries have carved valleys through the landscape, creating natural drainage channels that flow northward eventually joining the Vaal River system. The nearby Sterkfontein Dam, one of South Africa's largest reservoirs, represents a significant modification to the natural topography and creates a substantial water body to the northwest of Harrismith. The region features numerous smaller streams and wetland areas, particularly in the lower-lying sections between the undulating hills. These water features have historically influenced settlement patterns and agricultural development in the area.

Vegetation and Land Cover

The natural vegetation consists primarily of high-altitude grasslands, locally known as "sourveld," which blanket the rolling terrain. These grasslands are punctuated by scattered rocky outcrops and occasional patches of indigenous trees and shrubs in protected valleys and along watercourses. The transition between grassland and the more densely vegetated slopes of the Drakensberg creates ecological diversity within relatively short distances.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development, the gently sloping highlands to the north and west of Harrismith offer particularly favorable topographical conditions. These areas combine several advantageous characteristics: The northern plains extending toward Bethlehem feature extensive tracts of relatively flat terrain with minimal shading obstacles. The gradual north-facing slopes in this region receive optimal solar exposure throughout the year in the Southern Hemisphere. The elevated nature of the plateau (approximately 1,600-1,800 meters) contributes to clearer atmospheric conditions with less particulate matter than lower elevations. The northwestern corridor between Harrismith and Warden also presents suitable topography for solar development. This area features open grassland with minimal variation in elevation, reducing construction challenges and maximizing consistent solar exposure across large installation footprints. Areas to avoid would include the steeper eastern slopes approaching the Drakensberg, where irregular terrain creates variable exposure and construction difficulties. Similarly, the immediate surroundings of Platberg Mountain experience seasonal shading effects that would reduce energy generation efficiency. The western plains benefit from stable geological conditions with good drainage characteristics, reducing flood risks and erosion concerns for large infrastructure projects. These areas also typically feature thinner vegetation cover requiring less clearing for development while still providing sufficient soil depth for secure mounting systems. From a topographical perspective, the optimal solar development zones would be concentrated on the higher, level portions of the plateau between 5-20 kilometers north and northwest of Harrismith, where the combination of elevation, aspect, and terrain regularity creates favorable conditions for maximizing solar energy capture through large-scale photovoltaic installations.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
