Solar Energy Potential in Kathu, South Africa

Kathu, South Africa, located in the Southern Sub Tropics at latitude -27.694 and longitude 23.0506, presents an excellent location for solar photovoltaic (PV) energy generation throughout the year. The seasonal electricity output shows significant potential across all four seasons, though with notable variations. The solar production in Kathu demonstrates a clear seasonal pattern. Spring offers the highest energy yield at 7.96 kWh per day for each kilowatt of installed capacity, closely followed by summer at 7.61 kWh/day. Autumn provides a moderate 6.00 kWh/day, while winter shows the lowest but still respectable output of 4.85 kWh/day per installed kilowatt.

Seasonal Variations and Optimal Generation Periods

The most productive periods for solar generation in Kathu are clearly spring and summer (September through February in the Southern Hemisphere), when daily outputs exceed 7.5 kWh per installed kilowatt. These months offer ideal conditions for maximizing solar energy harvesting, with abundant sunshine and favorable sun angles. Autumn represents a transition period with good but declining solar potential. Winter, while showing the lowest output, still provides nearly 5 kWh daily per kilowatt installed, which remains viable for energy production—many locations worldwide would consider this a respectable output even for better seasons.

Optimal Panel Installation

For fixed solar panel installations in Kathu, the ideal tilt angle to maximize year-round energy production is 25 degrees facing North. This specific angle has been calculated based on the site's latitude and seasonal solar patterns, accounting for Earth's elliptical orbit and weighted by the daily PV potential at this location.

Environmental and Weather Considerations

Kathu's location in the Northern Cape province presents some environmental factors that could affect solar production:

• Dust accumulation: The semi-arid environment can lead to dust buildup on panels, potentially reducing efficiency by 10-30% if not addressed.
• Occasional extreme heat: Very high temperatures can slightly reduce PV panel efficiency, though modern panels are designed to handle these conditions.
• Seasonal rainfall patterns: The region experiences distinct wet and dry seasons, with the dry season potentially exacerbating dust issues.

Preventative measures to optimize production include installing automated or regular manual cleaning systems for dust removal, using panels with good heat tolerance ratings, and considering tracking systems rather than fixed installations for increased yield (though at higher cost). Additionally, slightly increasing the tilt angle beyond the optimal 25 degrees can help with natural dust shedding during occasional rainfall events. Overall, Kathu represents a premier location for solar PV deployment, with excellent year-round generation potential despite some seasonal variations and manageable environmental challenges.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

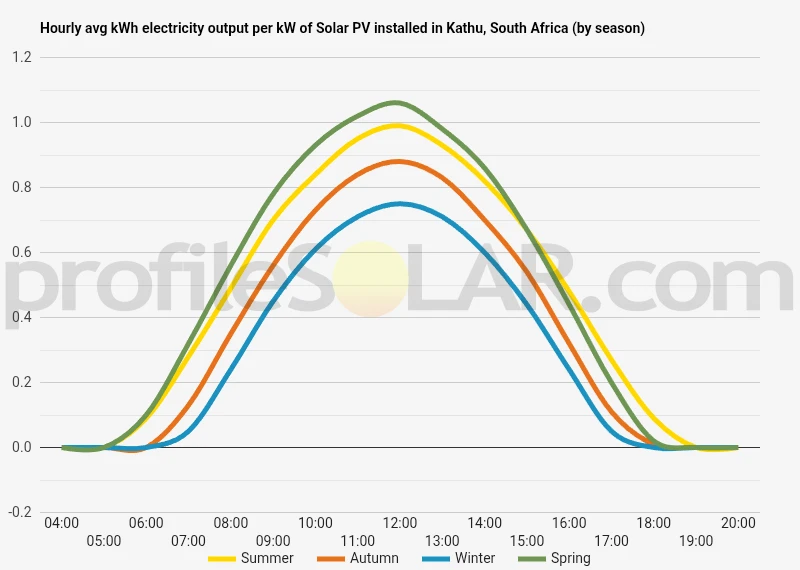

Solar output per kW of installed solar PV by season in Kathu

Seasonal solar PV output for Latitude: -27.694, Longitude: 23.0506 (Kathu, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Kathu, South Africa

To maximize your solar PV system's energy output in Kathu, South Africa (Lat/Long -27.694, 23.0506) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kathu, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kathu, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	33° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kathu, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kathu, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kathu, South Africa

The topography around Kathu, located in South Africa's Northern Cape Province, is characterized by relatively flat terrain with gentle undulations typical of the Kalahari Basin. Situated at an elevation of approximately 1,230 meters above sea level, Kathu exists within a semi-arid landscape that gradually transitions from the Kalahari Desert in the north to the Ghaap Plateau in the south. The surrounding area features predominantly sandy soils with scattered vegetation consisting of hardy grasses, shrubs, and acacia trees adapted to the region's limited rainfall.

Landscape Features

The broader region around Kathu presents a generally open landscape with excellent horizontal visibility extending for many kilometers in all directions. Unlike mountainous regions elsewhere in South Africa, this area lacks significant topographic barriers or deep valleys that might cast shadows or create microclimates. The gentle slopes that do exist typically have gradients of less than 5 degrees, making the terrain highly accessible for development projects. To the west of Kathu lie the expansive plains of the Kalahari, while to the east, the landscape gradually rises toward the Ghaap Plateau, which forms a modest escarpment marking the transition to higher elevations. Small seasonal drainage channels known locally as "riviere" occasionally cross the landscape, remaining dry for most of the year but potentially carrying water during rare heavy rainfall events.

Ideal Areas for Solar PV Development

The most suitable areas for large-scale solar photovoltaic development near Kathu would be the flat, open plains located primarily to the west and southwest of the town. These areas combine several advantageous characteristics: The flat terrain minimizes earthworks requirements during construction and reduces the complexity of mounting structures. The minimal vegetation cover reduces environmental impact and site preparation costs. The sandy soils provide reasonable drainage while still offering adequate stability for foundations. Additionally, these areas have minimal competing land uses beyond sparse grazing. Particularly promising are the extensive plains between Kathu and Olifantshoek to the southwest, where large tracts of relatively uniform, flat land extend for many kilometers. These areas benefit from minimal topographic shading and good accessibility via the existing road network, including proximity to the N14 national highway. Areas to potentially avoid include the seasonal drainage channels and any locations with denser vegetation, particularly to the north where larger acacia trees become more common. The eastern areas approaching the Ghaap Plateau, while still suitable, may present slightly more variable terrain that could marginally increase development costs. The region's geology is generally favorable for solar development, with stable bedrock at reasonable depths and minimal risk of subsidence. The combination of topographic and geological conditions makes the Kathu region one of South Africa's premier locations for utility-scale solar energy development, a fact already recognized by developers who have established several major solar facilities in the surrounding area.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
