Katlehong, Gauteng, South Africa presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the Southern Sub Tropics at coordinates -26.3389, 28.1462, this area demonstrates consistently strong solar energy potential across all seasons.

Seasonal Solar Energy Production

The solar energy output varies significantly throughout the year, with spring delivering the highest production at 7.03 kWh per day per kW of installed solar capacity. Summer follows closely with 6.30 kWh/day, while autumn maintains good production levels at 5.75 kWh/day. Winter shows the lowest output at 4.80 kWh/day per kW, though this still represents respectable solar generation potential. Spring emerges as the ideal season for solar energy generation at this location, likely due to optimal sun angles combined with clear atmospheric conditions. The substantial difference between spring and winter production (approximately 46% higher in spring) indicates the importance of seasonal planning for solar installations.

Optimal Panel Configuration

For maximum year-round energy production at Katlehong, Gauteng, solar panels should be installed at a fixed tilt angle of 25 degrees facing north. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles according to actual solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in the Katlehong area:

• Dust and Air Quality: The location's proximity to Johannesburg's industrial areas and mining activities can result in dust accumulation on solar panels, reducing efficiency
• Hail Storms: The highveld region experiences occasional severe thunderstorms with hail during summer months, which can damage solar panels
• Winter Cloud Cover: Increased cloud cover during winter months contributes to the reduced solar output during this season

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented: Regular cleaning schedules are essential, with panels requiring washing every 2-4 weeks during dusty periods. Installing panels with easy access for maintenance will facilitate this process. Consider automated cleaning systems for larger installations to maintain optimal efficiency. Hail protection can be addressed through the selection of panels with tempered glass rated for impact resistance and the installation of hail guards or protective screens during severe weather seasons. Comprehensive insurance coverage should also be considered for installations in this region. Panel positioning should account for local wind patterns to minimize dust accumulation, and adequate spacing between panel rows will improve air circulation and reduce overheating during hot summer months. Despite these environmental considerations, Katlehong remains an excellent location for solar energy generation, with the benefits far outweighing the challenges when proper installation and maintenance practices are followed.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

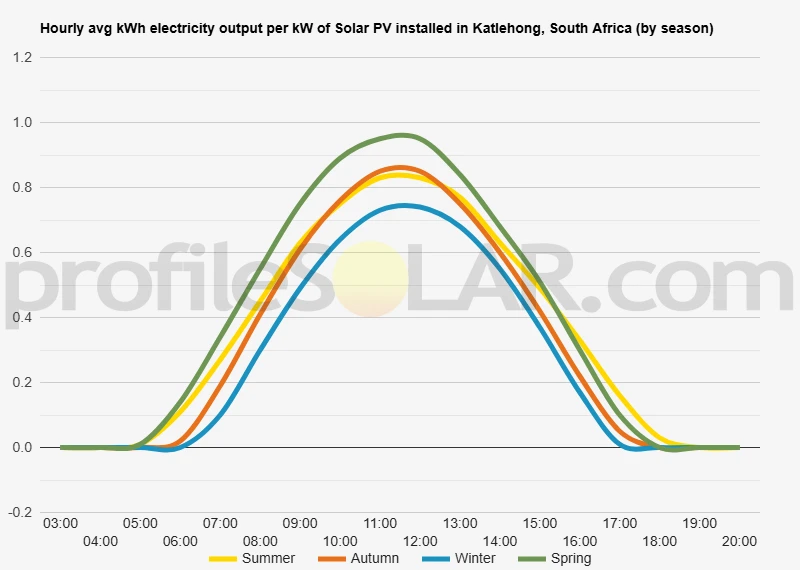

Solar output per kW of installed solar PV by season in Katlehong

Seasonal solar PV output for Latitude: -26.3389, Longitude: 28.1462 (Katlehong, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Katlehong, South Africa

To maximize your solar PV system's energy output in Katlehong, South Africa (Lat/Long -26.3389, 28.1462) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Katlehong, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Katlehong, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Katlehong, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Katlehong, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Katlehong, South Africa

Topographical Features of Katlehong

Katlehong sits on the Highveld plateau of South Africa, positioned at an elevation of approximately 1,600 metres above sea level. This township, located southeast of Johannesburg in Gauteng Province, occupies relatively flat to gently undulating terrain that characterizes much of the East Rand region. The landscape consists primarily of grassland plains with occasional low ridges and shallow valleys carved by seasonal streams and tributaries of the Blesbokspruit river system. The area experiences a typical Highveld topography with broad, open spaces interrupted by mining-related features including mine dumps, tailings facilities, and rehabilitated mining areas. These artificial elevations, legacy features from decades of gold mining activity, create a distinctive undulating landscape across the broader region. The natural drainage patterns flow generally eastward toward the Vaal River system, creating gentle slopes and occasional wetland areas during the rainy season.

Terrain Characteristics for Solar Development

The relatively flat terrain around Katlehong provides favorable conditions for large-scale solar photovoltaic installations. The gentle gradients across most of the landscape minimize the need for extensive earthworks or complex foundation systems that would be required in more mountainous regions. The open grassland areas offer excellent accessibility for construction vehicles and maintenance equipment, while the stable geological conditions of the Highveld provide solid foundations for solar mounting systems. However, the presence of numerous mine workings, both active and abandoned, creates certain constraints for development. Underground mine workings can cause ground instability, while surface mining operations and their associated infrastructure occupy significant portions of potentially suitable land. Environmental rehabilitation requirements for former mining sites may also influence development timelines and costs.

Optimal Areas for Solar Installations

The most promising locations for large-scale solar development lie in the agricultural and undeveloped grassland areas extending eastward and southward from Katlehong toward Springs and Nigel. These areas combine favorable topographical conditions with lower population densities and fewer competing land uses. The terrain remains consistently flat to gently rolling, providing ideal conditions for solar panel arrays while maintaining good access to existing electrical grid infrastructure. Areas north of Katlehong, toward Boksburg and Benoni, also present suitable topographical conditions, though urban development and industrial activities may limit available land parcels. The western approaches toward Alberton feature similar favorable terrain characteristics, with the added advantage of proximity to major electrical transmission corridors that serve the greater Johannesburg metropolitan area. The region's elevation provides additional benefits for solar installations, as the thinner atmosphere at higher altitudes can enhance photovoltaic performance. The open landscape also ensures minimal shading from natural features, while the predominant grassland vegetation requires relatively simple clearing procedures compared to forested or heavily developed areas.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
