Kriel, Mpumalanga, South Africa presents a highly favorable location for year-round solar PV energy generation, with consistently strong performance across all seasons that makes it an excellent choice for solar installations.

Seasonal Solar Performance

The solar energy output at Kriel demonstrates impressive consistency throughout the year. Spring emerges as the peak season with 6.76kWh per day per kW of installed solar capacity, closely followed by summer at 6.26kWh per day. Even during the lower-performing seasons, autumn maintains solid output at 5.76kWh per day, while winter, though the weakest season, still delivers a respectable 4.71kWh per day. This seasonal variation of only about 2kWh between peak and minimum performance indicates exceptional year-round reliability for solar energy generation. The relatively modest winter dip means solar installations can maintain economically viable production even during the traditionally challenging months.

Optimal Installation Configuration

For maximum year-round energy production at Kriel, Mpumalanga, solar panels should be installed at a fixed tilt angle of 25 degrees facing north. This angle has been calculated to optimize total annual output by accounting for the sun's varying position throughout the year and the location's specific latitude in the Southern Sub Tropics.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at Kriel, Mpumalanga, though the strong baseline performance suggests these are manageable challenges:

• Dust and Particulate Matter: The region's proximity to coal mining and industrial activities may result in dust accumulation on panels, reducing light transmission and energy output
• Seasonal Rainfall Patterns: While beneficial for natural panel cleaning, irregular rainfall distribution could lead to extended periods of dust buildup
• High Summer Temperatures: Extreme heat can reduce panel efficiency, as solar cells perform less efficiently at very high temperatures
• Potential Hail Events: The subtropical climate may occasionally produce severe weather including hail, which could damage panels

Preventative Measures for Optimal Performance

To maximize energy production and protect your solar investment at Kriel, Mpumalanga, several preventative strategies should be implemented. Regular cleaning schedules become particularly important, with panels requiring washing every 4-6 weeks during dry periods to remove dust accumulation. Installing panels with adequate ventilation spacing underneath helps combat efficiency losses from high temperatures by allowing better air circulation. Choosing panels with tempered glass and robust mounting systems provides protection against potential hail damage. Consider installing monitoring systems that can detect performance drops, alerting you to cleaning needs or potential issues before they significantly impact energy production. The installation should also incorporate proper drainage to prevent water pooling and ensure that cleaning water can flow away effectively. Given the industrial environment, selecting panels with anti-soiling coatings can help reduce dust adhesion and make cleaning more effective. Despite these considerations, Kriel's strong solar resource makes it an excellent location for solar PV installations, with the consistent high output levels throughout the year providing excellent return on investment potential.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

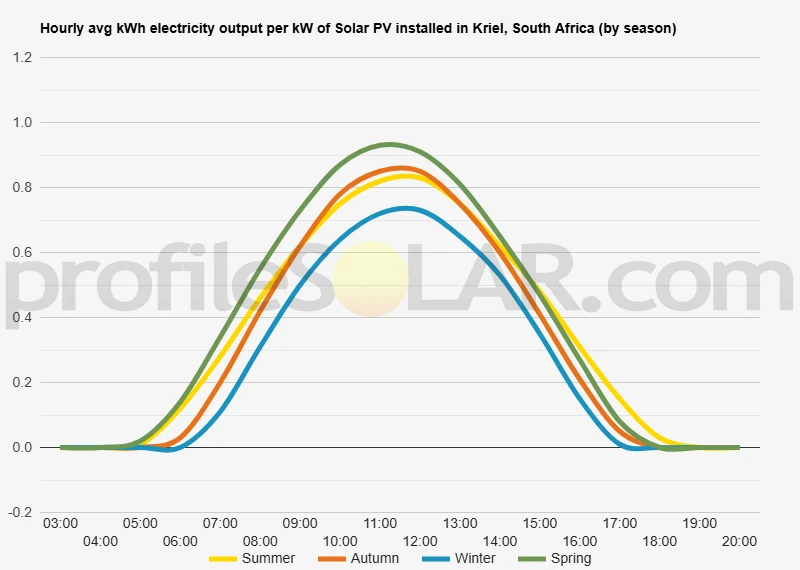

Solar output per kW of installed solar PV by season in Kriel

Seasonal solar PV output for Latitude: -26.2645, Longitude: 29.2316 (Kriel, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Kriel, South Africa

To maximize your solar PV system's energy output in Kriel, South Africa (Lat/Long -26.2645, 29.2316) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kriel, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kriel, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kriel, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kriel, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kriel, South Africa

Topographical Features of the Kriel Region

The area surrounding Kriel in South Africa's Mpumalanga Province is characterized by relatively gentle, undulating terrain typical of the Highveld plateau. The landscape consists primarily of rolling grasslands with gradual elevation changes rather than steep hills or dramatic topographical variations. This region sits at a moderate altitude on the interior plateau, creating a largely open environment with expansive views across the countryside.

The immediate vicinity of Kriel features predominantly flat to gently sloping terrain, punctuated by low ridges and shallow valleys. These modest elevation changes create natural drainage patterns without presenting significant obstacles to development. The area's coal mining heritage has also resulted in some artificially modified landscapes, including rehabilitated mining areas that have created additional flat surfaces suitable for various land uses.

Vegetation in the region consists mainly of grassland with scattered clusters of trees, particularly along watercourses and in protected areas. The open nature of the landscape means that natural shading from vegetation is minimal across most of the terrain, and the relatively sparse tree coverage allows for unobstructed exposure to sunlight throughout much of the area.

Optimal Areas for Large-Scale Solar Development

The topographical characteristics around Kriel present several advantages for large-scale solar photovoltaic installations. The most suitable areas would be the extensive flat and gently sloping grasslands that dominate the landscape to the north and west of the town. These areas offer the ideal combination of minimal grading requirements, good accessibility, and unobstructed solar exposure.

The rehabilitated mining areas present particularly attractive opportunities for solar development. These sites have already undergone significant land modification and often feature large, level surfaces that would require minimal additional preparation for solar panel installation. The existing infrastructure associated with former mining operations, including access roads and electrical transmission connections, could potentially be adapted to support solar facilities.

Areas with gentle south-facing slopes would be especially well-suited for solar installations, as they provide optimal panel orientation for maximum energy capture in the Southern Hemisphere. The rolling nature of much of the terrain around Kriel creates numerous such opportunities where panels can be positioned to take advantage of favorable topographical angles.

The region's relatively low rainfall and stable geological conditions further enhance its suitability for solar development. The grassland areas experience minimal soil erosion issues, and the underlying geology provides stable foundations for large-scale installations. The open nature of the landscape also facilitates efficient maintenance access and reduces potential complications from vegetation management around solar arrays.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
