Solar PV Analysis of Krugersdorp, South Africa
Krugersdorp, Gauteng, South Africa, located at latitude -26.0977 and longitude 27.768, offers a promising environment for solar PV energy generation throughout the year. This location in the Southern Sub Tropics experiences varying levels of solar potential across different seasons, making it an interesting case study for solar energy production.
Seasonal Solar Performance
The solar potential in Krugersdorp demonstrates significant fluctuations across the four meteorological seasons. Spring emerges as the most productive season, with an impressive output of 7.23 kWh per day for each kilowatt of installed solar capacity. Summer follows closely behind at 6.38 kWh/day, while autumn maintains a respectable 5.81 kWh/day. Winter, as expected, shows the lowest output at 4.80 kWh/day, but still offers considerable energy generation potential.
Optimal Times for Solar Generation
The data suggests that the ideal period for solar energy production in Krugersdorp spans from early spring through late summer. This extended period of high solar potential makes the location particularly suitable for year-round solar energy generation, with only a moderate dip in production during the winter months.
Panel Tilt Optimization
For fixed panel installations in Krugersdorp, Gauteng, the ideal tilt angle to maximize year-round solar production is 25 degrees facing North. This optimal angle takes into account the location's latitude and the sun's position throughout the year, ensuring the panels capture the maximum amount of sunlight possible across all seasons.
Environmental Considerations
While Krugersdorp generally offers favorable conditions for solar energy production, there are a few environmental factors to consider:
- Dust and pollution: Krugersdorp's proximity to mining areas may lead to increased dust in the air, which can accumulate on solar panels and reduce their efficiency.
- Occasional hailstorms: The region can experience severe weather, including hailstorms, which may pose a risk to solar panel integrity.
Preventative Measures
To mitigate these potential issues and ensure optimal solar energy production, consider implementing the following measures:
- Regular cleaning: Establish a routine cleaning schedule for the solar panels to remove dust and debris, maintaining their efficiency.
- Protective coverings: Install hail-resistant covers or shields for the solar panels to protect them during severe weather events.
By addressing these environmental factors and implementing appropriate preventative measures, solar installations in Krugersdorp can maximize their energy production potential and maintain long-term efficiency.
Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in South Africa by location

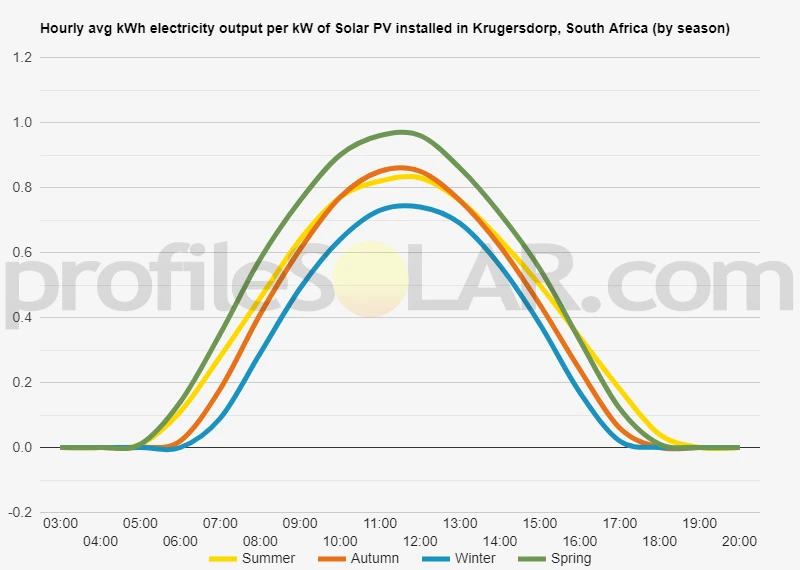

Solar output per kW of installed solar PV by season in Krugersdorp
Seasonal solar PV output for Latitude: -26.0977, Longitude: 27.768 (Krugersdorp, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 25° North in Krugersdorp, South Africa
To maximize your solar PV system's energy output in Krugersdorp, South Africa (Lat/Long -26.0977, 27.768) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Krugersdorp, South Africa
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Krugersdorp, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 10° North in Summer | 32° North in Autumn | 42° North in Winter | 20° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Krugersdorp, South Africa
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Krugersdorp, South Africa.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Krugersdorp, South Africa
The topography around Krugersdorp, South Africa, is characterized by a mix of gently rolling hills and relatively flat plains. This area is part of the Highveld region, which is known for its elevated plateau landscape. The terrain generally slopes downward from east to west, with elevations ranging from about 1,600 to 1,800 meters above sea level.
To the north and east of Krugersdorp, you'll find slightly more rugged terrain with some scattered rocky outcrops and small ridges. These features are remnants of ancient geological formations that have weathered over time. The southern and western parts of the area tend to be flatter, with wide open spaces that gradually descend towards the Vaal River basin.
The region experiences a subtropical highland climate, with warm summers and mild winters. This climate, combined with the area's topography, makes it potentially suitable for large-scale solar PV installations.
Areas Suitable for Large-Scale Solar PV
When considering locations for large-scale solar PV installations near Krugersdorp, the following areas would be most suitable:
1. The flatter regions to the south and west of Krugersdorp offer ideal conditions for solar farms. These areas provide ample space for large arrays of solar panels and have minimal shading from natural features. The gentle slopes in these directions also allow for optimal panel orientation towards the sun.
2. The expansive agricultural lands surrounding Krugersdorp, particularly those that are less productive or fallow, could be repurposed for solar energy production. These areas often have existing road access and are already cleared of vegetation, reducing the environmental impact of installation.
3. The elevated plains of the Highveld region, extending outwards from Krugersdorp, receive abundant sunshine throughout the year. While some areas may require minor earthworks to create level surfaces for panel installation, the high altitude and clear skies make these locations excellent candidates for solar PV projects.
It's important to note that while the topography is generally favorable, other factors such as proximity to power infrastructure, land ownership, and environmental considerations would also need to be taken into account when planning large-scale solar PV installations in this region.
South Africa solar PV Stats as a country
South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in South Africa?
Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
