Lichtenburg, North West, South Africa, located at latitude -26.1516 and longitude 26.1707, offers a favorable environment for solar PV energy generation throughout the year. This location in the Southern Sub Tropics experiences significant solar potential across all seasons, with some variations in output.

Seasonal Solar Performance

The solar PV output in Lichtenburg demonstrates a consistent pattern throughout the year. Spring emerges as the most productive season, with an impressive 7.59 kWh/day per kW of installed solar capacity. Summer follows closely with 6.66 kWh/day, while autumn sees a slight decrease to 5.80 kWh/day. Winter, as expected, shows the lowest output at 4.78 kWh/day, but still maintains a respectable level of energy production.

Optimal Panel Tilt

For fixed panel installations in Lichtenburg, North West, the ideal tilt angle to maximize year-round solar production is 24 degrees facing North. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the location's latitude and the Earth's elliptical orbit.

Best Times for Solar Generation

The most ideal times for solar energy generation in Lichtenburg are during spring and summer. These seasons offer longer daylight hours and more direct sunlight, resulting in higher energy output. However, the relatively high production levels in autumn and winter indicate that solar PV remains a viable energy source year-round in this location.

Environmental and Weather Considerations

While Lichtenburg generally provides favorable conditions for solar energy production, there are a few factors to consider:

• Dust storms: The semi-arid climate of the region can lead to occasional dust storms, which may temporarily reduce panel efficiency.
• Seasonal rainfall: The area experiences a rainy season, typically during summer months, which could briefly impact solar output.

To mitigate these factors, regular cleaning and maintenance of solar panels is essential. Additionally, installing panels at the optimal tilt angle helps maximize exposure to sunlight and promotes natural cleaning during rainfall. Considering the overall high solar potential in Lichtenburg, North West, these environmental factors do not significantly impede the viability of solar PV installations in the area.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

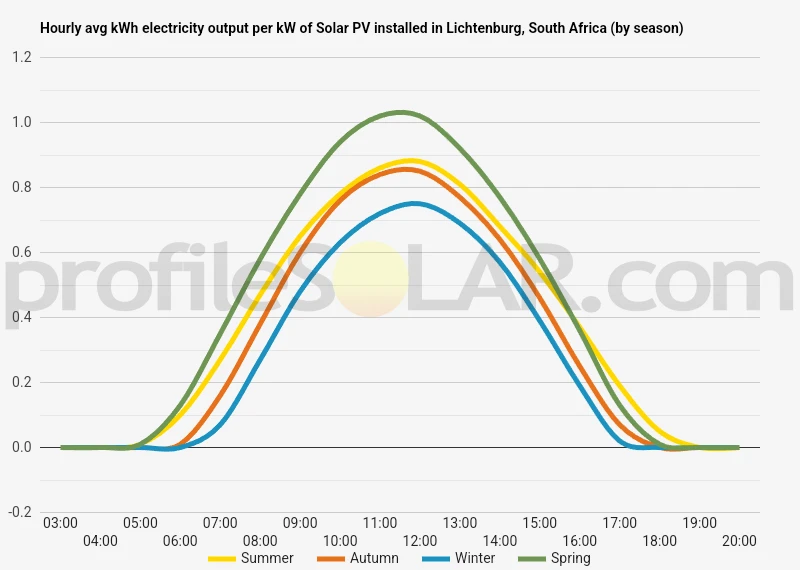

Solar output per kW of installed solar PV by season in Lichtenburg

Seasonal solar PV output for Latitude: -26.1516, Longitude: 26.1707 (Lichtenburg, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Lichtenburg, South Africa

To maximize your solar PV system's energy output in Lichtenburg, South Africa (Lat/Long -26.1516, 26.1707) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lichtenburg, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lichtenburg, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lichtenburg, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lichtenburg, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lichtenburg, South Africa

The topography around Lichtenburg, South Africa, is characterized by gently rolling plains and flat grasslands typical of the North West Province. This area, known as the Highveld, sits at an elevation of approximately 1,500 meters (4,900 feet) above sea level. The landscape is predominantly open and expansive, with few significant hills or mountains to interrupt the horizon. The region surrounding Lichtenburg features a mix of agricultural land and natural vegetation. Large swaths of the area are used for farming, particularly for growing crops like maize and sunflowers. Interspersed among these cultivated fields are patches of native grassland and scattered trees, primarily acacia species adapted to the semi-arid climate.

Suitability for Large-Scale Solar PV

The areas near Lichtenburg offer several advantages for large-scale solar photovoltaic (PV) installations. The relatively flat terrain and open spaces provide ample room for extensive solar arrays without the need for significant land preparation or clearing. This topography also minimizes shading issues that can reduce the efficiency of solar panels. The regions to the west and southwest of Lichtenburg are particularly well-suited for solar PV projects. These areas receive high levels of solar radiation throughout the year due to their location in the sun-drenched interior of South Africa. The lack of major geographical features that could obstruct sunlight ensures consistent exposure for potential solar installations. Furthermore, the semi-arid climate of the region means there are fewer cloudy days compared to coastal areas, maximizing the potential for solar energy generation. The existing agricultural land use in the area could potentially be combined with solar farming, a practice known as agrivoltaics, which can provide dual benefits of energy production and crop cultivation. It's worth noting that while the topography is favorable, other factors such as proximity to power infrastructure, environmental considerations, and local regulations would also need to be taken into account when planning large-scale solar PV projects in the vicinity of Lichtenburg.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
