Louis Trichardt, Limpopo, South Africa, situated in the tropical region, offers a promising location for solar energy generation. The consistent sunlight throughout the year, typical of tropical climates, provides a favorable environment for solar PV installations.

Seasonal Solar Performance

The solar energy output at this location varies across seasons, with spring and summer being the most productive periods. In spring, panels can generate an impressive 6.48 kWh per day for each kW of installed capacity. Summer follows closely with 6.31 kWh/day. Autumn sees a slight decrease to 5.83 kWh/day, while winter experiences the lowest output at 4.76 kWh/day.

Despite the winter dip, the overall year-round performance is quite strong. The relatively small variation between seasons indicates a stable and reliable solar energy source throughout the year.

Optimal Panel Positioning

For fixed panel installations in Louis Trichardt, Limpopo, the ideal tilt angle is 22 degrees facing North. This angle maximizes the total year-round energy production, taking into account the location's latitude and the sun's path across the sky throughout the year.

Environmental Considerations

While Louis Trichardt generally offers favorable conditions for solar energy production, there are a few environmental factors to consider:

1. Dust and pollen: The region's dry seasons may lead to dust accumulation on panels, potentially reducing efficiency. Regular cleaning can mitigate this issue.

2. Occasional heavy rainfall: During wet seasons, brief periods of heavy cloud cover might temporarily reduce solar output. However, this is typically offset by the overall high solar potential in the area.

To maximize energy production, consider implementing these preventative measures:

• Install a panel cleaning system or schedule regular manual cleaning
• Use high-quality, weather-resistant panels designed for tropical climates
• Implement a robust mounting system to withstand occasional strong winds

Overall, Louis Trichardt presents an excellent location for solar PV installations, with its tropical climate providing consistent sunlight and relatively minor seasonal variations in energy output.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

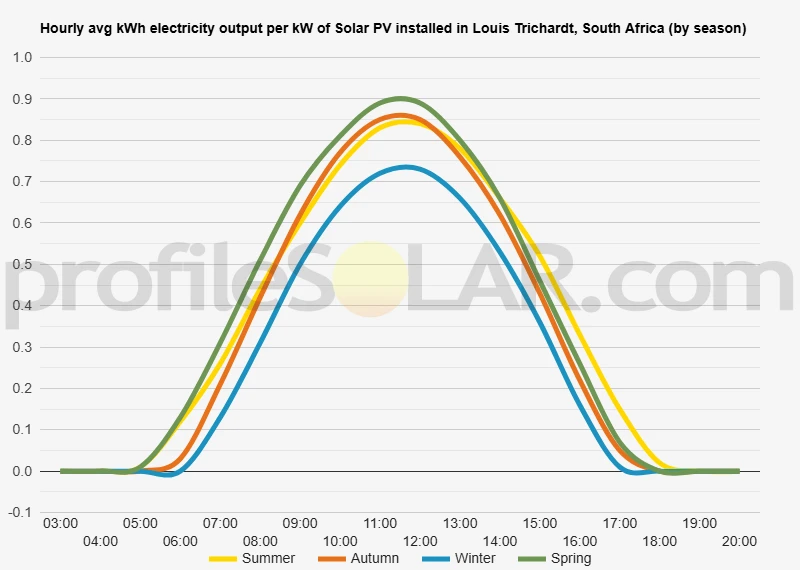

Solar output per kW of installed solar PV by season in Louis Trichardt

Seasonal solar PV output for Latitude: -23.0502827, Longitude: 29.9170356 (Louis Trichardt, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Louis Trichardt, South Africa

To maximize your solar PV system's energy output in Louis Trichardt, South Africa (Lat/Long -23.0502827, 29.9170356) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Louis Trichardt, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Louis Trichardt, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Louis Trichardt, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Louis Trichardt, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Louis Trichardt, South Africa

Louis Trichardt, a town in South Africa's Limpopo Province, is situated in a diverse and picturesque landscape. The area surrounding the town is characterized by a mix of flat plains and rolling hills, with the majestic Soutpansberg mountain range dominating the northern horizon. This mountain range, which extends for about 130 kilometers from east to west, creates a dramatic backdrop for the town and influences the local topography. To the south of Louis Trichardt, the terrain gradually flattens out into expansive savanna plains. These plains are dotted with scattered trees and shrubs, typical of the bushveld ecosystem. The vegetation becomes denser as one moves closer to the foothills of the Soutpansberg, creating a transitional zone between the plains and the mountains.

Potential for Solar PV Development

The areas surrounding Louis Trichardt offer several promising locations for large-scale solar photovoltaic (PV) installations. The flat plains to the south of the town are particularly well-suited for this purpose. These areas receive ample sunlight throughout the year, with minimal shading from geographical features or vegetation. The open nature of the terrain also allows for easy access and construction of solar facilities. Another potentially suitable area for solar PV development lies to the east and west of Louis Trichardt, where gently undulating hills provide slightly elevated positions. These locations could offer good exposure to sunlight while potentially reducing the impact of dust and sand on the solar panels. However, it's important to note that any large-scale solar PV project would need to consider factors beyond just topography. These include proximity to existing power infrastructure, environmental impact assessments, and local land use regulations. The areas closest to the Soutpansberg mountains, while scenic, may be less suitable due to potential shading and more complex terrain. In conclusion, the diverse topography around Louis Trichardt offers a range of possibilities for solar PV development, with the southern plains and gently rolling hills to the east and west being the most promising areas for large-scale installations.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
