Solar Energy Potential in Lynnwood Manor, South Africa

Lynnwood Manor, South Africa, located in the Southern Sub Tropics at latitude -25.7594 and longitude 28.282, presents an excellent location for solar PV energy generation throughout the year. The area receives consistent solar radiation across all seasons, making it highly suitable for photovoltaic installations. The seasonal electricity output from solar PV systems in this location shows strong performance year-round. Spring yields the highest production at 7.04 kWh per day for each kilowatt of installed capacity. Summer follows closely with 6.43 kWh/day, while autumn generates 5.85 kWh/day. Even during winter, the output remains substantial at 4.91 kWh/day per kilowatt installed.

Optimal Panel Installation

For fixed solar panel installations in Lynnwood Manor, the ideal tilt angle to maximize year-round energy production is 24 degrees facing North. This specific angle has been calculated to optimize solar capture throughout the year, accounting for the Earth's elliptical orbit and the location's position in the Southern Hemisphere.

Seasonal Considerations

Spring and summer represent peak production periods at this location, making March through December particularly advantageous for solar energy generation. Even during the winter months (June-August), the output remains relatively strong compared to many other global locations at similar latitudes.

Environmental and Weather Factors

Several environmental factors could potentially impact solar production in Lynnwood Manor:

• Dust and pollen accumulation, particularly during the dry season, can reduce panel efficiency by up to 10-15% if not regularly cleaned
• Occasional summer thunderstorms and hail, common in Gauteng province, pose a physical risk to solar installations
• Morning fog or mist, particularly in winter months, may slightly delay peak production hours

Preventative Measures

To maximize solar energy production in Lynnwood Manor, several preventative measures are recommended during installation and maintenance:

• Install hail-resistant panels with tempered glass that meet IEC 61215 standards for mechanical load resistance
• Implement automated cleaning systems or establish quarterly manual cleaning schedules
• Consider micro-inverter or power optimizer technology to minimize the impact of partial shading
• Ensure proper ventilation behind panels to reduce heat-related efficiency losses during summer months
• Install surge protection devices to safeguard against lightning strikes during thunderstorm season

With these considerations addressed, solar PV installations in Lynnwood Manor can expect excellent year-round performance with minimal seasonal fluctuation compared to many other global locations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

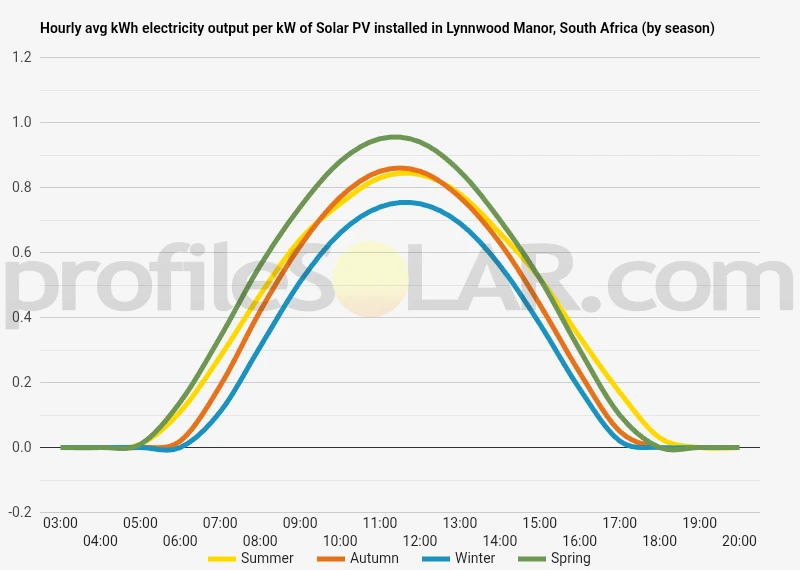

Solar output per kW of installed solar PV by season in Lynnwood Manor

Seasonal solar PV output for Latitude: -25.7594, Longitude: 28.282 (Lynnwood Manor, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Lynnwood Manor, South Africa

To maximize your solar PV system's energy output in Lynnwood Manor, South Africa (Lat/Long -25.7594, 28.282) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lynnwood Manor, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lynnwood Manor, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	31° North in Autumn	41° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lynnwood Manor, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lynnwood Manor, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lynnwood Manor, South Africa

Lynnwood Manor in Pretoria, South Africa sits within the northeastern suburbs of the city, nestled in the transitional zone between the Magaliesberg mountain range and the broader Highveld plateau. The topography around Lynnwood Manor features gently undulating terrain with modest elevation changes, characteristic of the greater Pretoria region. The area has an average elevation of approximately 1,350 meters above sea level, contributing to its temperate climate conditions. The landscape surrounding Lynnwood Manor is characterized by subtle hills and shallow valleys, with gradual slopes rather than steep inclines. This rolling terrain extends eastward toward the Bronberg ridge and northward to the more pronounced foothills of the Magaliesberg. To the south and west, the land becomes progressively flatter as it blends into the Highveld plateau that dominates much of Gauteng Province. Several small watercourses cut through the vicinity, including tributaries of the Moreleta Spruit, which have carved shallow drainage channels over time. These natural drainage features have influenced the local topography, creating gentle depressions and subtle ridgelines throughout the area.

Solar PV Potential in Surrounding Areas

For large-scale solar photovoltaic installations, several nearby areas present favorable conditions based on topographical considerations. The regions east and northeast of Lynnwood Manor, extending toward Bronkhorstspruit and Cullinan, offer particularly suitable terrain. These areas feature relatively flat, open landscapes with minimal shadowing from geographical features. The expansive plains southeast of Pretoria, moving toward Delmas and the broader Mpumalanga province, present excellent potential for solar development. This region combines favorable topography with substantial available land area, making it well-suited for utility-scale installations. The terrain here flattens considerably, providing large contiguous spaces with consistent solar exposure. Areas northeast of Pretoria, extending toward Hammanskraal and beyond to Bela-Bela (formerly Warmbaths), also offer promising conditions. The landscape here transitions to the Bushveld plateau with open, gradually sloping terrain that receives consistent solar radiation throughout the year. The northwestern corridor between Pretoria and Rustenburg contains several plateaus and elevated flat areas that would accommodate substantial solar arrays. While some sections feature more varied topography, numerous suitable sites exist with minimal shading concerns and good drainage characteristics. It's worth noting that while topography is favorable in many surrounding areas, other factors including grid connection proximity, land ownership patterns, environmental designations, and existing infrastructure will ultimately influence site selection for large-scale solar development. The generally modest terrain variations throughout the broader region mean that topographical constraints are less limiting than might be found in more mountainous parts of South Africa.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
