Mahikeng, North West, South Africa presents a very good location for year-round solar PV energy generation. Located in the Southern Sub Tropics at coordinates -25.8681, 25.6527, this area demonstrates consistently strong solar energy potential throughout all seasons.

Seasonal Solar Performance

The location shows excellent seasonal variation in solar output, with spring delivering the highest energy production at 7.71kWh per day per kW of installed solar capacity. Summer follows closely with 6.69kWh/day, while autumn maintains good production at 5.97kWh/day. Even during winter, the weakest season, the location still generates a respectable 5.01kWh/day per kW installed. Spring emerges as the ideal time for solar generation at this location, likely benefiting from optimal sun angles and clearer atmospheric conditions. The strong performance across all seasons makes this location highly suitable for consistent year-round solar energy production.

Optimal Panel Installation

For maximum year-round energy production at Mahikeng, North West, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for daily solar potential.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency at this location:

• Dust accumulation: The semi-arid climate typical of this region can lead to significant dust buildup on solar panels, reducing their efficiency
• Seasonal rainfall patterns: Extended dry periods may increase dust problems while intense seasonal rains could cause temporary shading from storm clouds
• Hail risk: Thunderstorms in the region occasionally produce hail that could damage solar panels
• High temperatures: Extreme summer heat can reduce panel efficiency

Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning systems: Install automated cleaning systems or establish routine manual cleaning schedules to remove dust buildup
• Hail-resistant panels: Choose solar panels rated for hail impact resistance and consider protective screening in high-risk areas
• Adequate ventilation: Ensure proper airflow around panels to reduce heat buildup and maintain efficiency during hot periods
• Quality mounting systems: Use robust mounting hardware designed to withstand strong winds and weather extremes

Despite these potential challenges, Mahikeng's consistently strong solar output across all seasons makes it an excellent location for solar PV installations when proper preventative measures are implemented.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

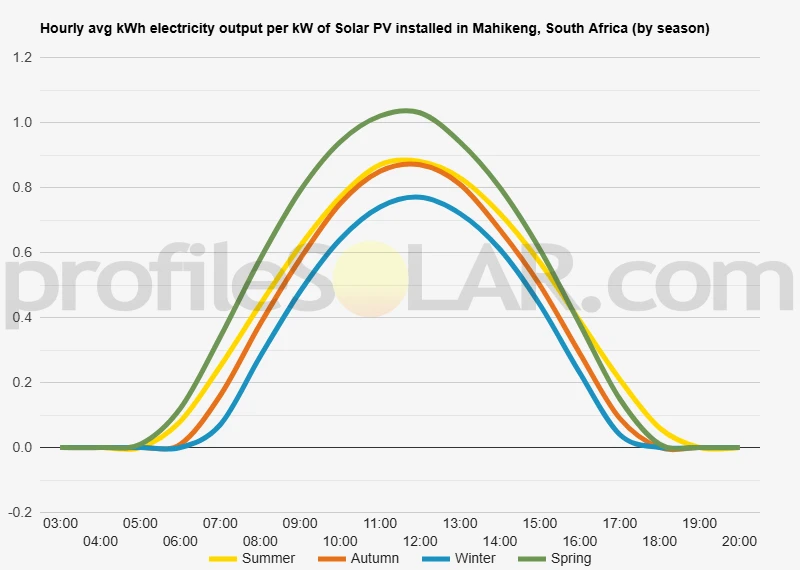

Solar output per kW of installed solar PV by season in Mahikeng

Seasonal solar PV output for Latitude: -25.8681, Longitude: 25.6527 (Mahikeng, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Mahikeng, South Africa

To maximize your solar PV system's energy output in Mahikeng, South Africa (Lat/Long -25.8681, 25.6527) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mahikeng, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mahikeng, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	41° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mahikeng, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mahikeng, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mahikeng, South Africa

Topographical Features Around Mahikeng

Mahikeng sits within the expansive North West Province of South Africa, positioned on relatively flat to gently undulating terrain that characterizes much of the interior plateau region. The city is located at an elevation of approximately 1,280 meters above sea level, within what geographers classify as part of the Highveld transitioning into the Bushveld complex. The surrounding landscape consists primarily of open grasslands interspersed with scattered acacia woodlands and thornveld vegetation.

The topography in the immediate vicinity of Mahikeng is generally favorable for development, with minimal steep gradients or significant elevation changes. Rolling hills and shallow valleys create a gently undulating surface that extends for considerable distances in all directions. The Molopo River system influences the local drainage patterns, creating some minor topographical variation as it meanders through the broader region, though the river itself lies some distance to the west and southwest of the city.

Rock outcrops and small kopjes (isolated hills) occasionally punctuate the landscape, but these features are relatively sparse and do not dominate the terrain. The underlying geology consists primarily of sedimentary rocks and dolerite intrusions, which have weathered to create generally stable ground conditions suitable for construction and infrastructure development.

Optimal Areas for Large-Scale Solar Development

The expansive areas to the north and northeast of Mahikeng present excellent opportunities for large-scale solar photovoltaic installations. These zones benefit from extensive flat to gently sloping terrain that extends uninterrupted across vast distances. The relatively sparse population density in these areas means that large tracts of land remain available for development without significant displacement concerns or competing land uses.

Southwest of the city, the terrain becomes increasingly suitable for solar development as the landscape opens into broad, flat expanses characteristic of the semi-arid Kalahari fringe. These areas offer the advantage of minimal shading from topographical features while maintaining good accessibility via existing road networks. The stable geological conditions in this region provide solid foundations for mounting systems and associated infrastructure.

Areas extending eastward toward the Pilanesberg region, while slightly more undulating, still contain numerous suitable sites for solar installations. The key advantage of this eastern zone lies in its proximity to existing electrical transmission infrastructure, which could facilitate grid connection for large-scale projects. However, developers would need to carefully select sites that avoid the more pronounced topographical variations found closer to the Pilanesberg complex.

The western approaches to Mahikeng, stretching toward the Botswana border, offer perhaps the most promising terrain for massive solar installations. This region features extensive flat plains with minimal vegetation cover and virtually no competing land uses over large areas. The consistent topography across this zone would allow for standardized installation techniques and efficient project scaling across multiple adjacent sites.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
