Solar Energy Potential in Mbekweni, Western Cape, South Africa

Mbekweni, Western Cape, South Africa, located in the Southern Sub Tropics, presents a generally favorable location for solar PV energy generation, though with significant seasonal variations. This assessment examines how suitable this specific location is for year-round solar energy production. The seasonal energy output from solar panels in Mbekweni shows a clear pattern. Summer months are exceptionally productive, generating approximately 9.00kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 7.20kWh/day. Energy production decreases considerably during autumn to 4.98kWh/day, while winter represents the lowest output period with just 3.49kWh/day per kilowatt installed.

Seasonal Variations and Optimal Installation

For maximum year-round energy production in Mbekweni, Western Cape, fixed solar panels should be installed at a tilt angle of 29 degrees facing North. This specific angle has been calculated to optimize annual energy capture based on the location's position in the Southern Hemisphere. The substantial difference between summer and winter production (nearly a 61% decrease from summer to winter) indicates that Mbekweni experiences significant seasonal solar resource variability. This means that supplementary energy sources or storage solutions might be necessary during the winter months when solar generation is at its lowest.

Environmental and Weather Considerations

Several environmental factors could potentially affect solar production in Mbekweni. Dust accumulation is a significant concern in this region, particularly during dry periods. Regular cleaning schedules should be implemented to maintain optimal panel efficiency. The area may also experience occasional severe weather events including hailstorms, which could damage solar panels. Installing hail-resistant panels with tempered glass and ensuring proper mounting systems can mitigate this risk. Wind-blown debris presents another challenge, as Mbekweni can experience strong seasonal winds. Installing wind deflectors and ensuring robust mounting systems can help protect the solar installation from wind damage. Temperature extremes might affect panel efficiency, as photovoltaic cell performance typically decreases at high temperatures. Selecting panels with good temperature coefficients and ensuring adequate airflow beneath the panels can help manage this issue. To maximize production throughout the year, a monitoring system is recommended to track performance and quickly identify any issues that may arise. Additionally, slightly oversizing the system to account for the significant winter production drop would help ensure more consistent energy availability year-round.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

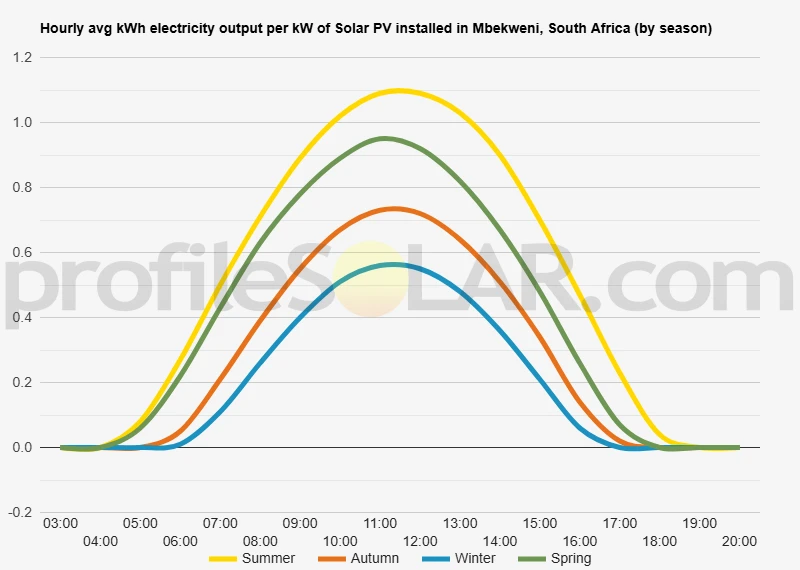

Solar output per kW of installed solar PV by season in Mbekweni

Seasonal solar PV output for Latitude: -33.685, Longitude: 18.9752 (Mbekweni, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Mbekweni, South Africa

To maximize your solar PV system's energy output in Mbekweni, South Africa (Lat/Long -33.685, 18.9752) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mbekweni, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mbekweni, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mbekweni, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mbekweni, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mbekweni, South Africa

The landscape surrounding Mbekweni in South Africa's Western Cape Province features a diverse topographical profile characterized primarily by gently undulating terrain. Situated approximately 60 kilometers northeast of Cape Town, Mbekweni lies within the Berg River Valley, nestled between several notable mountain ranges that define the region's geography. To the east of Mbekweni rise the imposing Drakenstein Mountains, part of the greater Cape Fold Belt system. These mountains create a dramatic backdrop with peaks reaching over 1,500 meters above sea level. The western horizon is dominated by the Paardeberg, a granite mountain that stands in stark contrast to the surrounding landscape. To the south, one can observe the distant outlines of the Simonsberg and Stellenbosch Mountains. The immediate vicinity of Mbekweni consists of relatively flat to gently sloping terrain, with the Berg River meandering through the valley. This river valley has created fertile alluvial plains that have historically supported agricultural activities, particularly vineyards and orchards that characterize much of the surrounding Paarl and Wellington areas.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, several areas near Mbekweni present favorable conditions. The most suitable locations would be the flat to gently sloping terrain to the north and northwest of Mbekweni. These areas benefit from minimal shadowing effects from the mountain ranges and offer expansive, uninterrupted spaces that could accommodate substantial solar arrays. The slightly elevated plains between Mbekweni and Wellington provide particularly promising sites. These locations feature well-drained soils, limited vegetation obstacles, and favorable orientation toward the sun's path. The northern aspects of these gentle slopes receive consistent solar exposure throughout the year, making them ideal candidates for solar development. Areas to avoid would include the eastern sections closer to the Drakenstein Mountains, as morning shadowing could reduce efficiency. Similarly, the immediate riverine areas along the Berg River present challenges due to potential flooding and higher humidity levels that might affect equipment longevity. The region's relatively low precipitation patterns, especially during summer months, further enhance the suitability for solar applications. The clear atmospheric conditions typical of this semi-arid climate zone contribute to excellent solar irradiance levels throughout much of the year. Land currently under marginal agricultural use between Mbekweni and the R44 highway presents a practical compromise between solar potential and land conservation concerns. These areas typically have existing infrastructure access, including roads and proximity to transmission lines, which would reduce development costs for large-scale solar installations while minimizing impacts on prime agricultural land or sensitive natural habitats.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
