Meyerton, Gauteng, South Africa: Solar Energy Potential

Meyerton, Gauteng, South Africa, located at latitude -26.5663 and longitude 28.0177 in the Southern Sub Tropics, offers excellent conditions for solar PV energy generation throughout the year, with some seasonal variations. Solar energy production in Meyerton demonstrates strong potential across all seasons. Spring delivers the highest output at 7.02 kWh per day for each kilowatt of installed capacity. Summer follows closely with 6.29 kWh/day, while autumn provides a respectable 5.73 kWh/day. Winter shows the lowest production at 4.76 kWh/day per kilowatt installed, but still offers reasonable generation capacity. For fixed solar panel installations in Meyerton, Gauteng, the ideal angle to maximize year-round energy production is 25 degrees facing North. This optimal tilt angle ensures panels capture the maximum possible solar radiation throughout the year, accounting for the region's position in the Southern Hemisphere.

Seasonal Considerations

Spring and summer represent the peak production periods in Meyerton, Gauteng, making these seasons particularly valuable for solar energy generation. The transition from winter to spring shows a dramatic increase in production potential, with nearly 50% more energy generation possible in spring compared to winter months. While winter produces less energy, the region's subtropical location means even the least productive season still delivers meaningful output, unlike more temperate locations where winter production can drop significantly.

Potential Challenges and Mitigation Strategies

Dust accumulation presents a significant challenge in this semi-arid region. Regular cleaning schedules should be implemented, with increased frequency during dry seasons. Self-cleaning panel technologies or automated cleaning systems represent worthwhile investments for larger installations. Occasional severe thunderstorms, particularly during summer months, can bring hail that potentially damages panels. Installing hail-resistant panels with tempered glass and protective frames provides essential protection. Lightning protection systems including surge protectors and proper grounding are also critical. High summer temperatures may reduce panel efficiency as they exceed optimal operating temperatures. Ensuring adequate airflow behind panels through proper mounting systems that allow ventilation can help mitigate this issue. Heat-resistant panel technologies specifically designed for hot climates should be considered. The region's clay-rich soils require attention during installation to ensure stable foundations that won't shift during seasonal changes. Proper engineering assessment and appropriate foundation design can prevent issues with panel stability over time.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

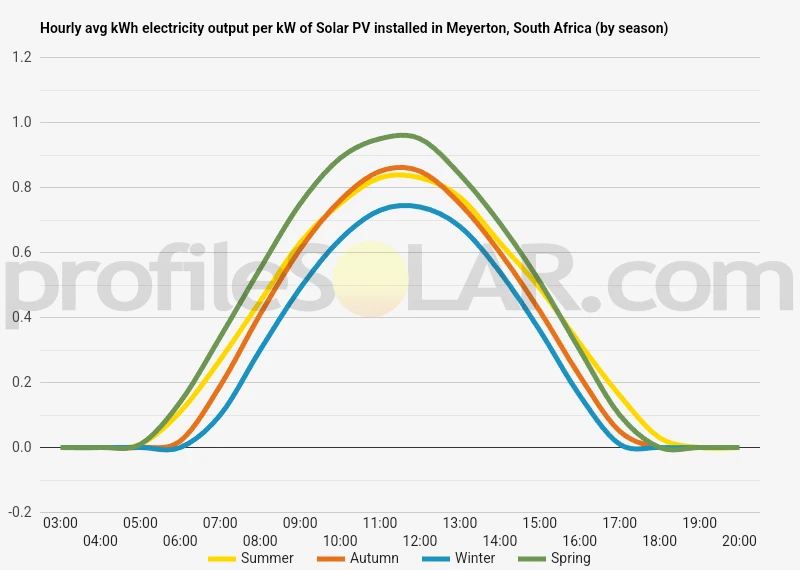

Solar output per kW of installed solar PV by season in Meyerton

Seasonal solar PV output for Latitude: -26.5663, Longitude: 28.0177 (Meyerton, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Meyerton, South Africa

To maximize your solar PV system's energy output in Meyerton, South Africa (Lat/Long -26.5663, 28.0177) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Meyerton, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Meyerton, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Meyerton, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Meyerton, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Meyerton, South Africa

The topography around Meyerton, South Africa presents a relatively flat to gently undulating landscape characteristic of the Highveld region. Situated in the southern part of Gauteng province, Meyerton lies at an elevation of approximately 1,500 meters above sea level. The terrain features open grasslands with occasional low hills and shallow valleys formed by local watercourses. To the west of Meyerton flows the Klip River, which has carved a shallow valley through the landscape. This river system creates minor variations in the otherwise predominantly level terrain. The broader region sits within the Vaal River basin, with the Vaal River itself located several kilometers to the south of Meyerton.

Surrounding Landscape Features

The area around Meyerton exhibits the classic Highveld landscape - wide-open spaces with long vistas across grassland plains. The natural vegetation consists primarily of grasses, though much of the land has been converted to agricultural use or urban development. The relatively flat terrain has made the region suitable for farming, residential development, and industrial activities. Small koppies (isolated hills) occasionally rise from the plains, but these are not prominent features in the immediate vicinity of Meyerton. The soil composition tends toward clay-rich earth typical of the Highveld, with some areas featuring deeper, more fertile soils that support agricultural activities.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas near Meyerton offer favorable conditions. The most suitable locations would be: The flatlands to the east and southeast of Meyerton present ideal conditions for solar PV development. These areas feature minimal topographical variation, reducing construction challenges and shadow effects. The gently sloping terrain in these directions provides good drainage while maintaining excellent solar exposure. Agricultural lands to the southwest, particularly in the direction of Vanderbijlpark, offer extensive flat areas that could be repurposed for solar installations. These locations benefit from minimal natural obstructions and good accessibility via existing road networks. The slightly elevated areas north of Meyerton provide favorable conditions with good drainage and minimal flood risk. These higher-lying portions of the landscape receive consistent solar radiation throughout the day due to their elevated position relative to surrounding terrain.

Topographical Considerations for Solar Development

The generally flat topography around Meyerton is advantageous for solar PV installation, as it minimizes earthwork requirements and simplifies construction. The open nature of the landscape means there are few natural barriers to cast shadows across potential solar arrays. Drainage considerations are important in some areas, particularly those closer to the Klip River and its tributaries. These lower-lying sections may experience occasional flooding during heavy rainfall periods, making them less suitable for solar infrastructure. The clay-rich soils of the region present both challenges and opportunities for foundation design. While these soils may require specific engineering approaches for stable foundations, they generally provide good load-bearing capacity for solar array support structures when properly prepared. The consistent elevation across much of the region means that microclimatic variations due to topography are minimal, allowing for more uniform solar radiation patterns across large installation areas - an important factor for optimizing energy production in utility-scale solar farms.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
