Solar PV Potential in Milnerton, Western Cape, South Africa

Milnerton, Western Cape, South Africa, located in the Southern Sub Tropics at coordinates -33.8844, 18.4898, offers varying potential for solar PV energy generation throughout the year. This coastal location near Cape Town experiences significant seasonal fluctuations in solar energy production. The seasonal solar output shows a clear pattern, with summer months (December-February) providing the highest energy yield at 9.00kWh per day for each kilowatt of installed solar capacity. Spring (September-November) follows with a strong 7.20kWh/day. The production drops considerably in autumn (March-May) to 4.98kWh/day, with winter (June-August) delivering the lowest output at just 3.49kWh/day per kilowatt installed.

Optimal Panel Installation

For fixed panel installations in Milnerton, Western Cape, the ideal tilt angle to maximize year-round solar production is 29 degrees facing North. This angle has been calculated to optimize energy capture across all seasons, accounting for the location's position in the Southern Hemisphere.

Environmental and Weather Considerations

Several environmental factors in Milnerton may impact solar production:

• Coastal fog and morning mist from the Atlantic Ocean can reduce morning solar generation, particularly in summer and autumn months
• Strong Cape Doctor winds (southeastern winds) may carry dust and salt spray that can accumulate on panels
• Winter rainfall and cloud cover contribute significantly to the lower winter production figures

To mitigate these issues, solar installations in Milnerton should incorporate regular cleaning schedules to remove salt deposits and dust accumulation. Mounting systems should be robust enough to withstand the strong southeastern winds. Additionally, slightly increasing the panel tilt beyond the optimal 29 degrees may help with self-cleaning during winter rainfall, though this comes with a minor efficiency trade-off.

Best Times for Solar Generation

The substantial difference between summer (9.00kWh/day) and winter (3.49kWh/day) production indicates Milnerton has a pronounced seasonal solar profile. The most productive period spans from late spring through summer (November to February), when days are longest and solar irradiance is highest. Spring shows strong potential with 7.20kWh/day, making it the second-best season for solar generation. Anyone considering solar PV in this location should plan for this seasonal variability, potentially incorporating battery storage to balance the nearly threefold difference between summer and winter daily production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

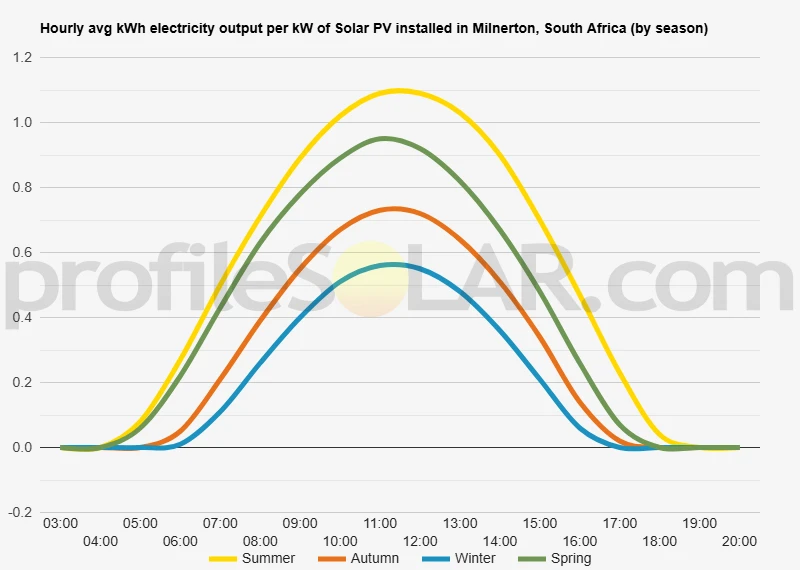

Solar output per kW of installed solar PV by season in Milnerton

Seasonal solar PV output for Latitude: -33.8844, Longitude: 18.4898 (Milnerton, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Milnerton, South Africa

To maximize your solar PV system's energy output in Milnerton, South Africa (Lat/Long -33.8844, 18.4898) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Milnerton, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Milnerton, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Milnerton, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Milnerton, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Milnerton, South Africa

Milnerton is situated on the western coast of South Africa, approximately 11 kilometers north of Cape Town's city center. The topography of this area is characterized by its coastal plains and gentle undulations. The landscape is predominantly flat to gently sloping, with elevations generally ranging from sea level along the Atlantic coastline to about 30-40 meters above sea level as one moves inland. The western boundary of Milnerton is defined by the Atlantic Ocean, featuring sandy beaches that stretch northward. To the east, the terrain gradually rises towards the inland regions, with subtle rises in elevation. The area is bisected by the Diep River, which flows into a lagoon before meeting the ocean, creating a small estuarine environment that influences the local topography.

Surrounding Geographical Features

The broader region around Milnerton includes Table Bay to the south, with the iconic Table Mountain visible in the distance. To the northeast, the landscape transitions into the more elevated areas of the Cape Flats and eventually into the Tygerberg Hills. These hills, while modest in height compared to mountains, represent a noticeable change in the otherwise relatively flat topography of the immediate Milnerton area. The soil composition in this region is primarily sandy, reflecting its coastal location. This sandy substrate extends inland for several kilometers, gradually giving way to more varied soil types as the distance from the coast increases.

Potential Areas for Solar PV Development

When considering large-scale solar photovoltaic (PV) installations near Milnerton, several areas stand out as particularly suitable based on their topographical characteristics: The inland plains to the northeast of Milnerton offer extensive flat areas that would be ideal for solar PV installations. These areas, extending towards Durbanville and the Tygerberg region, provide ample space with minimal topographical obstacles that could cast shadows or complicate construction. The areas north of Milnerton, towards Atlantis, also present favorable conditions for solar PV development. This region features large tracts of relatively flat land with sparse vegetation, reducing the need for significant land clearing. The gentle slopes in some portions of this area can actually be advantageous for solar installations, as they can be oriented to maximize solar exposure. The Cape Flats region to the east and southeast of Milnerton, while more densely populated in parts, does contain open areas that could accommodate solar infrastructure. The flat nature of this terrain makes it technically suitable, though urban development considerations would need to be factored into any planning.

Topographical Considerations for Solar PV

The generally flat terrain around Milnerton is highly favorable for solar PV installations as it minimizes construction complexities and reduces costs associated with land preparation. The absence of significant natural obstacles that could cast shadows ensures consistent solar exposure throughout the day. The region's proximity to the coast does mean that morning fog can occasionally affect areas closest to the shoreline, potentially reducing early-day efficiency. For this reason, installations slightly further inland might experience more consistent solar conditions. The sandy soil prevalent in the region presents both advantages and challenges. On one hand, it provides good drainage, which is beneficial for infrastructure stability. On the other hand, measures would need to be taken to ensure proper anchoring of solar arrays in this type of substrate to withstand the sometimes strong coastal winds that affect the area. Overall, the topography of the greater Milnerton region is well-suited to solar PV development, with the inland areas to the north and northeast offering the most promising combination of suitable terrain, available land, and favorable solar conditions.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
