Solar PV Analysis of Mitchells Plain, South Africa
Mitchells Plain, Western Cape, South Africa, located in the Southern Sub Tropics at coordinates -34.0526, 18.6118, offers a promising opportunity for solar energy generation throughout the year. The location's potential for solar PV production varies significantly across seasons, with notable peaks and troughs in energy output.
Seasonal Solar Production
Summer stands out as the most productive season, with an impressive daily output of 8.51 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 6.81 kWh/day. Autumn sees a considerable drop in production to 4.54 kWh/day, while winter experiences the lowest output at 3.22 kWh/day.
These figures indicate that Mitchells Plain is particularly well-suited for solar energy production during the warmer months, from late spring through early autumn. The extended daylight hours and more direct sunlight during this period contribute to the higher energy yields.
Optimal Panel Installation
To maximize year-round solar production at this location, fixed solar panels should be installed at a tilt angle of 29 degrees facing North. This angle is calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the Earth's elliptical orbit and the location's specific latitude.
Environmental Considerations
While Mitchells Plain generally offers favorable conditions for solar energy production, there are some environmental factors to consider:
- Coastal proximity: Being near the coast, salt spray could potentially accumulate on solar panels, reducing their efficiency over time.
- Wind: The area can experience strong winds, which might cause dust and debris to collect on panel surfaces.
To mitigate these issues, regular cleaning and maintenance of solar panels is crucial. Additionally, installing windbreaks or selecting wind-resistant mounting systems can help protect the panels from strong gusts. Using high-quality, corrosion-resistant materials for all components of the solar installation is also advisable to combat the effects of salt air.
Overall, despite some seasonal variations and environmental considerations, Mitchells Plain presents a favorable location for solar PV installations, with the potential for significant energy production, especially during the summer and spring months.
Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in South Africa by location

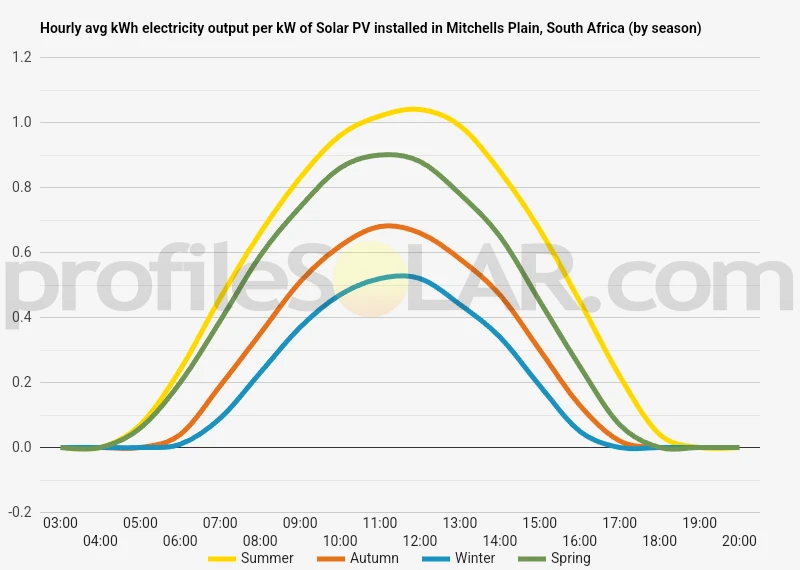

Solar output per kW of installed solar PV by season in Mitchells Plain
Seasonal solar PV output for Latitude: -34.0526, Longitude: 18.6118 (Mitchells Plain, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 29° North in Mitchells Plain, South Africa
To maximize your solar PV system's energy output in Mitchells Plain, South Africa (Lat/Long -34.0526, 18.6118) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Mitchells Plain, South Africa
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mitchells Plain, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 18° North in Summer | 39° North in Autumn | 49° North in Winter | 27° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Mitchells Plain, South Africa
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mitchells Plain, South Africa.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Mitchells Plain, South Africa
The topography around Mitchells Plain, South Africa, is generally characterized by a relatively flat coastal plain. This area is part of the larger Cape Flats region, which is a low-lying, sandy expanse situated between the Cape Peninsula and the inland mountains of the Western Cape.
Mitchells Plain itself is located close to the coast, with the terrain gradually rising as you move inland. The landscape is mostly composed of sandy soils, with some areas featuring low-lying dunes. The elevation in this region typically ranges from near sea level to about 50 meters above sea level.
To the east and northeast of Mitchells Plain, the land becomes slightly more undulating, with gentle hills and shallow valleys. As you move further inland, the terrain becomes more varied, eventually transitioning into the foothills of the Cape Fold Belt mountains, which are visible in the distance.
Regarding areas nearby that would be most suited for large-scale solar PV (photovoltaic) installations, several factors need to be considered:
- The regions slightly inland from Mitchells Plain, towards the north and northeast, might offer more suitable locations for solar PV projects. These areas generally receive more consistent sunlight and have less urban development.
- The flat or gently sloping terrain found in much of the Cape Flats region is ideal for solar panel installation, as it requires minimal land preparation and allows for efficient panel arrangement.
- Areas further from the coast may be preferable, as they are less likely to experience coastal fog or sea spray, which can reduce solar panel efficiency.
- Locations with good access to existing power infrastructure and transportation networks would be advantageous for large-scale solar projects.
Some specific areas that might be worth investigating for solar PV potential include the rural outskirts of Stellenbosch, Paarl, and Wellington, as well as less developed areas between Mitchells Plain and Strand. However, it's important to note that any large-scale solar project would require detailed site-specific assessments, including environmental impact studies and consideration of local land use regulations.
South Africa solar PV Stats as a country
South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in South Africa?
Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
