Modderfontein, Gauteng, South Africa presents a highly favorable location for year-round solar photovoltaic energy generation. This Southern Sub Tropics location demonstrates strong solar production potential across all seasons, with particularly excellent performance during spring and summer months.

Seasonal Solar Performance

The solar energy output at Modderfontein varies significantly throughout the year, creating distinct patterns that make certain seasons more productive than others. Spring emerges as the optimal season, delivering an impressive 7.03 kWh per day per kW of installed solar capacity. This peak performance occurs when the sun's angle becomes more favorable and before the atmospheric haze of summer fully develops. Summer follows closely with 6.30 kWh per day per kW, maintaining strong production levels despite potentially higher temperatures that can slightly reduce panel efficiency. Autumn shows a moderate decline to 5.75 kWh per day per kW as the sun's angle decreases and atmospheric conditions change. Winter represents the lowest production period at 4.80 kWh per day per kW, though this figure still indicates reasonable solar generation potential even during the least favorable season.

Optimal Panel Configuration

For maximum year-round energy production at Modderfontein, Gauteng, solar panels should be installed at a fixed tilt angle of 25 degrees facing north. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles according to the actual solar irradiance potential at this specific latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors at Modderfontein can potentially impact solar energy generation, though most can be effectively managed through proper installation practices. Dust accumulation presents the most significant challenge in this region. The area's proximity to mining activities and occasional dry conditions can lead to dust settling on solar panels, reducing their efficiency by blocking sunlight from reaching the photovoltaic cells. Regular cleaning schedules and the installation of automated cleaning systems can help maintain optimal performance. Seasonal rainfall patterns can both help and hinder solar production. While rain naturally cleans panels, heavy storms during summer months may temporarily reduce solar generation. However, the atmospheric clearing effect after rainfall often leads to improved production in subsequent days. High summer temperatures, while contributing to excellent solar irradiance, can slightly reduce panel efficiency since photovoltaic cells perform better in cooler conditions. Proper ventilation spacing beneath panels and choosing panels with better temperature coefficients can help mitigate this effect.

Preventative Installation Measures

Several installation strategies can maximize energy production at this location:

• Install panels with adequate spacing underneath for air circulation to reduce heat buildup
• Use mounting systems that allow for easy access for cleaning and maintenance
• Consider anti-soiling coatings on panels to reduce dust adhesion
• Implement proper drainage around installations to prevent water pooling
• Choose high-quality panels with good temperature coefficients and dust resistance ratings

The location's consistent solar resource throughout the year, combined with proper installation and maintenance practices, makes Modderfontein an excellent choice for solar photovoltaic installations. Even the lowest-producing winter season delivers nearly 70% of the peak spring output, ensuring reliable renewable energy generation year-round.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

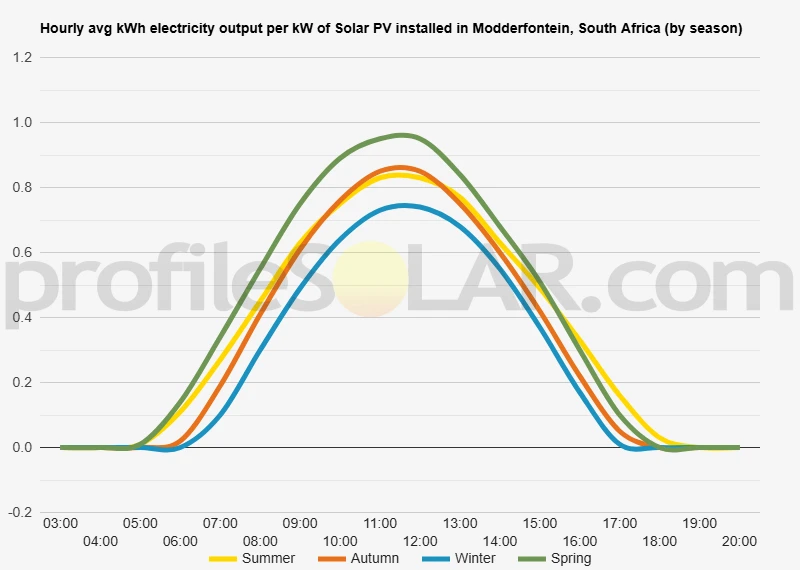

Solar output per kW of installed solar PV by season in Modderfontein

Seasonal solar PV output for Latitude: -26.0849, Longitude: 28.1698 (Modderfontein, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Modderfontein, South Africa

To maximize your solar PV system's energy output in Modderfontein, South Africa (Lat/Long -26.0849, 28.1698) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Modderfontein, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Modderfontein, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Modderfontein, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Modderfontein, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Modderfontein, South Africa

Topographical Features of Modderfontein and Surroundings

Modderfontein sits on the Highveld plateau of South Africa's Gauteng province, positioned at an elevation of approximately 1,650 meters above sea level. The area forms part of the broader Witwatersrand region, characterized by gently rolling hills and relatively flat terrain that extends across much of the central Highveld. The landscape around Modderfontein consists primarily of open grassland with scattered rocky outcrops and low ridges that rarely exceed 100 meters in height difference from the surrounding plains.

The topography is dominated by the ancient geological formations of the Witwatersrand Basin, which created a series of low hills and shallow valleys running in an east-west direction. These ridges are interspersed with broader, flatter areas that were historically used for mining activities and agriculture. The terrain slopes very gradually, with most areas having gradients of less than 5 degrees, making it relatively stable for large-scale development projects.

Water features in the region include several small streams and seasonal watercourses that flow northward toward the Jukskei River system. These waterways have carved shallow valleys through the landscape, but the overall relief remains modest. The area experiences minimal erosion due to the hardy grassland vegetation that covers most of the terrain during the growing season.

Optimal Areas for Large-Scale Solar Development

The flat to gently undulating terrain south and southwest of Modderfontein presents excellent opportunities for large-scale solar photovoltaic installations. These areas offer extensive tracts of relatively level ground with minimal shading from topographical features. The gradual slopes in these directions provide natural drainage while maintaining optimal positioning for solar panel arrays.

The open grassland areas extending toward the southeast also show strong potential for solar development. These regions benefit from unobstructed exposure and have fewer existing infrastructure constraints compared to areas closer to urban centers. The terrain in these locations typically features gentle slopes that can be easily graded for solar installations without requiring extensive earthworks.

Areas to the northwest of Modderfontein, while still topographically suitable, may present some challenges due to slightly more pronounced ridge systems and existing mining infrastructure. However, the broader valleys between these ridges could still accommodate substantial solar installations with proper site planning.

The eastern approaches to the area offer mixed conditions, with some excellent flat terrain punctuated by occasional rocky outcrops and small hills. These natural features could actually provide beneficial wind breaks for solar installations while the intervening flat areas remain highly suitable for development.

Overall, the Modderfontein region's topography is highly favorable for solar development, with the primary considerations being the selection of sites with optimal orientation and minimal shading from the low hills and ridges that characterize this part of the Highveld.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
