Solar PV Analysis of Modimolle, South Africa
Modimolle, Limpopo, South Africa, located in the Southern Sub Tropics, offers a promising environment for solar PV energy generation throughout the year. With its geographical coordinates at -24.6959 latitude and 28.3998 longitude, this location experiences varying levels of solar energy potential across different seasons.
Seasonal Solar Energy Production
Solar energy production in Modimolle fluctuates across the four meteorological seasons. Spring emerges as the most productive season, with an impressive output of 6.77 kWh per day for each kilowatt of installed solar capacity. Summer follows closely, generating 6.35 kWh/day, while autumn yields a respectable 5.91 kWh/day. Winter, though less productive, still manages to produce 4.96 kWh/day, which is considerable for the cooler months.
Optimal Times for Solar Generation
The data suggests that spring and summer are the ideal times for solar energy production in Modimolle. During these seasons, longer daylight hours and more direct sunlight contribute to higher energy yields. However, it's worth noting that even during autumn and winter, the region still receives significant solar radiation, making year-round solar energy production viable.
Panel Tilt Angle for Maximum Efficiency
To maximize year-round solar energy production from a fixed panel installation in Modimolle, Limpopo, the ideal tilt angle for solar panels is 23 degrees facing North. This angle has been calculated to optimize energy capture throughout the year, taking into account the Earth's elliptical orbit and the location's specific latitude.
Environmental and Weather Considerations
While Modimolle generally offers favorable conditions for solar energy production, there are a few factors to consider:
- Dust and pollen: The region's dry climate can lead to dust accumulation on solar panels, potentially reducing efficiency. Regular cleaning and maintenance can mitigate this issue.
- Occasional severe weather: Though infrequent, thunderstorms and hail can occur, posing a risk to solar installations. Using durable, weather-resistant panels and proper mounting systems can help protect against these events.
To ensure optimal energy production, it's advisable to implement a regular cleaning schedule for the panels and invest in high-quality, weather-resistant equipment. Additionally, considering a tracking system instead of a fixed installation could further boost energy yields, especially during the less productive winter months.
Overall, Modimolle's location proves to be highly suitable for solar PV energy generation, with consistent production potential throughout the year and only minor environmental challenges that can be effectively managed with proper planning and maintenance.
Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in South Africa by location

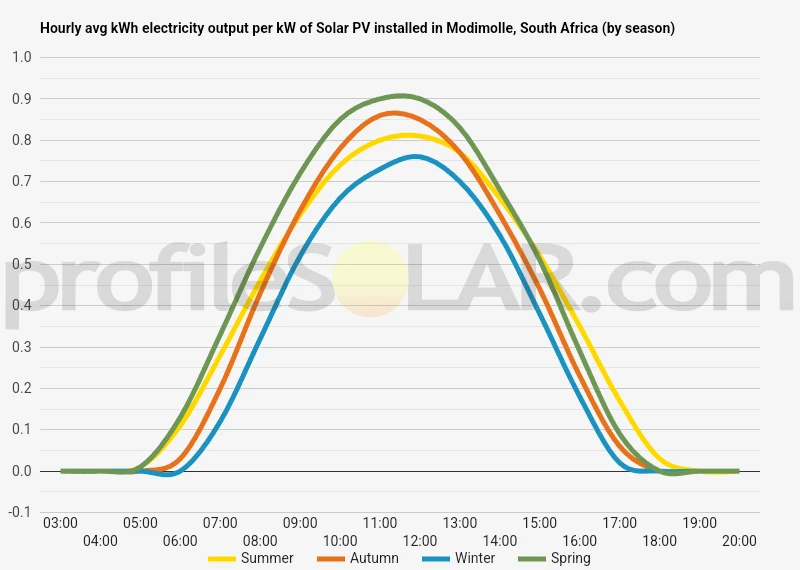

Solar output per kW of installed solar PV by season in Modimolle
Seasonal solar PV output for Latitude: -24.6959, Longitude: 28.3998 (Modimolle, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 23° North in Modimolle, South Africa
To maximize your solar PV system's energy output in Modimolle, South Africa (Lat/Long -24.6959, 28.3998) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Modimolle, South Africa
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Modimolle, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 9° North in Summer | 30° North in Autumn | 40° North in Winter | 19° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Modimolle, South Africa
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Modimolle, South Africa.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Modimolle, South Africa
The area around Modimolle, South Africa, is characterized by a diverse and interesting topography. Located in the Limpopo Province, Modimolle sits within the Waterberg region, known for its rugged and scenic landscape. The town itself is nestled at the foot of the Waterberg Mountains, which provide a striking backdrop to the area.
The terrain surrounding Modimolle is a mix of gently rolling hills, flat plains, and more dramatic mountainous areas. To the north and west of the town, the landscape becomes increasingly hilly and mountainous as it transitions into the heart of the Waterberg range. These mountains, composed mainly of sandstone, create a picturesque setting with their reddish hues and varied formations.
To the south and east of Modimolle, the topography becomes flatter, with expansive plains and bushveld stretching out towards the horizon. This area is characterized by savanna vegetation, including grasslands interspersed with trees and shrubs typical of the South African bushveld.
When considering areas nearby that would be most suited to large-scale solar PV installations, the flatter regions to the south and east of Modimolle present the most promising opportunities. These areas offer several advantages for solar energy production:
- The relatively flat terrain makes construction and maintenance of solar arrays easier and more cost-effective.
- There are fewer natural obstacles like mountains or dense forests that could cast shadows or interfere with sunlight exposure.
- The open plains provide ample space for large-scale installations without significant land clearing requirements.
- The region experiences high levels of solar radiation throughout the year, making it ideal for solar energy production.
Specific areas that might be particularly well-suited for solar PV development include the plains stretching towards Bela-Bela to the south and the flatter regions east of Modimolle towards Mookgophong. These areas combine favorable topography with good solar exposure and relatively easy access to existing infrastructure.
However, it's important to note that any large-scale solar development would require detailed site-specific assessments, including environmental impact studies and consideration of local land use regulations. The semi-arid nature of the region also means that water availability for panel cleaning and maintenance should be carefully evaluated in the planning stages of any solar project.
South Africa solar PV Stats as a country
South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in South Africa?
Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
Citation Guide
Article Details for Citation
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Friday 4th of October 2024
Last Updated: Monday 21st of July 2025
Tell Us About Your Work
We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
Feeling generous?
Share this with your friends!
Compare this location to others worldwide for solar PV potential
The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.
However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
