Mokopane, South Africa presents an excellent location for year-round solar photovoltaic energy generation. Located in the Southern Sub Tropics at coordinates -24.1837, 29.0209, this area demonstrates consistently strong solar energy potential across all seasons.

Seasonal Energy Production

The solar energy output at Mokopane shows impressive consistency throughout the year. Spring delivers the highest production at 6.72 kWh per day per kW of installed solar capacity, closely followed by summer at 6.59 kWh per day. Even during the lower-production months, autumn still generates 5.91 kWh per day, while winter produces 4.92 kWh per day per kW installed. This seasonal variation of only 1.8 kWh between the highest and lowest producing seasons indicates exceptional year-round reliability. The relatively small dip during winter months makes this location particularly attractive for solar installations, as energy production remains viable even during the traditionally weaker solar period.

Optimal Installation Configuration

For maximum year-round energy production at Mokopane, solar panels should be installed at a fixed tilt angle of 23 degrees North. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these angles using NASA solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this location and require consideration during installation:

• Dust and Particulate Matter: The semi-arid climate and agricultural activities in the Limpopo province can generate significant dust accumulation on solar panels, reducing efficiency by 10-20% if left unaddressed
• Hail Storms: The region experiences occasional severe thunderstorms during summer months that can produce damaging hail
• High Temperatures: Extreme summer heat can reduce panel efficiency and accelerate component degradation
• Seasonal Rainfall Patterns: While beneficial for natural panel cleaning, intense seasonal rains can create temporary shading from storm clouds

Preventative Measures for Optimal Performance

Regular maintenance schedules should include monthly panel cleaning during dry periods, with automated cleaning systems being particularly beneficial given the dust exposure. Installing panels with adequate ventilation spacing underneath helps manage high temperature impacts and maintains efficiency. Hail protection can be achieved through tempered glass panels rated for impact resistance, while proper grounding and surge protection systems safeguard against lightning damage during thunderstorms. Selecting high-quality mounting systems designed for local wind loads ensures long-term structural integrity. Despite these considerations, Mokopane remains an exceptionally favorable location for solar energy generation, with the preventative measures being standard best practices rather than location-specific obstacles. The consistent high energy output throughout all seasons makes this an ideal location for both residential and commercial solar installations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

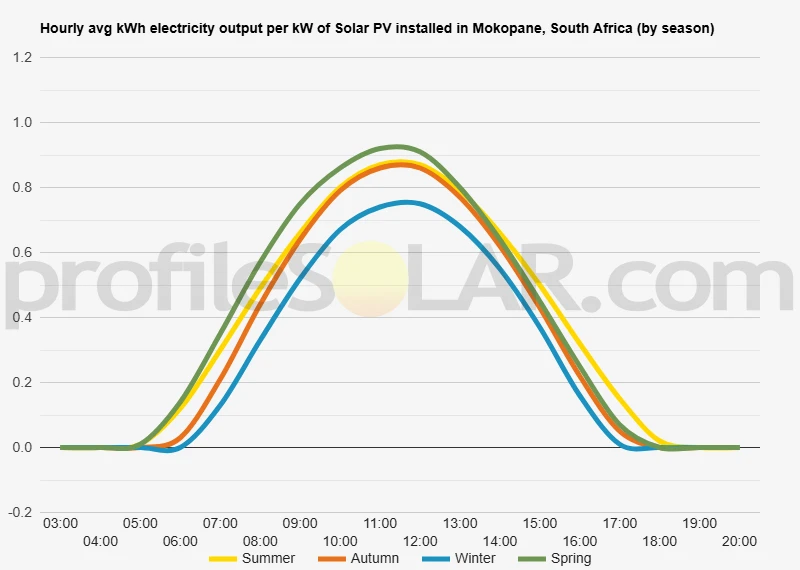

Solar output per kW of installed solar PV by season in Mokopane

Seasonal solar PV output for Latitude: -24.1837, Longitude: 29.0209 (Mokopane, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Mokopane, South Africa

To maximize your solar PV system's energy output in Mokopane, South Africa (Lat/Long -24.1837, 29.0209) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mokopane, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mokopane, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	30° North in Autumn	40° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mokopane, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mokopane, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mokopane, South Africa

Topography Around Mokopane

The landscape surrounding Mokopane in South Africa's Limpopo Province is characterized by gently rolling hills and relatively flat terrain that forms part of the Bushveld Complex. This ancient geological formation creates a predominantly open savanna environment with scattered rocky outcrops and low-lying ridges. The area sits at an elevation of approximately 1,100 meters above sea level, positioned on the southern edge of the vast Limpopo River basin. The terrain gradually slopes northward toward the Limpopo River valley, with the landscape becoming increasingly flat as it extends away from the Waterberg mountain range to the south. Rocky koppies, which are small isolated hills typical of the South African highveld, dot the landscape intermittently but do not significantly disrupt the overall gentle topography. These granite and quartzite formations rise modestly above the surrounding plains, creating minor variations in the otherwise accessible terrain. Vegetation in the region consists mainly of mixed bushveld, featuring scattered acacia trees, grasslands, and shrubland that do not create substantial obstacles for large-scale development. The area experiences a semi-arid climate with distinct wet and dry seasons, contributing to the sparse tree coverage that leaves much of the landscape open and exposed.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Mokopane would be the extensive flat to gently undulating plains that stretch northward and eastward from the town center. These areas offer the ideal combination of minimal topographical challenges, excellent accessibility, and limited existing development constraints. The broad valleys between the scattered koppies present particularly attractive opportunities, as they provide large continuous areas of relatively level ground while being naturally sheltered from strong winds. The terrain in these locations requires minimal earthworks for installation, reducing both construction costs and environmental impact. Areas to the northwest of Mokopane, extending toward the Limpopo River valley, offer some of the most promising conditions due to their extremely flat topography and sparse vegetation. The gradual northern slope of this region provides natural drainage while maintaining optimal angles for solar panel positioning without requiring significant grading or terracing. The eastern plains also present excellent potential, where the landscape opens into broad, gently rolling grasslands with minimal tree coverage. These areas benefit from good road access along existing agricultural and mining routes, making them practical for the transportation of equipment and ongoing maintenance operations. Locations near existing electrical infrastructure, particularly around the mining operations south and east of Mokopane, would be advantageous for grid connection while still maintaining the favorable flat topography. The established industrial presence in these areas also means that much of the necessary supporting infrastructure already exists. Areas to avoid would include the steeper slopes of the Waterberg foothills to the south, where the increased gradient and rocky terrain would complicate installation. Similarly, the immediate vicinity of the scattered koppies, while not impossible to develop, would require more complex planning to work around the irregular topography and potential archaeological sensitivities of these ancient rock formations.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
