Solar PV Analysis of Montagu, South Africa
Montagu, Western Cape, South Africa, located in the Southern Sub Tropics, offers a promising location for solar PV energy generation throughout the year. The seasonal variations in electricity output per kW of installed solar panels provide insights into the potential for solar energy production in this area.
Seasonal Solar Performance
Summer stands out as the peak season for solar energy generation in Montagu, Western Cape, with an impressive output of 8.81 kWh per day for each kW of installed solar capacity. Spring follows closely behind, producing 7.16 kWh per day. Autumn sees a moderate decrease in production at 5.03 kWh per day, while winter experiences the lowest output at 3.73 kWh per day.
These figures indicate that Montagu enjoys favorable conditions for solar energy production for much of the year, with particularly strong performance during the summer and spring months. Even during the less productive winter season, the output remains significant enough to contribute meaningfully to energy needs.
Optimal Panel Installation
For those considering a fixed panel installation in Montagu, Western Cape, the ideal angle to maximize year-round solar production is 30 degrees tilted towards the North. This orientation takes into account the location's latitude and the sun's path throughout the year, ensuring optimal exposure to sunlight across all seasons.
Environmental Considerations
While Montagu generally offers favorable conditions for solar energy production, there are a few environmental factors to consider:
- Dust and pollen: The semi-arid climate of the region can lead to dust accumulation on solar panels, potentially reducing their efficiency. Regular cleaning and maintenance can mitigate this issue.
- Occasional extreme weather: Though rare, severe storms or hailstorms could pose a risk to solar installations. Installing hail-resistant panels and ensuring proper mounting can help protect against weather-related damage.
By addressing these factors during installation and maintenance, solar energy systems in Montagu can achieve optimal performance and longevity, making the most of the location's abundant solar resources throughout the year.
Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in South Africa by location

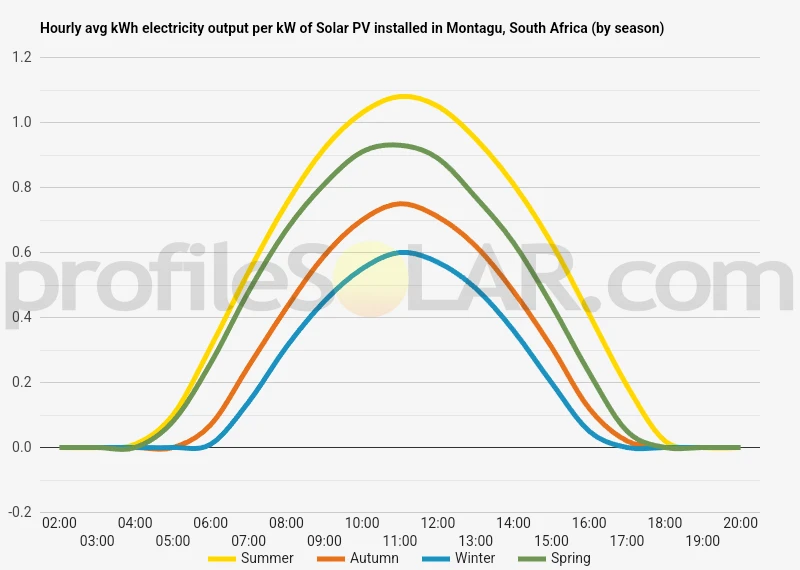

Solar output per kW of installed solar PV by season in Montagu
Seasonal solar PV output for Latitude: -33.7862, Longitude: 20.1136 (Montagu, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 30° North in Montagu, South Africa
To maximize your solar PV system's energy output in Montagu, South Africa (Lat/Long -33.7862, 20.1136) throughout the year, you should tilt your panels at an angle of 30° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Montagu, South Africa
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Montagu, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 18° North in Summer | 39° North in Autumn | 49° North in Winter | 27° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Montagu, South Africa
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Montagu, South Africa.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Montagu, South Africa
The area around Montagu, South Africa, is characterized by diverse and rugged topography. The town itself is nestled in a valley surrounded by the majestic Langeberg Mountains, which are part of the larger Cape Fold Belt. These mountains create a dramatic backdrop with steep slopes and rocky outcrops.
To the north and east of Montagu, the landscape is dominated by rolling hills and valleys, gradually transitioning into the semi-arid Karoo region. This area features a mix of low-lying shrubland and scattered rock formations. The terrain becomes increasingly flat and open as you move further into the Karoo.
South and west of Montagu, the topography is more varied, with a combination of fertile valleys, gentle slopes, and occasional rocky outcrops. This region is part of the Breede River Valley, known for its agricultural productivity and scenic beauty.
Regarding areas suitable for large-scale solar PV installations, the most promising locations would likely be found in the flatter, more open spaces to the north and east of Montagu, as you enter the Karoo region. These areas offer several advantages for solar energy development:
- Abundant flat or gently sloping land, which is ideal for installing large arrays of solar panels
- Minimal shading from mountains or tall vegetation
- High levels of solar radiation due to the semi-arid climate and clear skies
- Lower competition for land use compared to the more agriculturally productive areas to the south and west
However, it's important to note that any large-scale solar PV project would require detailed site-specific assessments, including environmental impact studies and grid connection feasibility. The exact suitability of a location would depend on factors such as local regulations, land ownership, proximity to existing infrastructure, and potential ecological considerations.
South Africa solar PV Stats as a country
South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in South Africa?
Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
