Newcastle, South Africa demonstrates very good potential for year-round solar energy generation, making it a highly suitable location for solar PV installations in the Southern Sub Tropics region.

Solar Energy Production Throughout the Year

The solar output data shows consistently strong performance across all seasons. Spring delivers the highest energy production at 6.68kWh per day per kW of installed solar capacity, followed closely by summer at 6.06kWh per day. Even during the lowest production period in winter, the location still generates a respectable 4.58kWh per day per kW, while autumn maintains good output at 5.72kWh per day. This seasonal variation represents only a 46% difference between the best and worst performing seasons, which is relatively modest compared to many other locations. The fact that even winter production remains above 4.5kWh per day indicates excellent year-round solar conditions.

Optimal Installation Configuration

For maximum energy production at Newcastle, solar panels should be installed at a fixed tilt angle of 26 degrees facing north. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for actual solar irradiance conditions.

Local Environmental Factors and Mitigation Strategies

Several environmental factors in the Newcastle area could potentially impact solar energy production:

• Coal mining dust and industrial particulates: Newcastle's location in KwaZulu-Natal's coal mining region means airborne dust and industrial emissions can accumulate on solar panels, reducing their efficiency
• Seasonal hail storms: The area experiences occasional severe thunderstorms during summer months that may include damaging hail
• High altitude weather variations: Located at approximately 1,200 meters above sea level, Newcastle can experience rapid weather changes and temperature fluctuations

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered: Regular cleaning schedules are essential, with panels requiring cleaning every 4-6 weeks during dry seasons when dust accumulation is highest. Installing panels at the recommended 26-degree tilt helps with natural rain washing, but manual cleaning remains important in this dusty environment. Protective measures against hail damage include selecting solar panels with tempered glass rated for impact resistance and considering protective screening systems for areas with frequent severe weather. Some installers in the region recommend slightly steeper mounting angles to help hail deflection. Quality mounting systems designed for temperature variations will ensure panels remain securely positioned despite thermal expansion and contraction cycles common at this altitude.

Overall Assessment

Despite these environmental considerations, Newcastle remains an excellent location for solar PV installation. The consistently high energy output across all seasons, combined with relatively straightforward mitigation measures for local environmental factors, makes this location highly suitable for both residential and commercial solar projects. The strong spring and summer performance particularly benefits applications with higher energy demands during warmer months.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

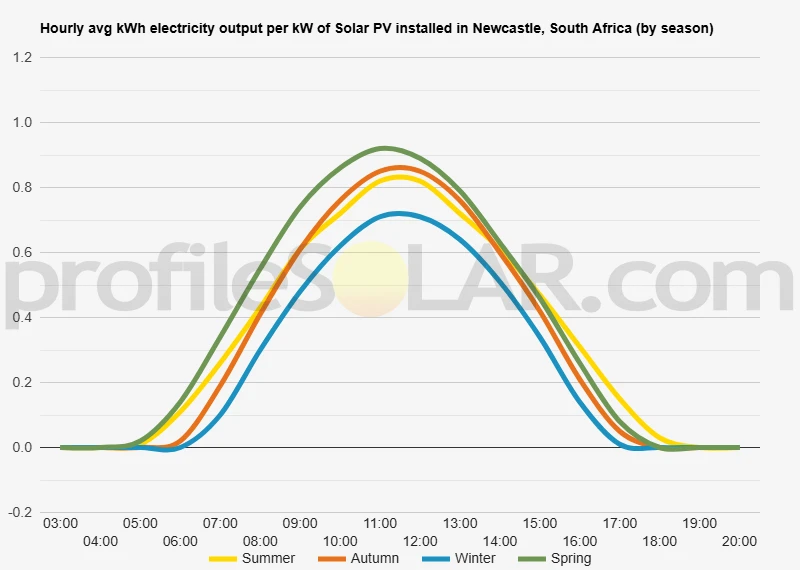

Solar output per kW of installed solar PV by season in Newcastle

Seasonal solar PV output for Latitude: -27.7489, Longitude: 29.9335 (Newcastle, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Newcastle, South Africa

To maximize your solar PV system's energy output in Newcastle, South Africa (Lat/Long -27.7489, 29.9335) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Newcastle, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Newcastle, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	33° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Newcastle, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Newcastle, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Newcastle, South Africa

Topographical Features Around Newcastle

Newcastle sits within the foothills of the Drakensberg Mountains in KwaZulu-Natal, positioned at an elevation of approximately 1,200 meters above sea level. The surrounding landscape is characterized by rolling hills and gentle slopes that gradually rise toward the more dramatic escarpment to the west. The terrain consists primarily of grassland interspersed with rocky outcrops and scattered valleys that have been carved by seasonal streams and rivers. The area forms part of the Highveld plateau, which creates a relatively stable geological foundation with moderate undulations rather than steep mountainous terrain. To the east, the land gradually descends toward the coastal regions, while westward the elevation increases as it approaches the main Drakensberg range. The local topography includes several prominent ridges and kopjes that dot the landscape, creating a varied but manageable terrain profile. The region experiences a continental climate typical of the South African interior, with the elevation providing cooler temperatures than might be expected at this latitude. The grassland ecosystem dominates the area, supported by the relatively high altitude and seasonal rainfall patterns that characterize this part of KwaZulu-Natal.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the gentler slopes and plateau areas to the east and southeast of Newcastle. These areas offer the ideal combination of relatively flat terrain with good southern exposure, minimizing the need for extensive ground preparation while maximizing solar collection potential throughout the day. The elevated plains extending toward the Chelmsford and Dannhauser areas present particularly attractive opportunities for large-scale development. These locations benefit from stable geology, gentle gradients that facilitate construction and maintenance access, and sufficient open space away from residential areas. The terrain in these directions is less dissected by valleys and streams, providing larger contiguous areas suitable for extensive solar arrays. Areas to avoid would include the steeper slopes approaching the Drakensberg escarpment to the west, where the terrain becomes increasingly challenging for construction and maintenance. Similarly, the more deeply incised valleys and areas prone to seasonal flooding would present complications for large-scale installations. The northern approaches toward the Free State border also offer promising terrain, with broad, gently rolling grasslands that could accommodate substantial solar developments. These areas typically feature good drainage, stable soils, and the kind of open exposure that maximizes solar collection efficiency while minimizing shading issues between panel arrays.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
