Northam, Limpopo, South Africa presents a highly favorable location for year-round solar PV energy generation. Located in the Southern Sub Tropics at coordinates -24.9546, 27.2708, this area demonstrates consistently strong solar energy potential across all seasons.

Seasonal Solar Performance

The solar energy output at Northam shows excellent consistency throughout the year, with spring delivering the highest production at 7.06kWh per day per kW of installed solar capacity. Summer follows closely with 6.44kWh/day, while autumn maintains strong performance at 5.95kWh/day. Even during the lowest production period in winter, the location still generates a respectable 4.95kWh/day per kW installed. Spring emerges as the ideal season for solar generation, likely due to optimal sun angles combined with clearer atmospheric conditions before the summer rains arrive. The relatively small variation between seasons (approximately 2.11kWh difference between peak and lowest months) indicates this location offers reliable solar energy production year-round.

Optimal Panel Configuration

For fixed panel installations at Northam, Limpopo, the ideal tilt angle to maximize total year-round solar production is 24 degrees facing North. This angle has been calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles according to daily solar potential using comprehensive solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Factors

Several local factors could potentially impact solar production efficiency at Northam:

• Dust accumulation from mining activities in the platinum-rich region
• Seasonal rainfall patterns that may cause temporary shading from cloud cover
• High summer temperatures that can reduce panel efficiency
• Potential hail during thunderstorm season

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Install automated or manual panel cleaning systems to address dust buildup from local mining operations
• Use high-quality panels with good temperature coefficients to maintain efficiency during hot periods
• Implement proper ventilation and mounting systems to promote air circulation and cooling
• Consider impact-resistant panel glazing to protect against hail damage
• Ensure adequate drainage around installations to prevent water pooling during rainy seasons

Regular maintenance schedules should include panel cleaning, especially during dry periods when dust accumulation peaks. The consistent year-round solar potential at Northam makes it an excellent location for solar PV installations, provided proper attention is given to these local environmental factors during system design and ongoing maintenance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

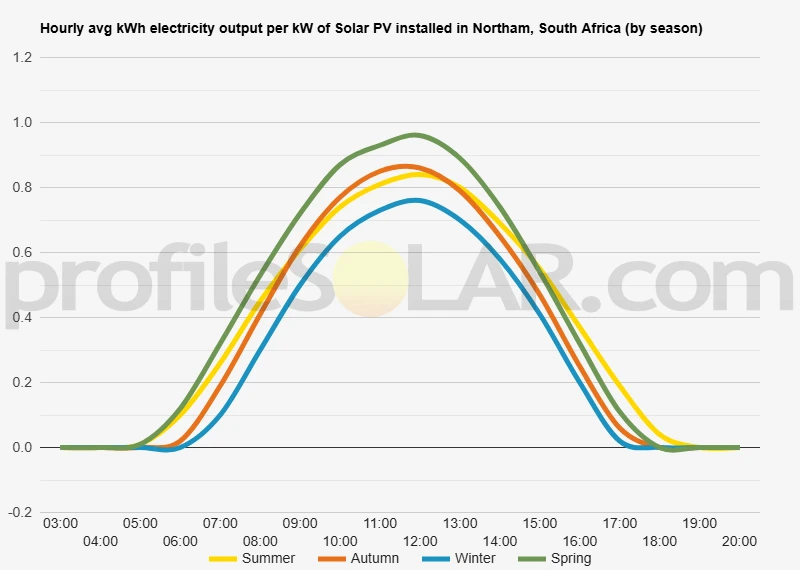

Solar output per kW of installed solar PV by season in Northam

Seasonal solar PV output for Latitude: -24.9546, Longitude: 27.2708 (Northam, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Northam, South Africa

To maximize your solar PV system's energy output in Northam, South Africa (Lat/Long -24.9546, 27.2708) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Northam, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Northam, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	31° North in Autumn	40° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Northam, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Northam, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Northam, South Africa

Topographical Features of Northam Region

The area around Northam in South Africa's Limpopo Province is characterized by relatively flat to gently undulating terrain that forms part of the broader Bushveld Complex. This region sits at an elevation of approximately 1,200 meters above sea level, creating a plateau-like landscape that extends across much of the surrounding area. The topography is generally favorable for large-scale development projects, with minimal steep gradients or challenging geological features that would complicate construction activities.

The landscape consists primarily of open savanna and grassland areas, interspersed with scattered low hills and gentle ridges. These modest elevation changes rarely exceed 100 meters in height difference across the immediate vicinity. The terrain slopes very gradually toward the east and southeast, following the natural drainage patterns that eventually feed into the Olifants River system. This gentle gradient ensures good natural drainage while maintaining relatively stable ground conditions.

Rocky outcrops and kopjes (small hills) appear sporadically throughout the region, though they are not dense enough to significantly impact large-scale land use planning. The underlying geology consists mainly of igneous rocks associated with the Bushveld Complex, providing generally stable foundations. Soil depths vary but are typically adequate for supporting infrastructure development, with areas of deeper soil interspersed with sections where bedrock lies closer to the surface.

Optimal Areas for Large-Scale Solar Development

The expansive flat areas extending north and east of Northam present the most suitable terrain for large-scale solar photovoltaic installations. These areas offer several kilometers of continuous relatively level ground with minimal natural obstacles. The gentle slopes in these directions, typically less than five degrees, are ideal for solar panel arrays as they allow for optimal positioning while facilitating natural drainage and maintenance access.

The southeastern plains, stretching toward the direction of the regional drainage systems, provide particularly attractive development opportunities. This area combines favorable topography with good accessibility via existing road networks. The terrain here is sufficiently flat to minimize earthwork requirements while maintaining enough natural slope to prevent water accumulation during seasonal rains.

Areas to the west and northwest of Northam also show promise, featuring broad expanses of open terrain with minimal vegetation cover. These locations benefit from stable geological conditions and relatively uniform topography that would support large solar installations. The sparse population density in these directions means fewer potential land use conflicts and greater availability of contiguous parcels suitable for utility-scale projects.

The immediate vicinity around existing mining operations should be evaluated carefully, as these areas may have altered topography but could potentially offer opportunities for dual land use arrangements. Some previously disturbed areas, if properly rehabilitated, might provide suitable foundations for solar development while contributing to land restoration efforts in the region.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
