Solar PV Analysis of Olifantsfontein, South Africa
Olifantsfontein, Gauteng, South Africa, located in the Southern Sub Tropics, presents a favorable environment for solar PV energy generation throughout the year. This location, with coordinates -25.9645 latitude and 28.2417 longitude, experiences consistent solar radiation across all seasons, making it an attractive site for solar power installations.
Seasonal Solar Performance
The solar energy output at Olifantsfontein varies across seasons, with spring being the most productive period. During spring, solar panels can generate an impressive 7.03 kWh per day for each kilowatt of installed capacity. Summer follows closely with 6.40 kWh/day, while autumn produces 5.89 kWh/day. Winter, although less productive, still maintains a respectable output of 4.97 kWh/day.
This seasonal variation indicates that solar energy production remains viable throughout the year, with only a moderate decrease during the winter months. The relatively small fluctuation between seasons suggests that Olifantsfontein is an ideal location for consistent solar energy generation.
Optimal Panel Orientation
To maximize year-round solar energy production in Olifantsfontein, Gauteng, fixed solar panels should be tilted at a 25-degree angle facing north. This orientation allows the panels to capture the most sunlight throughout the year, accounting for the location's position in the Southern Hemisphere and the Earth's elliptical orbit.
Environmental Considerations
While Olifantsfontein generally offers favorable conditions for solar energy production, there are a few environmental factors to consider:
- Dust and pollen: The region may experience periods of increased dust or pollen in the air, which can accumulate on solar panels and reduce their efficiency.
- Occasional hailstorms: Although rare, hailstorms can potentially damage solar panels if they are severe enough.
To mitigate these factors, consider implementing the following preventative measures:
- Regular cleaning: Establish a maintenance schedule to clean the panels, removing dust and pollen buildup.
- Protective coverings: Install hail-resistant covers or opt for solar panels with reinforced glass to protect against potential hail damage.
- Weather monitoring: Implement a system to track local weather patterns, allowing for proactive measures during extreme weather events.
In conclusion, Olifantsfontein's location provides excellent conditions for solar PV energy generation throughout the year. With proper installation, orientation, and maintenance, solar panels in this area can consistently produce high levels of clean energy, making it an ideal site for solar power projects.
Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in South Africa by location

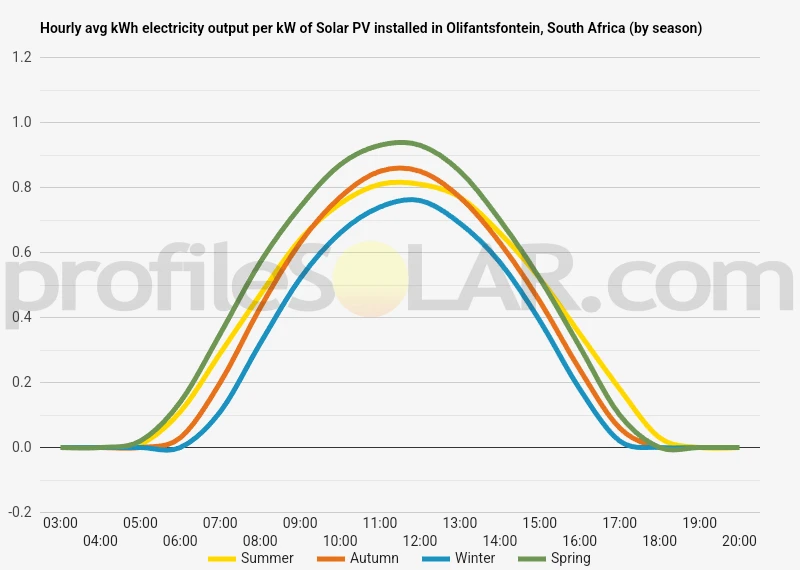

Solar output per kW of installed solar PV by season in Olifantsfontein
Seasonal solar PV output for Latitude: -25.9645, Longitude: 28.2417 (Olifantsfontein, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 25° North in Olifantsfontein, South Africa
To maximize your solar PV system's energy output in Olifantsfontein, South Africa (Lat/Long -25.9645, 28.2417) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Olifantsfontein, South Africa
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Olifantsfontein, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 10° North in Summer | 32° North in Autumn | 41° North in Winter | 20° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Olifantsfontein, South Africa
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Olifantsfontein, South Africa.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Olifantsfontein, South Africa
The area around Olifantsfontein, South Africa, is characterized by a relatively flat to gently rolling landscape. This region is part of the Highveld, a large plateau that covers much of the interior of South Africa. The terrain in and around Olifantsfontein is generally open and expansive, with occasional low hills and shallow valleys.
The elevation in this area is approximately 1,500 meters (about 4,900 feet) above sea level, which contributes to its cooler climate compared to coastal regions. The landscape is dotted with grasslands and scattered trees, typical of the Highveld ecosystem. There are also some small streams and wetlands in the vicinity, though large bodies of water are not prominent features of the immediate area.
When considering nearby areas for large-scale solar PV installations, several factors come into play. The most suitable locations would be those that combine favorable topography with good solar exposure and minimal environmental or social conflicts. Based on these criteria, the following areas near Olifantsfontein could be well-suited for solar PV development:
1. The open plains to the east and northeast of Olifantsfontein, extending towards Bapsfontein and Bronkhorstspruit, offer large expanses of relatively flat land with good solar exposure. These areas are less densely populated and have fewer competing land uses, making them potentially suitable for solar farms.
2. The region south of Olifantsfontein, between Kempton Park and Brakpan, also presents opportunities for solar PV installations. While this area is more developed, there are still pockets of open land that could accommodate solar projects, particularly on the outskirts of urban areas.
3. The terrain to the west and northwest, towards Midrand and Centurion, while more urbanized, still has some suitable sites for smaller-scale solar installations. These could be integrated into industrial parks or on the rooftops of large commercial buildings.
It's important to note that any large-scale solar PV development would require detailed site-specific assessments, including environmental impact studies, grid connection feasibility, and consideration of local zoning regulations. The proximity to Johannesburg's metropolitan area means that careful planning would be necessary to balance energy production needs with urban development and conservation efforts.
South Africa solar PV Stats as a country
South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in South Africa?
Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
