Location estimate

Orange Farm

Gauteng · South Africa

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

6.43

kWh/day

Autumn

5.79

kWh/day

Winter

4.78

kWh/day

Spring

7.24

kWh/day

Shared scale: 0–8.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Orange Farm, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 6.43 6.43 × 1 kWp = 6.43 kWh/day
Autumn 5.79 5.79 × 1 kWp = 5.79 kWh/day
Winter 4.78 4.78 × 1 kWp = 4.78 kWh/day
Spring 7.24 7.24 × 1 kWp = 7.24 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
6.43
Autumn · kWh/day
5.79
Winter · kWh/day
4.78
Spring · kWh/day
7.24

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 25 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
25°
Facing direction
North

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Dec, Jan, Feb
10°North
Autumn
Mar, Apr, May
32°North
Winter
Jun, Jul, Aug
42°North
Spring
Sep, Oct, Nov
20°North

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Orange Farm, Gauteng, South Africa.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 10 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

10° tilt · North

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 32 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

32° tilt · North

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 42 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

42° tilt · North

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 20 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

20° tilt · North

Illustrative direction; exact azimuth not recorded.

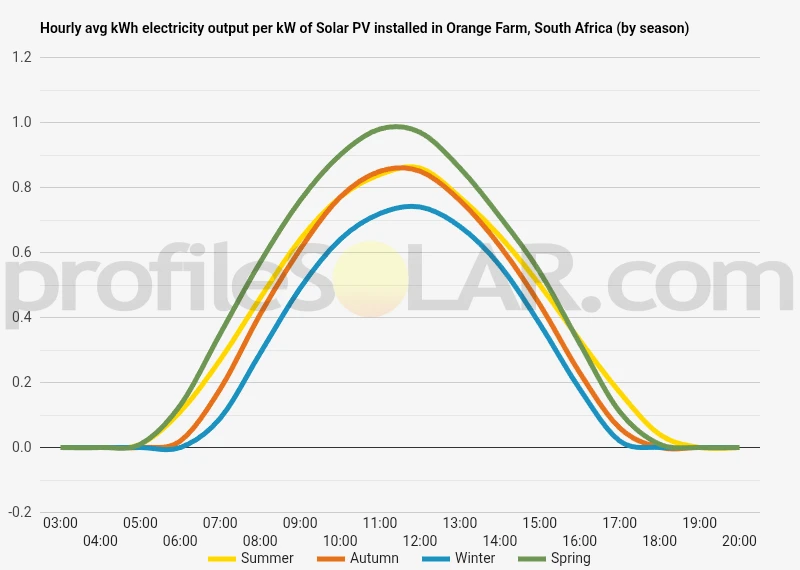

Historical hourly-by-season solar output chart for Orange Farm, South Africa. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Orange Farm, South Africa

Hourly profiles by season — Orange Farm, South Africa · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Orange Farm, South Africa · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Orange Farm

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.82 m

Proportional side viewDesign sun: ≈ 40.07° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 1 m
Added margin
≈ 0 m
Gap including margin
≈ 1 m
Panel horizontal footprint
≈ 1.81 m
Panel vertical rise
≈ 0.85 m
Pitch before margin
≈ 2.82 m

Simplified level ground, equator-facing cross-section. Approximate Southern Hemisphere winter solstice at solar noon (day 172). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
25°
Added margin
0 m
Latitude from the catalogue
-26.480900000000000000° (Southern Hemisphere)
Panel horizontal footprint
1.8126155740732999 m
Panel vertical rise
0.8452365234813989 m
Calculated clear gap
1.0048423044089323 m
Pitch before margin
2.817457878482232 m
Gap including margin
1.0048423044089323 m
Row pitch including margin
2.817457878482232 m
Design solar elevation
40.06931715318635°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Orange Farm

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Orange Farm, South Africa represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the Southern Sub Tropics at coordinates -26.4809, 27.869, this area demonstrates excellent solar energy potential across all seasons.

Read the full article

<h3>Seasonal Solar Performance</h3> The solar energy output at Orange Farm shows strong performance throughout the year, with spring delivering the highest generation rates at 7.24kWh per day per kW of installed solar capacity. Summer follows closely with 6.43kWh/day per kW, while autumn maintains solid production at 5.79kWh/day per kW. Even during winter months, the location still produces a respectable 4.78kWh/day per kW. Spring has the highest seasonal estimate, while winter remains substantial. These averages describe electricity per rated kilowatt; they do not isolate a local dust, temperature or cloud effect. <h3>Fixed Panel Configuration</h3> For fixed panels in Orange Farm, the recorded year-round reference is 25 degrees facing North. It is a broad solar-geometry reference, with actual roof orientation and obstructions affecting the layout. <h3>Environmental and Weather Challenges</h3> Orange Farm is a residential settlement within Johannesburg’s Gauteng urban region. Local array exposure therefore includes roofs, streets and neighbouring structures, alongside the more open Highveld landscape. A broad plateau location does not give every roof an uninterrupted northern horizon. Dust deposited on modules can obstruct light. Cleaning frequency follows observed soiling, rainfall and installer guidance; washing every 2–4 weeks cannot be prescribed from the seasonal estimates. Likewise, haze can reduce incoming light without establishing a measured loss for this location. During hot conditions, cell temperature can reduce module power; ventilation behind an array is relevant to heat dissipation. This differs from assuming that normal day-to-night temperature variation itself reduces conversion efficiency. Mounting, electrical protection and component ratings address the actual site's wind and weather exposure. Hail-resistant glass or a product label does not guarantee survival in a severe event. Monitoring helps distinguish a maintenance problem from ordinary changes in sunlight. The strong spring and summer estimates make the timing of consumption useful to consider. They support an energy comparison across seasons, while the winter average remains a planning value rather than a promise of dependable output on every winter day.

Topography around Orange Farm

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

<h3>Topography of Orange Farm and Surrounding Areas</h3>

Read the full topography description

Orange Farm is a settlement in Johannesburg’s Gauteng urban region, within the broad Highveld plateau landscape. The surrounding ground is predominantly flat to gently rolling rather than steep mountain terrain. That regional form provides a useful starting point for understanding horizons, but it does not describe the usable space within every developed block. Orange Farm is a populated residential community. Its roofs, streets and neighbouring structures are important parts of the solar setting, alongside open areas on the urban edge. Treating the settlement and the countryside toward Walkerville or Meyerton as vacant land would overlook those different uses. <h3>Relief and Layout</h3> Where the ground is relatively level, an array can often use a more regular row pattern than on a broken hillside. Even here, small changes in ground level can put one row above another, and a nearby building can interrupt a low northern sun. Flat terrain is not the same as a shade-free collecting surface. Shallow depressions and local drainage lines form a different part of the landscape from a level-looking roof or a raised plot. Their appearance on a dry day does not establish how water moves during rain, and a plateau-wide description cannot assign one soil type or foundation condition throughout Orange Farm. <h3>Settlement and the Wider Urban Edge</h3> The approaches toward other southern Gauteng settlements combine developed land with open and agricultural areas. A field or apparently unused parcel does not establish the absence of competing uses. This prevents a defensible ranking of the west, southwest or southeast as automatically best for a large installation. For roof-mounted arrays, the orientation of existing streets and buildings helps determine the available collecting surface. For a ground-mounted array, the exact plot shape and neighbouring skyline become more important than an assumed granite or quartzite ridge pattern. Roads and electrical infrastructure serve an established urban area, but their presence does not establish cheap access or spare grid capacity for a new project. A site’s solar horizon, usable footprint and electrical connection describe separate parts of the proposal; the broad flatness of the Highveld cannot settle all three.

Technical location reference

Approximate map point used for Orange Farm, South Africa

This coordinate is the calculation reference for Orange Farm, South Africa. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
-26.480900000000000000, 27.869000000000000000
Originally displayed coordinate
lat-26.4809 / long27.869

How the estimate works

How this Orange Farm estimate was calculated

Here is how I calculated the location estimate for Orange Farm, South Africa.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Orange Farm Location estimate includes and leaves out

Use the Orange Farm figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
