Orania, Northern Cape, South Africa presents a very favorable location for year-round solar energy generation, with consistently strong performance across all seasons that makes it well-suited for solar PV installations.

Seasonal Solar Performance

The solar energy output at this location shows excellent productivity throughout the year. Summer delivers the highest generation at 7.90 kWh per day per kW of installed solar capacity, while spring follows closely with 7.80 kWh per day. Even during the lower-production seasons, autumn still provides a solid 5.66 kWh per day, and winter maintains reasonable output at 4.57 kWh per day. This seasonal pattern means that solar installations at Orania can expect their peak performance during the warmer months from September through March, with spring and summer being the ideal times for maximum solar generation. The relatively modest drop in winter production compared to summer (about 42% lower) indicates that solar systems will continue contributing meaningful energy even during the least productive season.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal angle to tilt panels to maximize total year-round production from solar PV is 27 degrees North. This angle has been calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel tilt for each day, and weighting these angles by daily PV potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Considerations

Several local factors could potentially impact solar production at Orania and require consideration during installation planning:

• Dust and Sand Accumulation: The semi-arid climate and occasional dust storms common in this region of South Africa can significantly reduce panel efficiency by blocking sunlight
• Extreme Temperature Fluctuations: The continental climate can produce very hot summer days and cold winter nights, which affects panel efficiency and component longevity
• Hail Events: Occasional severe thunderstorms in the region can produce hail that may damage solar panels
• High UV Exposure: The intense solar radiation that makes this location excellent for energy generation also accelerates degradation of panel materials and mounting systems

Preventative Measures for Optimal Performance

To maximize energy production and system longevity at this location, several preventative measures should be implemented: Regular cleaning schedules are essential, with panels needing cleaning every 2-4 weeks during dry periods and after dust storms. Installing automated cleaning systems or easy-access designs can make maintenance more practical. Choosing panels with anti-reflective coatings that resist dust accumulation will also help maintain efficiency. Temperature management becomes crucial given the extreme heat. Ensuring adequate ventilation beneath panels, using mounting systems that promote airflow, and selecting panels with better high-temperature performance coefficients will help maintain output during peak summer heat. For protection against hail damage, installing panels with tempered glass rated for impact resistance and considering protective screening for particularly vulnerable installations provides important safeguards. Some installers also recommend slightly steeper mounting angles to help hail deflect rather than strike panels directly. UV protection requires selecting high-quality mounting materials and electrical components specifically rated for extreme UV exposure. Regular inspection of wiring, connectors, and mounting hardware helps identify UV-related degradation before it impacts performance. Despite these considerations, Orania's location offers excellent conditions for solar energy generation, and with proper installation practices and maintenance, solar PV systems can achieve outstanding long-term performance at this site.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

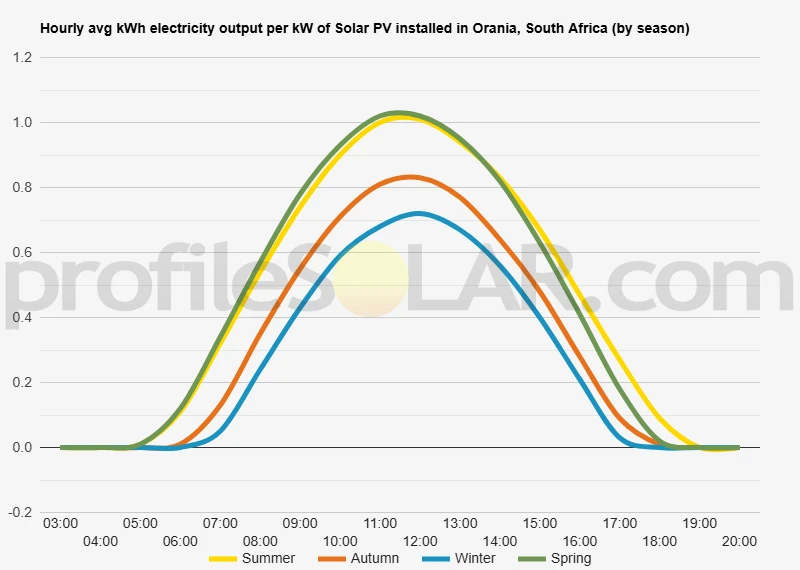

Solar output per kW of installed solar PV by season in Orania

Seasonal solar PV output for Latitude: -29.8081, Longitude: 24.4189 (Orania, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° North in Orania, South Africa

To maximize your solar PV system's energy output in Orania, South Africa (Lat/Long -29.8081, 24.4189) throughout the year, you should tilt your panels at an angle of 27° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Orania, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Orania, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	23° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Orania, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Orania, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Orania, South Africa

Topographical Features of the Orania Region

The landscape surrounding Orania in South Africa presents a predominantly flat to gently undulating terrain characteristic of the Northern Cape Province. This semi-arid region sits within the Great Karoo, where the topography consists mainly of low-lying plains punctuated by occasional scattered hills and rocky outcrops. The Orange River flows nearby, creating a natural boundary and providing the most significant geographical feature in the immediate vicinity. The elevation in this area remains relatively consistent, with gradual changes across the landscape rather than dramatic variations in height. Rolling plains extend in multiple directions from the settlement, broken only by shallow valleys and gentle ridges that barely interrupt the overall flatness of the terrain. These subtle undulations are typical of the Karoo landscape, where ancient geological processes have created a weathered and eroded surface over millions of years.

Soil Composition and Ground Conditions

The ground composition around Orania consists primarily of sandy and clay-based soils with scattered rocky patches. The semi-desert environment has created relatively stable ground conditions with minimal vegetation cover, which reduces the complexity of land preparation for large infrastructure projects. The sparse shrubland and grassland that does exist tends to be low-growing and widely spaced, typical of the region's adaptation to limited rainfall and harsh climatic conditions. Seasonal water courses, known locally as spruits, cut shallow channels through the landscape during periods of rainfall, but these generally remain dry throughout most of the year. The permanent water source provided by the Orange River creates a narrow band of more fertile soil along its banks, while the broader surrounding area maintains the characteristic arid soil composition of the Karoo.

Optimal Areas for Large-Scale Solar Development

The extensive flat plains extending south and east of Orania present ideal conditions for large-scale solar photovoltaic installations. These areas offer several kilometers of relatively level ground with minimal natural obstacles, allowing for efficient panel placement and maintenance access. The consistent elevation and absence of significant hills or valleys eliminate concerns about shading between panel arrays during different times of day and seasons. The western and southwestern regions also demonstrate excellent potential, where the landscape opens into broad, uninterrupted plains. These areas benefit from stable ground conditions and minimal vegetation that would require clearing. The low population density in these directions ensures abundant available land without conflicts over existing land use or proximity to residential areas. Areas immediately adjacent to existing infrastructure, particularly those with access to the regional road network, would provide additional advantages for construction logistics and ongoing maintenance operations. The relatively firm ground composition in most directions from Orania supports heavy equipment access without the need for extensive ground preparation that might be required in more challenging terrain. The northern areas, while also topographically suitable, lie closer to the Orange River and its associated flood plains. Although these regions remain largely flat and accessible, the slightly higher moisture content and occasional flooding risk make the southern and eastern plains more attractive for permanent solar installations requiring long-term stability and minimal environmental interference.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
