Piketberg, Western Cape, South Africa presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Energy Production Patterns

The solar energy output at Piketberg shows dramatic seasonal swings typical of its Southern Sub Tropics location. Summer delivers the strongest performance at 8.94 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 7.28 kWh per day per kW, offering nearly comparable output to summer months. However, the location experiences substantial drops in productivity during cooler months. Autumn production falls to 5.19 kWh per day per kW, while winter represents the most challenging period with only 3.68 kWh per day per kW of installed capacity.

Optimal Installation Configuration

For fixed panel installations at Piketberg, Western Cape, the ideal tilt angle is 29 degrees facing North to maximize total year-round solar production. This specific angle has been calculated to optimize energy capture across all seasons by accounting for the sun's varying elevation throughout the year and weighting for solar irradiance potential.

Local Factors Affecting Solar Performance

Several environmental and weather factors in the Piketberg area can significantly impact solar energy production:

• Dust and Agricultural Particles: The region's agricultural activities and semi-arid climate can lead to dust accumulation on solar panels, reducing efficiency
• Seasonal Rainfall Patterns: Limited winter rainfall may result in prolonged periods without natural panel cleaning
• Wind-Borne Debris: Strong seasonal winds can deposit sand, leaves, and other debris on panel surfaces
• Temperature Extremes: High summer temperatures can reduce panel efficiency despite increased solar radiation

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies prove effective:

• Regular Cleaning Schedule: Implement monthly panel cleaning during dry seasons and quarterly deep cleaning
• Proper Mounting Height: Install panels at sufficient height to minimize dust accumulation and allow air circulation for cooling
• Quality Mounting Systems: Use robust mounting hardware designed to withstand strong winds while maintaining optimal tilt angles
• Monitoring Systems: Install performance monitoring to quickly identify efficiency drops caused by soiling or debris

Despite the seasonal variations and local challenges, Piketberg's strong summer and spring solar production potential makes it a viable location for solar PV installations, particularly when proper maintenance and installation practices are followed.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

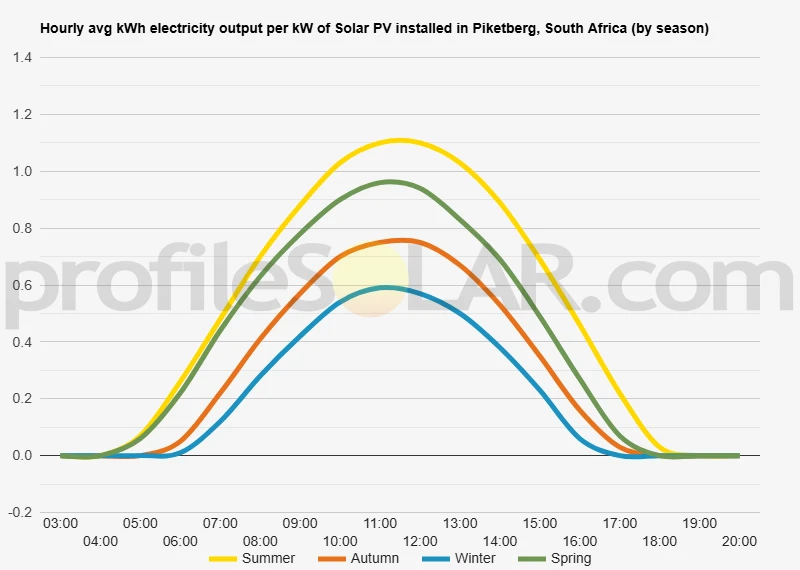

Solar output per kW of installed solar PV by season in Piketberg

Seasonal solar PV output for Latitude: -32.896, Longitude: 18.7666 (Piketberg, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Piketberg, South Africa

To maximize your solar PV system's energy output in Piketberg, South Africa (Lat/Long -32.896, 18.7666) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Piketberg, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Piketberg, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° North in Summer	38° North in Autumn	48° North in Winter	26° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Piketberg, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Piketberg, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Piketberg, South Africa

Topography Around Piketberg

Piketberg sits in the Western Cape province of South Africa, nestled within a distinctive landscape characterized by rolling hills and mountainous terrain. The town lies at the foot of the Piketberg Mountains, which form part of the larger Cape Fold Belt system. These mountains rise dramatically from the surrounding plains, creating a striking backdrop to the north and east of the settlement.

The immediate area around Piketberg features undulating terrain with moderate elevation changes. To the west and southwest, the landscape gradually flattens as it extends toward the Atlantic coastal plain. This transition zone between the mountainous interior and the coastal lowlands creates varied topography with gentle slopes, small valleys, and elevated plateaus.

The region displays typical Mediterranean-climate vegetation, with fynbos covering much of the natural landscape. Agricultural activities dominate the flatter areas, particularly wheat farming and fruit cultivation, which have shaped the land use patterns across the broader Swartland region.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Piketberg would be found on the relatively flat to gently sloping terrain west and southwest of the town. These areas offer several advantages for solar development, including minimal grading requirements and reduced construction complexity compared to the steeper mountainous zones.

The elevated plateaus and broad valley floors in the surrounding Swartland region present excellent opportunities for solar farms. These locations typically feature stable ground conditions and adequate space for extensive panel arrays. The terrain in these areas generally slopes gently enough to allow for optimal panel orientation while maintaining efficient drainage.

Areas closer to existing agricultural lands may prove particularly attractive for solar development, as the infrastructure networks including roads and electrical connections are often already established. The transition zones between the coastal plain and the foothills provide a good balance of flat terrain and elevation, potentially offering favorable conditions for solar installations while avoiding the more challenging mountainous topography to the north and east.

The flatter agricultural areas extending westward toward towns like Moorreesburg would likely present the most straightforward development opportunities, with minimal topographical constraints and good accessibility for construction and maintenance activities.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
