Plettenberg Bay, Western Cape, South Africa presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant seasonal fluctuation. Summer delivers the strongest performance at 7.55kWh per day per kW of installed capacity, making it the optimal season for solar generation. Spring follows as the second-best performing season with 6.33kWh per day per kW, offering solid energy production during this transitional period. However, the location experiences considerably reduced solar output during cooler months. Autumn drops to 4.32kWh per day per kW, while winter shows the weakest performance at just 3.28kWh per day per kW of installed solar capacity.

Optimal Installation Configuration

For maximum year-round energy production at Plettenberg Bay, Western Cape, solar panels should be installed at a fixed tilt angle of 30 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles against actual solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this coastal location:

• Salt air corrosion from the nearby ocean can degrade panel frames, mounting hardware, and electrical connections over time
• Coastal winds carrying sand and salt particles may accumulate on panel surfaces, reducing light transmission
• Higher humidity levels common in coastal areas can affect electrical components and create condensation issues
• Potential for increased cloud cover and marine layer formation, particularly during certain seasons

Preventative Installation Measures

To maximize energy production despite these challenges, several protective measures should be implemented during installation:

• Use marine-grade aluminum frames and stainless steel mounting hardware specifically designed to resist salt corrosion
• Apply protective coatings to all metal components and ensure proper grounding systems
• Install panels with adequate spacing for airflow to reduce humidity buildup and allow for easier cleaning access
• Establish a regular cleaning schedule to remove salt, sand, and other debris from panel surfaces
• Use sealed electrical enclosures rated for marine environments and ensure all wiring connections are properly protected

Despite the seasonal variations and coastal challenges, Plettenberg Bay can still provide reasonable solar energy returns, particularly during the summer and spring months when output is strongest.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

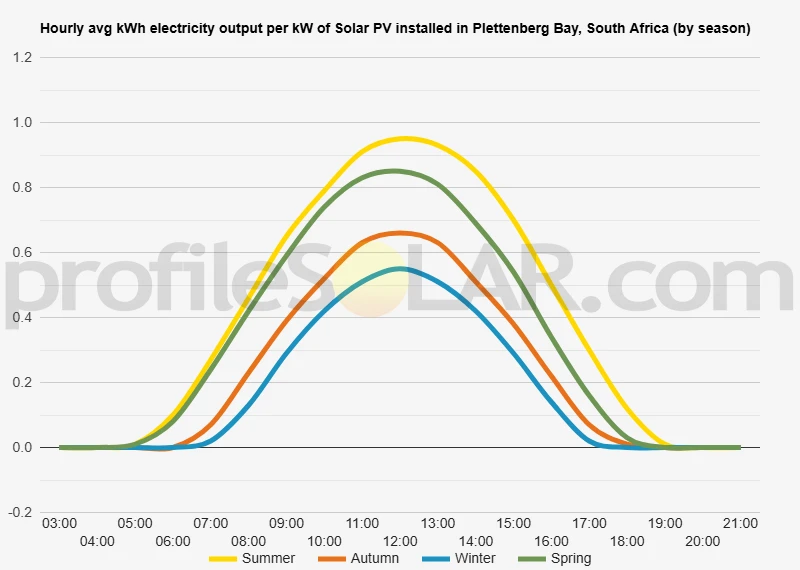

Solar output per kW of installed solar PV by season in Plettenberg Bay

Seasonal solar PV output for Latitude: -34.0462, Longitude: 23.373 (Plettenberg Bay, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° North in Plettenberg Bay, South Africa

To maximize your solar PV system's energy output in Plettenberg Bay, South Africa (Lat/Long -34.0462, 23.373) throughout the year, you should tilt your panels at an angle of 30° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Plettenberg Bay, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Plettenberg Bay, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Plettenberg Bay, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Plettenberg Bay, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Plettenberg Bay, South Africa

Topographical Features of Plettenberg Bay

Plettenberg Bay sits dramatically along South Africa's Garden Route, where the Indian Ocean meets a landscape of remarkable diversity. The town itself nestles in a crescent-shaped bay protected by rocky headlands, with the Tsitsikamma Mountains rising inland to create a stunning backdrop. The immediate coastal area features a mix of sandy beaches, rocky outcrops, and rolling hills that gradually climb from sea level to heights of several hundred meters within just a few kilometers of the shore. The region's topography is characterized by undulating terrain that transitions from coastal plains to foothills and eventually into the more substantial mountain ranges of the interior. Ancient marine terraces are evident throughout the area, creating natural platforms at various elevations above the current sea level. These terraced formations, combined with gentle slopes and valleys, provide interesting opportunities for development while maintaining the area's scenic character. Inland from Plettenberg Bay, the landscape becomes increasingly hilly with numerous river valleys cutting through the terrain. The Bitou River and its tributaries have carved winding valleys through the landscape, creating a patchwork of elevated plateaus and gentle depressions. Indigenous forests still cover many of the steeper slopes and valley bottoms, while the more open areas have been converted to agriculture or residential development.

Climate and Environmental Considerations

The coastal location brings a temperate oceanic climate with relatively mild temperatures throughout the year. The proximity to the Indian Ocean moderates temperature extremes, though the region does experience seasonal variations in weather patterns. Winter months typically bring more cloud cover and precipitation, while summer months tend to be clearer with more consistent weather conditions. Wind patterns in the area are influenced by both the ocean and the mountainous terrain. Coastal breezes are common, particularly during warmer months, while the inland topography can create localized wind effects in valleys and on exposed ridges. The combination of ocean influence and varied elevation creates distinct microclimates within relatively short distances.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations lie inland from the immediate coastal zone, where the terrain becomes more stable and less influenced by coastal weather patterns. The elevated plateaus and gentle slopes found 10-20 kilometers inland from Plettenberg Bay offer excellent potential, particularly in areas where the natural vegetation has already been modified for agricultural use. The Crags area, situated on higher ground northeast of Plettenberg Bay, presents particularly favorable conditions. This elevated plateau region features relatively flat to gently sloping terrain with good access to existing infrastructure. The slightly inland position reduces the influence of coastal fog and marine weather while maintaining reasonable proximity to transmission infrastructure and transportation networks. Areas along the N2 highway corridor, particularly on the elevated sections between Plettenberg Bay and Knysna, offer additional potential for solar development. These locations benefit from existing road access and proximity to electrical infrastructure while occupying terrain that is less environmentally sensitive than the forested valleys or pristine coastal areas. The farmlands on the elevated terraces north and northwest of town provide another category of suitable locations. These areas typically feature open landscapes with minimal shading from trees or topographical features, and the existing agricultural use suggests that large-scale development would have fewer environmental constraints compared to areas with intact natural vegetation. When considering solar installations in this region, the varied topography actually provides advantages in terms of site selection flexibility. The numerous elevated areas offer opportunities to position installations for optimal solar exposure while avoiding the more environmentally sensitive forested valleys and wetland areas that are scattered throughout the landscape.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
