Solar PV Analysis of Potchefstroom, South Africa
Potchefstroom, North West, South Africa, is a good location for generating solar energy throughout the year due to its placement in the Southern Sub Tropics. The amount of electricity you can generate from each kilowatt (kW) of installed solar changes with the seasons, but it remains relatively high all year round.
In summer, you can expect around 6.38 kilowatt-hours (kWh) per day for each kW of installed solar; in autumn this drops slightly to 5.81 kWh/day; winter sees a further drop to 4.80 kWh/day; and spring offers the highest output at 7.23 kWh/day per kW.
Therefore, while it's possible to generate substantial amounts of energy all year round at this location, spring would be the ideal time thanks to its higher daily output.
For fixed panel installations at this location, tilting panels at an angle of 25 degrees North will help maximize total yearly production from your solar photovoltaic (PV) system.
However, there are some local factors that could potentially affect your ability to produce solar power here:
1) Dust and dirt accumulation on panels - Potchefstroom is known for dust storms which could cover panels and reduce their effectiveness.
Preventative measure: Regular cleaning or installation of automated cleaning systems will keep panels operating optimally.
2) Hailstorms - These can damage or destroy panels.
Preventative measure: Installing sturdy hail-resistant panels or using protective covers during severe weather conditions would help protect against hail damage.
3) High temperatures - Although sunlight is crucial for PV systems' operation, extreme heat can actually decrease their efficiency.
Preventative measure: Installing cooling mechanisms or ensuring adequate ventilation around your PV system could help maintain optimal operational temperatures and prevent overheating issues.
Overall though these potential impediments are manageable with proper care and maintenance strategies in place making Potchefstroom a viable choice for solar energy production.
Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in South Africa by location

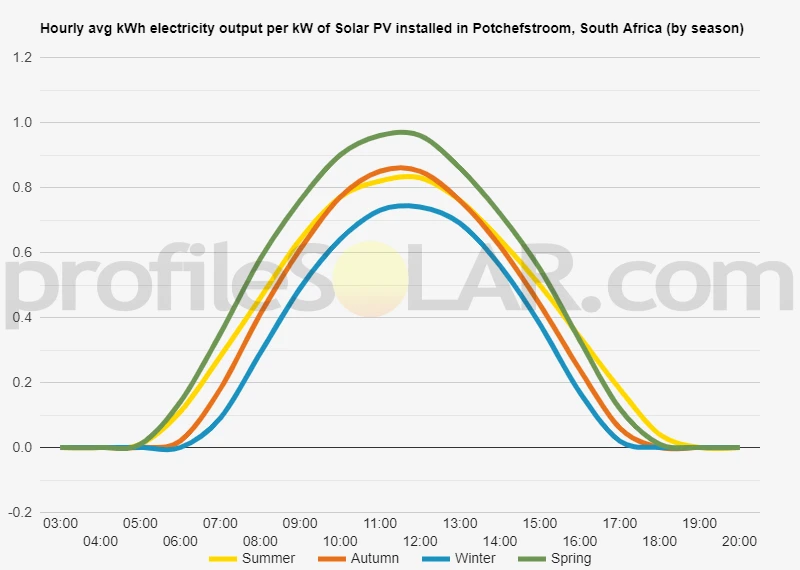

Solar output per kW of installed solar PV by season in Potchefstroom
Seasonal solar PV output for Latitude: -26.7168, Longitude: 27.1054 (Potchefstroom, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 25° North in Potchefstroom, South Africa
To maximize your solar PV system's energy output in Potchefstroom, South Africa (Lat/Long -26.7168, 27.1054) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Potchefstroom, South Africa
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Potchefstroom, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 11° North in Summer | 32° North in Autumn | 42° North in Winter | 20° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Potchefstroom, South Africa
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Potchefstroom, South Africa.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Potchefstroom, South Africa
Potchefstroom, located in the North West province of South Africa, is situated on relatively flat terrain. The area is part of the larger Highveld region which consists mainly of rolling grasslands and scattered trees. Elevation varies between 1,300 to 1,500 meters above sea level.
The region has a semi-arid climate with plenty of sunshine throughout the year making it suitable for large-scale solar photovoltaic (PV) installations. However, specific siting decisions would need to consider factors like land availability and use, proximity to transmission lines or load centers (for grid-tied systems), environmental impact considerations among others.
Areas such as open fields or farmlands could be potential sites for large-scale solar PV projects given their high sun exposure and minimal obstructions. Additionally, rooftops in urban areas like Potchefstroom city could also be used for smaller scale distributed solar PV systems.
In terms of specific nearby areas suited for this purpose:
1. Mooibank: Located eastward from Potchefstroom along N12 highway.
2. Vyfhoek: A rural area north-west from Potchefstroom.
3. Boskop Dam Nature Reserve: Although it's a nature reserve with possible restrictions on development activities but its location north-east from Potchefstroom offers good sunlight exposure.
4. Areas southward along R53 road towards Parys also offer vast open lands that could potentially host large-scale solar farms.
These are just examples based on topography and sun exposure; actual feasibility would depend upon detailed site assessments including aspects like land ownership status, local regulations etc., not covered here due to lack of data at this granularity level.
South Africa solar PV Stats as a country
South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in South Africa?
Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
