Solar Energy Production in Richmond, South Africa

Richmond, South Africa, located at latitude -29.7532 and longitude 30.9306 in the Southern Sub Tropics, offers a favorable location for solar PV energy generation throughout the year. The seasonal output shows good consistency across different times of the year, with some expected variation between summer and winter months. The energy production data shows a strong solar resource with daily outputs per kilowatt of installed capacity ranging from 5.61kWh in summer to 4.03kWh in winter. Spring and autumn seasons deliver 5.41kWh and 5.03kWh per day respectively, demonstrating that Richmond maintains solid solar generation potential even during transitional seasons.

Seasonal Performance

Summer naturally provides the peak production period with 5.61kWh daily output per installed kilowatt. This transitions to a still-impressive 5.03kWh in autumn before reaching the annual minimum during winter at 4.03kWh. Spring brings a significant recovery to 5.41kWh, nearly matching summer productivity. The difference between the best and worst seasons is approximately 28%, which is relatively modest compared to many locations globally. This indicates that Richmond offers reasonably consistent solar production throughout the year, making it suitable for year-round solar energy generation.

Optimal Panel Installation

For fixed solar panel installations in Richmond, the ideal tilt angle is 28 degrees facing North. This specific angle maximizes the total year-round energy production, taking into account the location's position in the Southern Hemisphere and the seasonal variations in the sun's position.

Environmental and Weather Considerations

Richmond faces several environmental factors that could impact solar production. The region experiences occasional dust storms that can temporarily reduce panel efficiency by creating a layer of dust that blocks sunlight. Regular cleaning maintenance is recommended, with automated cleaning systems being particularly beneficial during dry seasons. The area also experiences summer thunderstorms that can bring hail, posing a physical risk to solar panels. Installing hail-resistant panels with tempered glass and ensuring proper insurance coverage are prudent precautions. During winter months, morning fog can sometimes delay peak production hours. This is already factored into the winter production figures but should be considered when planning system capacity. Additionally, positioning panels slightly higher than minimum requirements can help reduce the impact of ground fog on early morning production. While these factors may occasionally affect daily output, they don't significantly diminish Richmond's overall suitability for solar energy production given the strong baseline solar resource available throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

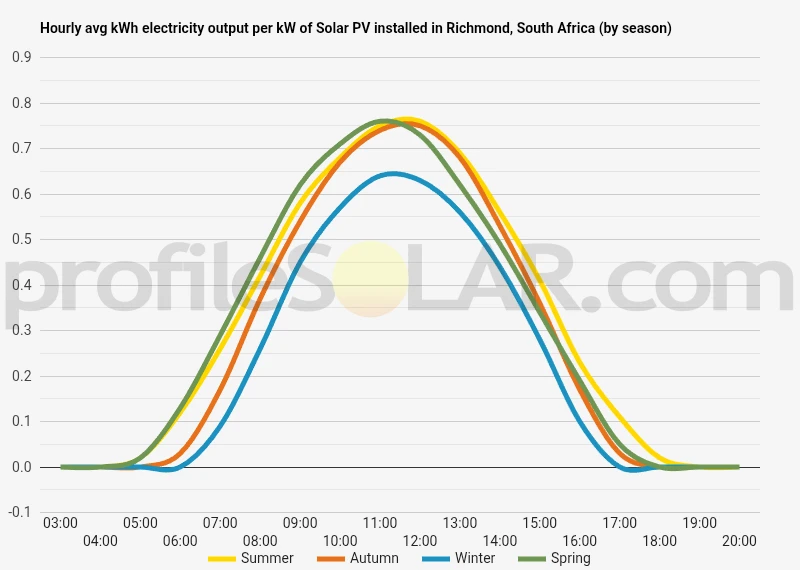

Solar output per kW of installed solar PV by season in Richmond

Seasonal solar PV output for Latitude: -29.7532, Longitude: 30.9306 (Richmond, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° North in Richmond, South Africa

To maximize your solar PV system's energy output in Richmond, South Africa (Lat/Long -29.7532, 30.9306) throughout the year, you should tilt your panels at an angle of 28° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Richmond, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Richmond, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	23° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Richmond, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Richmond, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Richmond, South Africa

Richmond, South Africa, situated at approximately 29.75° South and 30.93° East, is characterized by a diverse and undulating topography typical of KwaZulu-Natal's interior regions. The landscape around Richmond features rolling hills and valleys, with elevations generally ranging between 800 to 1,000 meters above sea level. This area forms part of the transitional zone between the KwaZulu-Natal Midlands and the more mountainous interior of the province. The terrain consists of gentle slopes interspersed with flatter plateaus, creating a patchwork of varying gradients across the region. Several river systems, including tributaries of the Umkomaas River, have carved shallow valleys through the landscape over millennia. These waterways have shaped the local topography, creating natural drainage channels and more steeply inclined areas along their banks. Vegetation in the Richmond area primarily consists of grasslands with scattered patches of indigenous forest, particularly in the more sheltered valleys and along watercourses. This vegetation pattern reflects both the natural conditions and the agricultural history of the region, where much of the land has been utilized for farming activities.

Solar PV Potential in the Region

For large-scale solar photovoltaic (PV) installations, several areas around Richmond offer promising conditions. The most suitable locations would be the gently sloping north-facing hills and plateaus that receive consistent solar exposure throughout the day. These areas benefit from their orientation toward the equator, maximizing the capture of solar radiation. The relatively flat plateaus to the north and northwest of Richmond present particularly favorable conditions for solar PV development. These areas combine advantageous topographical features - namely their flatness, which reduces installation complexity and cost - with good solar exposure. The reduced vegetation density in these areas also minimizes clearing requirements for installation. Areas to avoid would include the steeper south-facing slopes, which receive less direct sunlight, and the valley bottoms, which may experience more cloud cover and morning fog, particularly during winter months. Additionally, the riparian zones along rivers should be avoided due to environmental sensitivity and potential flooding risks. The road infrastructure around Richmond provides reasonable access to many of these potential solar PV sites, which is an important consideration for construction and maintenance activities. The proximity to existing electrical infrastructure, including transmission lines connecting to nearby urban centers, further enhances the viability of these locations for solar energy development. Local soil conditions generally consist of relatively stable clayey soils, which can provide adequate support for solar array foundations without excessive engineering requirements. However, site-specific geotechnical assessments would be necessary before any large-scale development. In summary, the most promising areas for large-scale solar PV development around Richmond would be the north-facing gentle slopes and plateau areas, particularly those with good access to existing transportation and electrical infrastructure, while avoiding environmentally sensitive zones and areas with challenging topography.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
