Rustenburg, North West, South Africa, located in the Southern Sub Tropics at coordinates -25.6608, 27.2526, offers a favorable environment for solar PV energy generation throughout the year. The city experiences consistent solar radiation across all seasons, making it an attractive location for solar power installations.

Seasonal Solar Performance

Solar PV systems in Rustenburg demonstrate strong performance across all seasons. Spring stands out as the most productive period, with an impressive 7.11 kWh/day per kW of installed capacity. Summer follows closely with 6.40 kWh/day, while autumn maintains a solid output of 5.85 kWh/day. Even during winter, the region still generates a respectable 4.94 kWh/day, ensuring year-round energy production.

Optimal Panel Positioning

For fixed panel installations in Rustenburg, North West, the ideal tilt angle to maximize year-round solar production is 24 degrees facing North. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the city's latitude and the Earth's elliptical orbit.

Environmental Considerations

While Rustenburg generally offers excellent conditions for solar energy production, there are a few environmental factors to consider:

1. Dust and particulate matter from nearby mining activities
2. Occasional hailstorms during the summer months

To mitigate these issues, regular panel cleaning should be implemented to remove dust buildup. Additionally, installing hail-resistant panels or protective covers can safeguard the system against potential storm damage. These preventative measures will help ensure consistent and optimal energy production throughout the year.

Overall, Rustenburg's climate and geographical location make it an excellent choice for solar PV installations, with high energy output potential across all seasons and minimal environmental challenges that can be effectively managed with proper planning and maintenance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

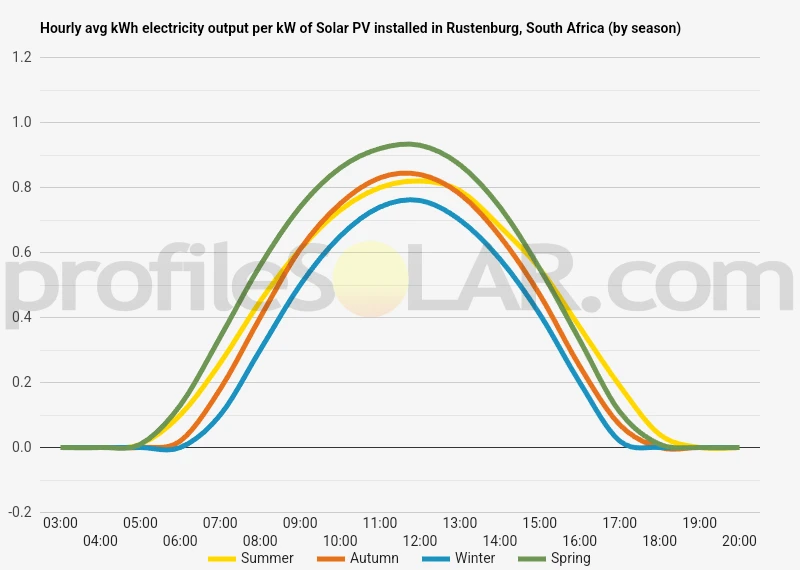

Solar output per kW of installed solar PV by season in Rustenburg

Seasonal solar PV output for Latitude: -25.6608, Longitude: 27.2526 (Rustenburg, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Rustenburg, South Africa

To maximize your solar PV system's energy output in Rustenburg, South Africa (Lat/Long -25.6608, 27.2526) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rustenburg, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rustenburg, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	31° North in Autumn	41° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rustenburg, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rustenburg, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rustenburg, South Africa

Rustenburg, a city in South Africa's North West Province, is situated in a region characterized by diverse and striking topography. The area surrounding Rustenburg features a mix of flat plains, rolling hills, and dramatic mountain ranges, creating a varied landscape that offers both challenges and opportunities for development. To the north and east of Rustenburg, the Magaliesberg mountain range dominates the horizon. These ancient mountains, formed over two billion years ago, create a rugged backdrop to the city and its surroundings. The Magaliesberg range stretches for about 120 kilometers, with peaks reaching heights of up to 1,800 meters above sea level. These mountains not only provide a scenic vista but also influence the local climate and vegetation.

Plains and Bushveld

South and west of Rustenburg, the terrain transitions into more gentle, undulating plains typical of the Bushveld region. This area is characterized by savanna vegetation, with scattered trees and shrubs dotting the landscape. The relatively flat terrain in these directions extends for many kilometers, broken occasionally by small hills and rocky outcrops.

River Valleys

Several rivers and streams cut through the landscape around Rustenburg, creating fertile valleys and adding to the topographical diversity. The Hex River, which flows through Rustenburg itself, has shaped the local geography over millennia, carving out a valley that influences the city's layout and development.

Potential for Solar PV Development

When considering areas near Rustenburg for large-scale solar PV installations, the plains to the south and west of the city offer the most promising locations. These areas benefit from several favorable factors: Firstly, the relatively flat terrain of the Bushveld plains provides ample space for expansive solar arrays without the need for significant land preparation. The open nature of these areas also means there are fewer obstacles that could cast shadows on solar panels, maximizing their exposure to sunlight throughout the day. Secondly, the region experiences high levels of solar radiation, with clear skies for much of the year. This abundance of sunlight is crucial for the efficiency and productivity of solar PV installations. Lastly, the areas south and west of Rustenburg are generally less densely populated than the city itself or the regions closer to the Magaliesberg mountains. This lower population density potentially means fewer land-use conflicts and easier acquisition of large, contiguous plots of land necessary for utility-scale solar projects. However, it's important to note that any large-scale solar PV development would need to carefully consider environmental impacts, particularly on the unique Bushveld ecosystem. Additionally, proximity to existing power infrastructure and the capacity of the local grid to accommodate new solar generation would be crucial factors in determining the most suitable locations for such projects.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
