Soweto, Gauteng, a township in Johannesburg, South Africa, offers a promising location for solar PV energy generation. Situated in the Southern Sub Tropics at coordinates -26.2694, 27.8679, this area experiences varying levels of solar potential throughout the year.

Seasonal Solar Performance

Solar energy production in Soweto fluctuates with the seasons. Spring stands out as the most productive period, with an impressive 7.23 kWh per day for each kilowatt of installed solar capacity. Summer follows closely behind at 6.42 kWh/day, while autumn sees a slight decrease to 5.77 kWh/day. Winter experiences the lowest output at 4.74 kWh/day, but still maintains a respectable level of production.

Optimal Panel Positioning

To maximize year-round solar energy generation in Soweto, Gauteng, fixed solar panels should be tilted at a 25-degree angle facing north. This optimal angle takes into account the location's latitude and the sun's position throughout the year, ensuring the best possible exposure to sunlight across all seasons.

Environmental Considerations

While Soweto's climate is generally favorable for solar energy production, there are a few environmental factors to consider. The area can experience occasional dust storms, which may temporarily reduce panel efficiency. Regular cleaning and maintenance of solar panels can mitigate this issue. Additionally, Soweto's summer thunderstorms might pose a risk to solar installations, but this can be addressed through proper grounding and surge protection measures.

Conclusion

Overall, Soweto presents an ideal location for solar PV energy generation. With high solar potential throughout the year, particularly in spring and summer, and manageable environmental challenges, this area is well-suited for both residential and commercial solar installations. By implementing appropriate maintenance routines and protective measures, solar energy systems in Soweto can operate efficiently and contribute significantly to the region's renewable energy goals.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

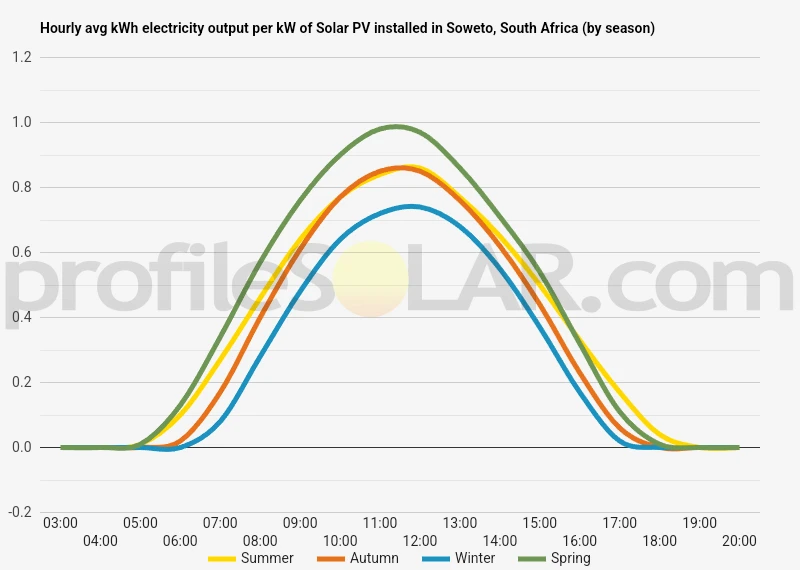

Solar output per kW of installed solar PV by season in Soweto

Seasonal solar PV output for Latitude: -26.2694, Longitude: 27.8679 (Soweto, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Soweto, South Africa

To maximize your solar PV system's energy output in Soweto, South Africa (Lat/Long -26.2694, 27.8679) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Soweto, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Soweto, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Soweto, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Soweto, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Soweto, South Africa

Soweto, located southwest of Johannesburg in South Africa, sits on a relatively flat landscape characterized by gently rolling hills and shallow valleys. The area is part of the Highveld region, which is known for its elevated plateau with an average altitude of around 1,600 meters (5,250 feet) above sea level. The terrain surrounding Soweto is predominantly grassland, with scattered trees and shrubs dotting the landscape. The topography of Soweto and its surrounding areas is largely shaped by the underlying geology, which consists of ancient rock formations dating back millions of years. These formations have been weathered over time, resulting in the current undulating terrain. The area also features some man-made topographical features, such as mine dumps from the region's extensive gold mining history, which create artificial hills in certain parts of the landscape.

Solar PV Potential

When considering areas nearby that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The relatively flat terrain surrounding Soweto offers numerous potential sites for solar farms. The open grasslands to the south and southwest of Soweto are particularly promising, as they provide vast, unobstructed areas with good sun exposure throughout the day. The areas to the west and northwest of Soweto, extending towards the North West province, could be ideal for large-scale solar PV projects due to their expansive, open landscapes and minimal shading from natural or artificial structures. It's worth noting that while the immediate vicinity of Soweto is relatively developed and densely populated, moving further out into the surrounding rural areas provides more opportunities for large-scale solar installations. These areas offer the advantage of lower land costs and fewer potential conflicts with existing urban infrastructure or residential zones. However, any potential solar PV project would need to consider factors beyond just topography, such as proximity to existing power infrastructure, environmental impact assessments, and local land use regulations. The areas to the south and southwest of Soweto, extending into parts of the Free State province, could offer a good balance of suitable topography, available land, and reasonable proximity to existing power distribution networks. In conclusion, while the topography around Soweto is generally favorable for solar PV installations, the most suitable areas for large-scale projects would likely be found in the open grasslands and rural areas extending outward from the township, particularly to the south, southwest, and west. These areas combine the advantages of flat terrain, good sun exposure, and potentially available land for development.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
