Springbok, South Africa represents a highly favorable location for year-round solar energy generation, though with notable seasonal variations that reflect its Southern Sub Tropics positioning at latitude -29.6646, longitude 17.8776.

Seasonal Solar Performance

The solar energy output at this location shows strong performance across all seasons, with summer delivering the highest yields at 9.16kWh per day per kW of installed capacity. Spring follows as the second-best season at 7.88kWh/day per kW, making these two seasons ideal for maximum solar generation. Autumn provides moderate output at 5.89kWh/day per kW, while winter shows the lowest but still respectable production at 4.33kWh/day per kW. This seasonal pattern is typical for Southern Hemisphere locations, where summer months (December through February) coincide with the sun's highest position and longest days, while winter months see reduced solar angles and shorter daylight periods.

Optimal Panel Installation

For fixed panel installations at Springbok, the ideal tilt angle is 26 degrees facing North to maximize total year-round solar production. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to achieve optimal annual energy harvest.

Environmental and Weather Factors

Several local factors could potentially impact solar production at this location:

• Dust and Sand Accumulation: Springbok's location in the Northern Cape's semi-arid region means frequent dust storms and airborne sand particles that can significantly reduce panel efficiency by blocking sunlight
• Extreme Temperature Variations: Desert-like conditions create substantial temperature swings between day and night, which can stress solar panels and reduce their lifespan and efficiency
• Limited Water Availability: The arid climate makes water scarce, complicating regular panel cleaning maintenance
• Hail and Wind Events: Occasional severe weather can damage panels or mounting systems

Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Anti-Soiling Coatings: Apply hydrophobic and oleophobic coatings to panels that help dust slide off more easily and reduce cleaning frequency
• Automated Cleaning Systems: Install dry-cleaning robotic systems or compressed air cleaning mechanisms that don't require water
• Robust Mounting Systems: Use reinforced mounting structures designed to withstand high winds and potential hail impact
• Temperature Management: Ensure adequate ventilation beneath panels and consider temperature-resistant panel types rated for extreme heat
• Regular Maintenance Schedule: Implement frequent inspection and cleaning routines, particularly during dusty seasons

Despite these environmental challenges, Springbok's consistently high solar irradiance levels and minimal cloud cover throughout most of the year make it an excellent location for solar energy generation when proper installation and maintenance practices are followed.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

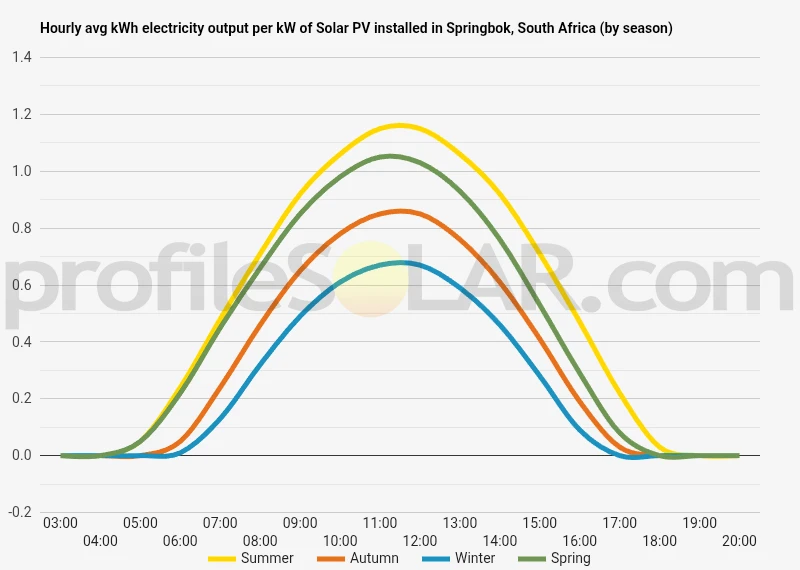

Solar output per kW of installed solar PV by season in Springbok

Seasonal solar PV output for Latitude: -29.6646, Longitude: 17.8776 (Springbok, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Springbok, South Africa

To maximize your solar PV system's energy output in Springbok, South Africa (Lat/Long -29.6646, 17.8776) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Springbok, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Springbok, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	23° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Springbok, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Springbok, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Springbok, South Africa

Topography Around Springbok

Springbok sits in the heart of South Africa's Northern Cape province, positioned within the distinctive landscape of Namaqualand. The town is located at an elevation of approximately 1,000 meters above sea level, nestled in a valley surrounded by the rugged Kamiesberg mountain range to the east and the Spektakel Mountains to the west. This mountainous terrain creates a dramatic backdrop of rocky outcrops, steep slopes, and scattered koppies that define the regional character.

The immediate area around Springbok features undulating terrain with numerous small hills and ridges interspersed with relatively flat valleys. The landscape is characterized by ancient granite formations and metamorphic rock structures that have been shaped by millions of years of erosion. These geological features create a complex topography of gentle slopes, rocky plateaus, and occasional steep escarpments.

Moving outward from the town center, the terrain gradually transitions from the more broken hill country to broader, flatter expanses typical of the semi-arid Karoo region. To the north and northwest, the land becomes increasingly level as it approaches the Orange River valley, while southward the landscape remains more varied with rolling hills and scattered inselbergs rising from the plains.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Springbok would be the relatively flat to gently sloping areas found primarily to the north and northwest of the town. These areas offer the essential combination of level terrain, good accessibility, and minimal topographical obstacles that could create shading issues for solar arrays.

The broad valleys between the mountain ranges provide excellent opportunities for solar development, particularly those oriented in an east-west direction which allow for optimal north-facing panel placement. The area extending toward the Orange River presents some of the most promising terrain, with extensive flat plains that would require minimal grading and earthwork for installation.

Several plateau areas on the outskirts of the mountainous regions also present viable options for solar development. These elevated flat areas benefit from consistent exposure while avoiding the complications of steep terrain. The key advantage of these locations is their relatively stable geological foundation and reduced risk of water accumulation during the occasional heavy rainfall events.

Areas to avoid for large-scale solar installations include the steep-sided valleys within the Kamiesberg and Spektakel ranges, where irregular terrain would create significant shading problems and installation challenges. The rocky outcrops and areas with significant granite exposure would also present difficulties for foundation work and increase development costs substantially.

The semi-arid climate of the region means vegetation is generally sparse, which reduces environmental clearing requirements in most potential development areas. The combination of favorable topography and minimal vegetation makes many sites around Springbok particularly well-suited for utility-scale solar projects, with the northern and northwestern approaches to the town offering the most promising development opportunities.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
