Solar PV Analysis of Springs, South Africa
Springs, Gauteng, South Africa, located at latitude -26.2477 and longitude 28.4037, offers a favorable environment for solar PV energy generation throughout the year. This location in the Southern Sub Tropics experiences varying levels of solar potential across different seasons.
Seasonal Solar Production
Solar energy production in Springs fluctuates seasonally, with spring being the most productive period. During spring, solar panels can generate an impressive 7.01 kWh per day for each kilowatt of installed capacity. Summer follows closely, producing 6.26 kWh/day, while autumn yields 5.78 kWh/day. Winter sees the lowest output at 4.82 kWh/day, but still maintains a respectable level of production.
Optimal Panel Positioning
To maximize year-round solar energy production in Springs, Gauteng, fixed solar panels should be tilted at a 25-degree angle facing north. This optimal angle ensures the panels capture the most sunlight throughout the year, accounting for the Earth's elliptical orbit and the location's specific latitude.
Environmental Considerations
While Springs generally offers good conditions for solar energy production, there are a few environmental factors to consider:
- Dust and pollution: Springs' proximity to mining areas may lead to increased dust in the air, potentially reducing panel efficiency.
- Occasional hailstorms: The region experiences infrequent but sometimes severe hailstorms that could damage solar panels.
Preventative Measures
To mitigate these environmental challenges and ensure optimal solar production, consider implementing the following measures:
1. Regular cleaning: Establish a routine cleaning schedule for the panels to remove dust and debris, maintaining maximum efficiency.
2. Protective coverings: Install hail-resistant panels or additional protective coverings to safeguard against potential hail damage.
3. Weather monitoring: Implement a weather monitoring system to track potential hailstorms and activate protective measures when necessary.
By addressing these factors, solar installations in Springs can maintain high levels of energy production throughout the year, taking full advantage of the location's favorable solar conditions.
Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in South Africa by location

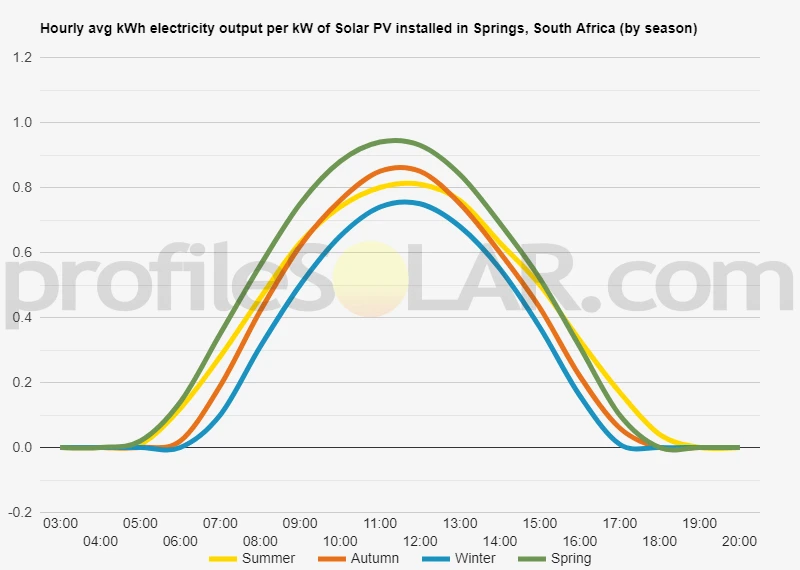

Solar output per kW of installed solar PV by season in Springs
Seasonal solar PV output for Latitude: -26.2477, Longitude: 28.4037 (Springs, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 25° North in Springs, South Africa
To maximize your solar PV system's energy output in Springs, South Africa (Lat/Long -26.2477, 28.4037) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Springs, South Africa
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Springs, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 10° North in Summer | 32° North in Autumn | 42° North in Winter | 20° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Springs, South Africa
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Springs, South Africa.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Springs, South Africa
The area around Springs, South Africa, is characterized by a relatively flat to gently undulating landscape. This region, known as the Highveld, is a high-altitude plateau that covers much of the northeastern part of South Africa. The terrain in and around Springs typically ranges from about 1,500 to 1,700 meters above sea level.
The topography of this area is largely shaped by its geological history, with ancient rock formations underlying the surface. The landscape features wide, open spaces with occasional low hills and shallow valleys. Natural vegetation in the region consists mainly of grasslands, with some scattered trees and shrubs.
Due to extensive mining activities in the past, particularly gold mining, some areas near Springs may have altered topography, including mine dumps and tailings. These artificial features can create small, localized variations in the otherwise predominantly flat terrain.
Areas Suitable for Large-Scale Solar PV
For large-scale solar photovoltaic (PV) installations, the areas most suited would typically be those that offer the following characteristics:
- Flat or gently sloping land: The relatively flat terrain around Springs is generally favorable for solar PV installations, as it minimizes the need for extensive land preparation.
- Open spaces with minimal shading: Areas to the east and south of Springs, where there is less urban development, might offer large, unobstructed spaces ideal for solar farms.
- Proximity to existing infrastructure: Locations near power lines and substations would be advantageous for connecting to the grid. Areas close to major roads would also be beneficial for construction and maintenance access.
- Land with low agricultural or ecological value: Unused or degraded land, including some former mining areas (after proper environmental assessment), could be suitable for solar PV development without compromising valuable farmland or natural habitats.
Specific areas that might be worth investigating for large-scale solar PV installations include the open lands between Springs and Nigel to the south, or the areas east of Springs towards Devon. However, detailed site-specific assessments would be necessary to determine the most suitable locations, taking into account factors such as land ownership, environmental considerations, and local regulations.
South Africa solar PV Stats as a country
South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in South Africa?
Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
