Stella, North West, South Africa presents an excellent location for year-round solar PV energy generation, situated in the Southern Sub Tropics at coordinates -26.5493, 24.8686.

Solar Energy Production Performance

The solar energy output data reveals consistently strong performance throughout all seasons. Spring emerges as the peak production period, delivering an impressive 7.95kWh per day per kW of installed solar capacity. Summer follows closely with 6.97kWh/day, while autumn maintains solid output at 5.97kWh/day. Even during winter, the location produces a respectable 4.90kWh/day per kW. This seasonal variation demonstrates that Stella experiences only moderate fluctuations in solar production, making it highly reliable for consistent energy generation. The relatively high winter output of 4.90kWh/day indicates that even during the least productive season, solar installations will continue generating substantial electricity.

Optimal Installation Configuration

For maximum year-round solar production at Stella, North West, fixed solar panels should be tilted at 25 degrees facing North. This optimal angle has been calculated by analyzing daily solar elevation angles at this specific latitude, weighting these angles by daily photovoltaic potential using solar irradiance data, and accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at this location:

• Dust accumulation: The semi-arid climate typical of this region can lead to dust and sand buildup on solar panels, reducing their efficiency over time
• Seasonal rainfall patterns: While beneficial for natural panel cleaning, irregular rainfall may result in extended periods of dust accumulation
• High temperatures: Extreme summer heat can reduce panel efficiency, as photovoltaic cells perform less efficiently at very high temperatures
• Hail risk: Thunderstorms during summer months may pose a risk of hail damage to solar installations

Preventative Measures for Optimal Performance

To maximize solar energy production and protect installations at Stella, North West, several preventative measures should be implemented:

• Regular cleaning schedule: Establish monthly panel cleaning routines during dry periods, with automated cleaning systems being ideal for larger installations
• Proper ventilation: Install panels with adequate air circulation underneath to prevent overheating and maintain optimal operating temperatures
• Hail protection: Use tempered glass panels rated for hail impact and consider protective screening for high-value installations
• Quality mounting systems: Employ robust mounting structures designed to withstand strong winds and temperature fluctuations
• Monitoring systems: Install performance monitoring to quickly identify efficiency drops that may indicate maintenance needs

Despite these considerations, Stella's location offers exceptional solar energy potential with strong, consistent output across all seasons, making it highly suitable for both residential and commercial solar installations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

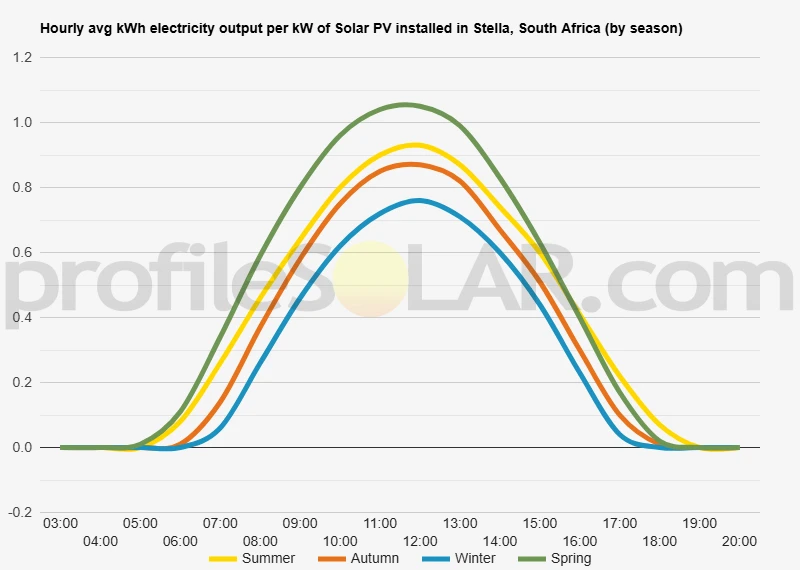

Solar output per kW of installed solar PV by season in Stella

Seasonal solar PV output for Latitude: -26.5493, Longitude: 24.8686 (Stella, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Stella, South Africa

To maximize your solar PV system's energy output in Stella, South Africa (Lat/Long -26.5493, 24.8686) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Stella, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Stella, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Stella, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Stella, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Stella, South Africa

Topographical Features of the Stella Region

The area around Stella in South Africa is characterized by the relatively flat and gently undulating terrain typical of the interior plateau region. This location sits within the broader Highveld landscape, where the topography consists primarily of open grasslands with minimal elevation changes across large expanses. The terrain features low-lying hills and shallow valleys that create a rolling countryside appearance, but without any dramatic elevation differences that would significantly impact solar installations. The region experiences a semi-arid climate with sparse vegetation coverage, predominantly consisting of scattered shrubs and hardy grasses adapted to the local conditions. The landscape is generally open with few natural obstructions such as dense forests or steep rocky outcrops that might create shading issues for solar installations. Seasonal water courses and small streams traverse the area, but these are typically dry for much of the year and create only minor topographical variations.

Soil Composition and Geological Characteristics

The underlying geology consists primarily of sedimentary rocks and weathered materials that have created relatively stable soil conditions. The surface soils are generally well-drained, which is advantageous for construction activities and reduces concerns about waterlogging during the wet season. The area experiences minimal seismic activity, providing a stable foundation for large-scale infrastructure development. Rock outcrops are occasional rather than dominant features in the landscape, and where they do occur, they tend to be low-profile formations that do not significantly alter the overall flat character of the terrain. The soil composition includes clay and sandy elements that provide adequate bearing capacity for solar mounting systems while allowing for proper drainage.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broad, flat areas that extend in all directions from Stella. These zones offer the advantage of minimal grading requirements, which significantly reduces initial construction costs and environmental disturbance. The open nature of the terrain allows for efficient layout of solar arrays with optimal spacing between rows to minimize inter-row shading. Areas with gentle south-facing slopes would be particularly advantageous, as they can maximize solar exposure while maintaining the practical benefits of the relatively level terrain. The sparse vegetation in these zones means minimal clearing would be required, and the absence of significant tree coverage eliminates ongoing concerns about growing vegetation creating shading problems.

Infrastructure and Access Considerations

The flat topography facilitates the development of access roads and maintenance pathways throughout potential solar installations. The stable ground conditions support heavy equipment movement during construction phases and ongoing maintenance operations. The open landscape also provides flexibility for the routing of electrical transmission infrastructure needed to connect large solar facilities to the electrical grid. Areas closer to existing road networks would offer additional advantages for large-scale development, as the level terrain makes road extension and improvement relatively straightforward compared to more mountainous regions. The combination of stable soils, minimal elevation changes, and open access makes the entire region around Stella well-suited to accommodate substantial solar energy projects with relatively few topographical constraints.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
