Solar Energy Potential in Stilbaai-Wes, Western Cape, South Africa

Stilbaai-Wes, Western Cape, located in South Africa's Southern Sub Tropics, offers a promising location for solar PV energy generation with notable seasonal variations. This coastal location at latitude -34.3646, longitude 21.4137 demonstrates strong solar potential throughout the year, though with significant differences between summer and winter production. The energy output shows a clear seasonal pattern. Summer months are exceptionally productive, generating 7.63kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.41kWh/day. Energy production decreases considerably during autumn (4.31kWh/day) and reaches its lowest point in winter with 3.34kWh/day per kW installed.

Optimal Panel Installation

For fixed solar panel installations in Stilbaai-Wes, Western Cape, the ideal tilt angle to maximize year-round energy production is 30 degrees facing North. This specific angle has been calculated to optimize solar capture throughout the year, accounting for the location's position in the Southern Hemisphere and seasonal sun path variations.

Seasonal Considerations

The substantial difference between summer and winter production (more than double the output) indicates that Stilbaai-Wes experiences significant seasonal variation. This pattern suggests that while the location is excellent for solar energy generation overall, supplementary energy sources might be beneficial during winter months when production drops to its lowest levels.

Environmental and Weather Factors

Several environmental factors could potentially impact solar production in Stilbaai-Wes:

• Coastal salt spray and humidity may accelerate corrosion of solar equipment
• Strong coastal winds could potentially damage inadequately secured installations
• Morning fog or mist common in coastal areas may reduce early-day production

To mitigate these challenges, installations should utilize marine-grade components with corrosion-resistant properties. Panels should be securely mounted using reinforced framing systems designed to withstand coastal wind conditions. Regular cleaning is also essential to remove salt deposits that can accumulate on panel surfaces and reduce efficiency. Despite these considerations, Stilbaai-Wes remains an advantageous location for solar energy generation, particularly during summer and spring months when production values are exceptional. With proper installation techniques addressing the coastal environment, solar PV systems can provide substantial energy throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

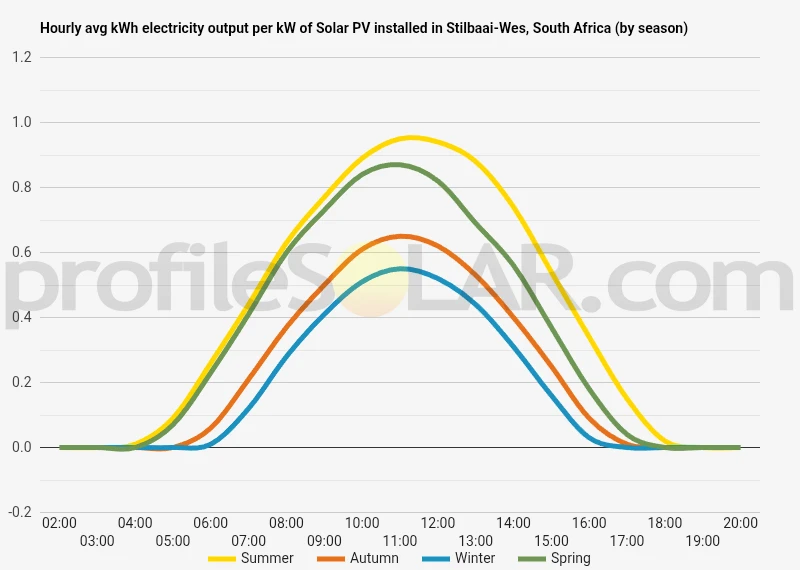

Solar output per kW of installed solar PV by season in Stilbaai-Wes

Seasonal solar PV output for Latitude: -34.3646, Longitude: 21.4137 (Stilbaai-Wes, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° North in Stilbaai-Wes, South Africa

To maximize your solar PV system's energy output in Stilbaai-Wes, South Africa (Lat/Long -34.3646, 21.4137) throughout the year, you should tilt your panels at an angle of 30° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Stilbaai-Wes, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Stilbaai-Wes, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
19° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Stilbaai-Wes, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Stilbaai-Wes, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Stilbaai-Wes, South Africa

The area surrounding Stilbaai-Wes in South Africa presents a diverse and compelling topographical landscape characteristic of the Western Cape's southern coast. Situated at approximately -34.3646 latitude and 21.4137 longitude, this coastal settlement rests within the broader Hessequa Municipality region, exhibiting features shaped by both geological processes and the nearby Indian Ocean.

Coastal Plains and River Valley

Stilbaai-Wes sits on relatively flat coastal plains that gradually rise inland. The area is notably defined by the Goukou River (also known as the Kafferkuils River), which creates a prominent valley as it approaches its estuary at Stilbaai. This river valley introduces variation to what would otherwise be a predominantly level landscape, with gentle slopes leading down to the riverbanks and estuary. The river mouth forms a significant topographical feature, creating wetlands and a lagoon system that interrupts the otherwise linear coastline.

Surrounding Elevations

Moving inland from Stilbaai-Wes, the terrain begins to undulate more significantly. Low hills and ridges become more pronounced, particularly to the north and northwest. These elevations rarely exceed 300 meters above sea level in the immediate vicinity but provide subtle topographical relief to the landscape. The transitions between these elevated areas and the coastal plains are generally gradual rather than abrupt, creating rolling terrain rather than steep escarpments.

Coastal Features

The coastline itself presents a mixture of sandy beaches and rocky outcrops. The bay area that gives Stilbaai its name ("Still Bay" in English) features a curved shoreline protected somewhat from the full force of the Indian Ocean. Moving east and west along the coast from the central bay, the shoreline alternates between accessible beaches and more rugged sections with modest cliffs and rock formations.

Vegetation Impact on Perceived Topography

The natural vegetation of the region, primarily coastal fynbos and renosterveld, influences how the topography is perceived. In areas where taller vegetation exists, the subtle contours of the land may be less apparent, while in more sparsely vegetated sections, even minor topographical features become more visible. Agricultural activity has also modified the natural landscape in parts of the region, creating patterns of fields that follow the contours of the land.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Stilbaai-Wes would be found in the gently sloping terrain to the north and northwest of the settlement. These areas offer several advantages: The inland plains and low hills provide relatively flat or gently sloping terrain that would require minimal grading for installation of solar arrays. Optimal sites would be those with a slight north-facing aspect (in the Southern Hemisphere) to maximize solar exposure throughout the year. Areas slightly elevated from the immediate coastal zone would benefit from reduced exposure to salt spray and coastal fog, both of which can impact solar panel efficiency and longevity. The hills beginning approximately 5-10 kilometers inland offer this advantage while still being close enough to existing infrastructure. The agricultural lands north of Stilbaai-Wes, particularly those currently used for dryland farming, present opportunities for dual-use development where solar installations could coexist with certain types of agriculture, maximizing land productivity. Locations away from the Goukou River valley would minimize concerns about flooding risk while also avoiding the more ecologically sensitive riparian zones. The slightly higher elevations to the north also typically experience less cloud cover than the immediate coastal areas. The terrain between Stilbaai-Wes and Riversdale (approximately 30km to the north) gradually rises and features expansive areas of relatively level ground that would be well-suited for large solar installations, with adequate space for multiple arrays and associated infrastructure. The eastern inland areas toward Jongensfontein also offer suitable topography, with sufficient flat to gently rolling terrain that could accommodate substantial solar developments without requiring excessive earthworks or encountering steep slopes that would complicate construction and maintenance.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
