Swellendam, Western Cape, South Africa presents a moderately good location for year-round solar energy generation, though with significant seasonal variations typical of its Southern Sub Tropics climate zone at coordinates -34.0338, 20.433.

Seasonal Solar Performance

The location shows strong seasonal differences in solar energy output. Summer delivers excellent performance at 7.70 kWh per day per kW of installed capacity, making this the peak season for solar generation. Spring also provides very good output at 6.48 kWh per day per kW, representing the second-best season for solar production. However, winter performance drops considerably to just 3.34 kWh per day per kW, which is less than half the summer output. Autumn sits in the middle range at 4.28 kWh per day per kW. This seasonal variation means solar systems will generate most of their annual energy during the warmer months from September through March.

Optimal Installation Configuration

For maximum year-round solar production at Swellendam, Western Cape, solar panels should be installed at a fixed tilt angle of 30 degrees facing North. This angle has been calculated to optimize total annual energy output by accounting for the sun's changing position throughout the year and weighting for the location's solar irradiance patterns.

Local Environmental Factors

Several environmental factors in the Swellendam region could potentially impact solar panel performance:

• Dust and agricultural particles: The area's farming activities and dry periods can create dust accumulation on panels
• Coastal salt exposure: Being relatively close to the coast, salt-laden air may cause corrosion over time
• Strong winds: The region can experience significant wind events that may affect panel stability
• Occasional hail: Summer thunderstorms may bring hail that could damage panels

Preventative Measures

To maximize solar energy production despite these challenges, several preventative measures should be implemented during installation. Regular cleaning schedules are essential to remove dust and salt buildup, with automated cleaning systems being particularly effective in dusty agricultural areas. Panels and mounting hardware should be specifically rated for coastal environments with enhanced corrosion resistance. Robust mounting systems designed for high wind loads will ensure panels remain secure during strong weather events. Installing panels with tempered glass and considering hail-resistant designs can protect against storm damage. Proper spacing between panel rows and adequate ventilation will help maintain optimal operating temperatures, while regular maintenance inspections can identify and address any environmental damage before it significantly impacts energy production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

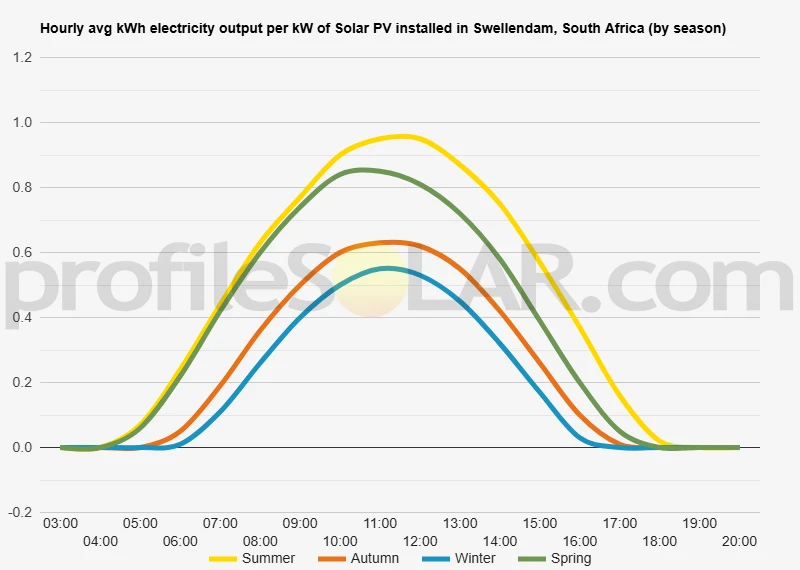

Solar output per kW of installed solar PV by season in Swellendam

Seasonal solar PV output for Latitude: -34.0338, Longitude: 20.433 (Swellendam, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° North in Swellendam, South Africa

To maximize your solar PV system's energy output in Swellendam, South Africa (Lat/Long -34.0338, 20.433) throughout the year, you should tilt your panels at an angle of 30° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Swellendam, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Swellendam, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Swellendam, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Swellendam, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Swellendam, South Africa

Topographical Features Around Swellendam

Swellendam sits in a particularly scenic and topographically diverse region of the Western Cape, nestled between the imposing Langeberg Mountains to the north and the gentler Breede River valley that stretches southward toward the coast. The town itself occupies an elevated position at approximately 200 meters above sea level, providing it with commanding views across the surrounding landscape.

The Langeberg range forms a dramatic backdrop to the north of Swellendam, with peaks rising sharply to elevations exceeding 1,500 meters. These mountains create a natural barrier that influences local weather patterns and provides protection from harsh northerly winds. The mountain slopes are characterized by steep gradients, rocky outcrops, and fynbos vegetation typical of the Cape Floral Kingdom.

To the south and east of Swellendam, the terrain transitions into rolling hills and broader valleys that gradually descend toward the Indian Ocean coastline. The Breede River meanders through this landscape, creating fertile alluvial plains that have long supported agriculture in the region. These river valleys are interspersed with low ridges and undulating farmland that extends for many kilometers in multiple directions.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Swellendam lie primarily in the gently undulating terrain to the south and southeast of the town. These areas offer several key advantages including relatively flat to moderately sloped land that requires minimal grading for solar panel installation, while still providing adequate drainage to prevent waterlogging during the winter rainfall season.

The broad valley floors and terraced hillsides between Swellendam and the coastal areas present excellent opportunities for solar development. These locations benefit from minimal shading throughout the day due to their open aspect and distance from the tall Langeberg peaks. The terrain in these areas typically features gentle slopes facing north or northwest, which naturally optimize solar panel orientation for maximum energy capture in the Southern Hemisphere.

Areas immediately east of Swellendam, where the landscape opens into wider agricultural valleys, also show strong potential for solar installations. The existing farming infrastructure in these regions, including access roads and electrical grid connections, could facilitate the development of renewable energy projects. The relatively stable geology of these sedimentary plains provides good foundation conditions for mounting systems and reduces construction complexity.

Less suitable areas for large-scale solar development include the steep mountain slopes of the Langeberg range, where challenging terrain, frequent cloud cover, and difficult access would significantly increase project costs. Similarly, areas in narrow valleys or those with significant tree cover would face shading issues that could compromise energy generation efficiency.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
