Solar PV Analysis of Uitenhage, South Africa
Uitenhage, Eastern Cape, South Africa, located in the Southern Sub Tropics, offers a promising location for solar PV energy generation. The seasonal variations in electricity output provide insight into the potential for year-round solar power production at this site.
Seasonal Solar Performance
Solar panels in Uitenhage demonstrate strong performance during summer months, with an impressive 7.30 kWh per day output for each kW of installed capacity. Spring follows closely behind, generating 6.33 kWh per day. Autumn sees a moderate decrease to 4.60 kWh per day, while winter experiences the lowest output at 3.69 kWh per day.
These figures indicate that Uitenhage enjoys favorable conditions for solar energy production throughout most of the year. The peak generation period spans from late spring through early autumn, making it an ideal time for maximizing solar energy harvesting.
Optimal Panel Positioning
To achieve maximum year-round solar production at this location, fixed solar panels should be tilted at a 30-degree angle facing North. This orientation allows for optimal exposure to the sun's rays throughout the year, considering Uitenhage's position in the Southern Hemisphere.
Environmental Considerations
While Uitenhage presents favorable conditions for solar energy production, there are a few environmental factors to consider:
- Dust and pollen: The region may experience periods of increased airborne particles, which can accumulate on solar panels and reduce efficiency.
- Occasional overcast days: Although generally sunny, the area may experience cloudy periods, particularly during winter months.
To mitigate these factors, regular panel cleaning and maintenance should be implemented. Additionally, installing high-quality, weather-resistant panels can help ensure consistent performance even during less ideal conditions.
Overall, Uitenhage's location proves to be highly suitable for solar PV energy generation, with ample sunshine throughout the year and manageable environmental challenges. By optimizing panel placement and implementing proper maintenance, solar installations in this area can achieve excellent year-round energy production.
Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in South Africa by location

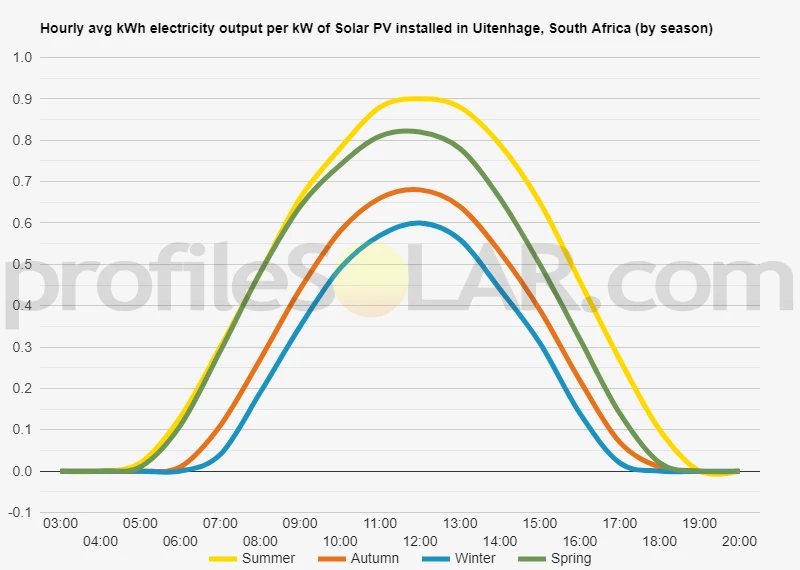

Solar output per kW of installed solar PV by season in Uitenhage
Seasonal solar PV output for Latitude: -33.7621, Longitude: 25.4023 (Uitenhage, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 30° North in Uitenhage, South Africa
To maximize your solar PV system's energy output in Uitenhage, South Africa (Lat/Long -33.7621, 25.4023) throughout the year, you should tilt your panels at an angle of 30° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Uitenhage, South Africa
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Uitenhage, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 18° North in Summer | 39° North in Autumn | 49° North in Winter | 27° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Uitenhage, South Africa
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Uitenhage, South Africa.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Uitenhage, South Africa
The topography around Uitenhage, South Africa, is characterized by a diverse landscape that includes both flat areas and rolling hills. The town itself is situated in a valley, surrounded by gentle slopes and low-lying mountains. To the north and west, the terrain gradually rises towards the Groot Winterhoek Mountains, which form part of the larger Cape Fold Belt mountain range.
To the east and southeast of Uitenhage, the land becomes flatter as it approaches the Indian Ocean coastline. This area is part of the Sundays River Valley, known for its fertile soil and agricultural activities. The Groendal Wilderness Area, located to the northwest of Uitenhage, features more rugged terrain with steep valleys and dense vegetation.
When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would have relatively flat terrain, good sun exposure, and minimal shading from surrounding features. Based on these criteria, the following areas near Uitenhage show promise:
- The flat plains to the east and southeast of Uitenhage, extending towards the coast, offer expansive areas with minimal topographical obstructions. These areas receive ample sunlight throughout the year and have fewer natural barriers that could cast shadows on solar panels.
- The gently rolling hills to the south and southwest of Uitenhage could also be suitable for solar PV installations. While not as flat as the coastal plains, these areas still provide good sun exposure and have sufficient space for large-scale projects.
- Some of the elevated plateaus in the surrounding region, particularly those with a northward-facing aspect, could be excellent locations for solar farms. These areas would benefit from increased sun exposure due to their elevation and orientation.
It's important to note that while topography is a crucial factor in determining suitable locations for solar PV installations, other considerations such as proximity to power infrastructure, land ownership, and environmental impact would also need to be taken into account for any large-scale solar project in the region.
South Africa solar PV Stats as a country
South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in South Africa?
Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
Citation Guide
Article Details for Citation
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Thursday 12th of September 2024
Last Updated: Monday 21st of July 2025
Tell Us About Your Work
We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
Feeling generous?
Share this with your friends!
Compare this location to others worldwide for solar PV potential
The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.
However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
