Solar PV Analysis of Vanderbijlpark, South Africa
Vanderbijlpark, Gauteng, South Africa is a generally good location for generating solar energy throughout the year. The amount of electricity that can be produced by each kilowatt of installed solar panels varies with the seasons: it's highest in spring (7.23kWh/day), followed by summer (6.38kWh/day), autumn (5.81 kWh/day) and lowest in winter (4.80 kWh/day). Therefore, spring and summer are the best times to generate solar power at this location.
For a fixed panel installation, tilting your panels 25 degrees North will give you the most total electricity production over the course of a year.
However, there could be local factors that might reduce how much power you can produce from solar panels here. For instance, Vanderbijlpark experiences thunderstorms during summers which could limit sunlight exposure for some days or cause damage to installations if not properly secured or protected.
To prevent these issues from affecting your energy production too much:
1) You might want to consider installing protective measures like lightning rods or storm-resistant mounts.
2) Regular maintenance checks should be done particularly before and after stormy weather periods.
3) Having an effective drainage system around your installation can help prevent water accumulation that could potentially damage your equipment.
4) It would also be beneficial to have backup storage solutions such as batteries so that excess power generated during peak sunlight hours isn't wasted but stored for use when sunshine is limited.
In conclusion, while Vanderbijlpark has potential as a good site for solar PV generation due to its geographical position and sun exposure levels across different seasons; careful planning considering local weather conditions will ensure optimal performance of installed systems all year round.
Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in South Africa by location

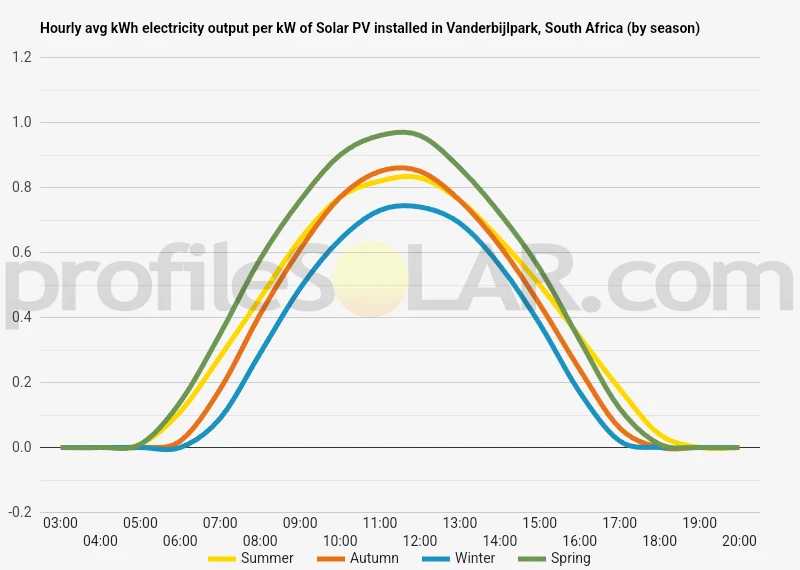

Solar output per kW of installed solar PV by season in Vanderbijlpark
Seasonal solar PV output for Latitude: -26.7005, Longitude: 27.8179 (Vanderbijlpark, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 25° North in Vanderbijlpark, South Africa
To maximize your solar PV system's energy output in Vanderbijlpark, South Africa (Lat/Long -26.7005, 27.8179) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Vanderbijlpark, South Africa
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Vanderbijlpark, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 11° North in Summer | 32° North in Autumn | 42° North in Winter | 20° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Vanderbijlpark, South Africa
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Vanderbijlpark, South Africa.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Vanderbijlpark, South Africa
Vanderbijlpark is located in the northern part of South Africa, and it's a relatively flat region with some slight elevation changes. The area falls within the Highveld, a plateau region of Southern Africa characterized by rolling grasslands and scattered shrubs and trees. It has an average altitude of about 1,500 meters (4,921 feet) above sea level.
As for solar PV installations, large-scale projects would be best suited to areas that have high solar irradiance levels throughout the year and plenty of open space. Considering these factors, regions to the north-west or west of Vanderbijlpark like Parys or Potchefstroom could be suitable due to their comparatively higher annual sunlight hours.
However, it's important to note that successful implementation also depends on other factors such as land use restrictions, proximity to transmission lines or substations (for grid connection), local regulations regarding renewable energy projects etc. Therefore thorough feasibility studies are necessary before deciding on specific locations for large-scale solar PV installations.
South Africa solar PV Stats as a country
South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in South Africa?
Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
