Vanrhynsdorp, South Africa presents a highly favorable location for year-round solar PV energy generation, positioned in the Southern Sub Tropics at coordinates -31.6183, 18.7345. The region demonstrates strong solar energy potential across all seasons, making it an excellent choice for solar installations.

Seasonal Solar Performance

The location shows impressive energy output variation throughout the year, with summer delivering the highest production at 8.86 kWh per day per kW of installed solar capacity. Spring follows as the second-best performing season with 7.53 kWh per day per kW, while autumn produces 5.43 kWh per day per kW. Even during the lowest-producing winter months, the location still generates a respectable 3.91 kWh per day per kW. This seasonal pattern indicates that Vanrhynsdorp experiences its peak solar generation during the warmer months from October through March, with particularly strong performance in summer and spring. The winter dip is relatively modest compared to many other locations, suggesting consistent solar resource availability throughout the year.

Optimal Panel Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 28 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Vanrhynsdorp's location in the Western Cape's semi-arid region presents several environmental factors that could impact solar production:

• Dust accumulation: The area's dry climate and occasional dust storms can lead to significant dust buildup on solar panels, reducing efficiency by 10-25% if left uncleaned
• Strong winds: The region experiences frequent strong winds that can cause structural stress and potential damage to solar installations
• Extreme temperature variations: Daily temperature swings can be substantial, potentially affecting panel efficiency and longevity

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several preventative measures should be implemented: Regular cleaning schedules are essential, with panels requiring cleaning every 2-4 weeks during dry periods to maintain optimal light transmission. Installing automated cleaning systems or easy-access mounting can reduce maintenance costs and ensure consistent performance. Robust mounting systems designed for high wind loads are crucial in this location. Using reinforced rails, secure anchoring systems, and aerodynamic panel layouts can prevent wind damage while maintaining structural integrity during severe weather events. Proper ventilation spacing behind panels helps manage temperature extremes and prevents efficiency losses from overheating. Installing panels with adequate air circulation and using mounting systems that allow airflow can significantly improve performance during hot periods. The combination of strong year-round solar resource and manageable environmental challenges makes Vanrhynsdorp an excellent location for solar PV installations, provided that appropriate design and maintenance considerations are implemented from the outset.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

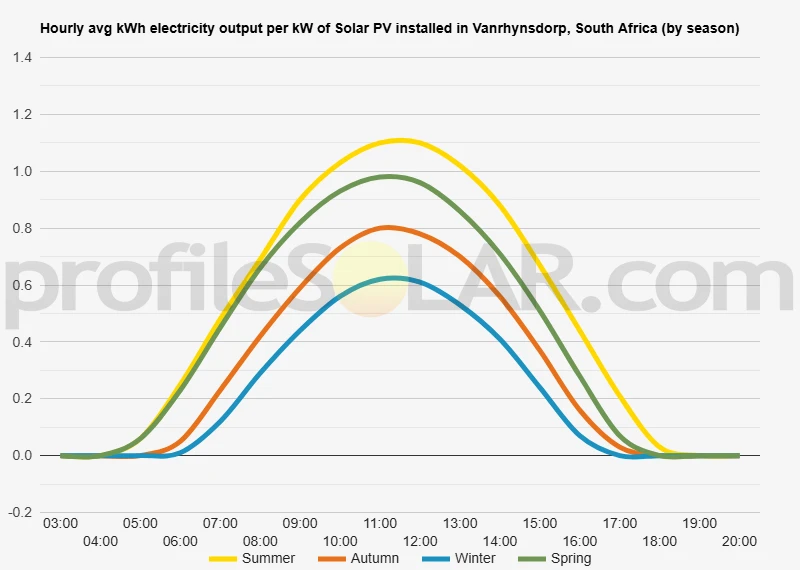

Solar output per kW of installed solar PV by season in Vanrhynsdorp

Seasonal solar PV output for Latitude: -31.6183, Longitude: 18.7345 (Vanrhynsdorp, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° North in Vanrhynsdorp, South Africa

To maximize your solar PV system's energy output in Vanrhynsdorp, South Africa (Lat/Long -31.6183, 18.7345) throughout the year, you should tilt your panels at an angle of 28° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Vanrhynsdorp, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Vanrhynsdorp, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° North in Summer	36° North in Autumn	47° North in Winter	25° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Vanrhynsdorp, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Vanrhynsdorp, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Vanrhynsdorp, South Africa

Topographical Features Around Vanrhynsdorp

Vanrhynsdorp sits in the heart of South Africa's Western Cape province, positioned within the Namaqualand region where the landscape transitions from the coastal plains to the inland plateau. The town is surrounded by a semi-arid terrain characterized by wide, relatively flat valleys interspersed with low hills and rocky outcrops. The elevation around Vanrhynsdorp ranges from approximately 200 to 400 meters above sea level, creating a gently undulating landscape that extends for considerable distances in most directions. The immediate vicinity features expanses of Karoo-type vegetation, with sparse shrubland and hardy succulents dominating the natural flora. This sparse vegetation cover means that much of the surrounding land presents minimal obstacles for large-scale development projects. The terrain is generally stable, consisting of weathered sandstone and shale formations that provide solid foundations for construction activities. To the west and southwest of Vanrhynsdorp, the landscape gradually flattens as it approaches the coastal regions, while to the east and northeast, the terrain becomes more varied with scattered koppies and gentle ridges. The area experiences minimal tree coverage, which eliminates concerns about shading from natural vegetation for solar installations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie primarily to the south and southwest of Vanrhynsdorp, where vast stretches of relatively level ground extend toward the coast. These areas offer several advantages including consistent topography, minimal slope variations, and excellent accessibility via existing road networks. The terrain in these directions is predominantly flat to gently rolling, which reduces the complexity and cost of site preparation and panel installation. The northeastern quadrant around Vanrhynsdorp also presents excellent opportunities for solar development. This region features broad valleys with minimal elevation changes and sparse natural vegetation. The substrate in these areas consists mainly of stable geological formations that can easily support the infrastructure requirements of large solar arrays. Areas immediately north of the town offer additional potential, particularly where the landscape opens into wide plains that stretch toward the Orange River region. These locations benefit from excellent exposure to prevailing weather patterns and minimal topographical obstacles that could create shading issues during different seasons. The southeastern areas, while slightly more undulating, still present viable options for solar development, particularly where developers can work with the natural contours of the land. The key advantage throughout the Vanrhynsdorp region is the absence of significant forests, major water bodies, or steep terrain that would complicate large-scale solar installations.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
