Solar PV Analysis of Ventersdorp, South Africa
Ventersdorp, North West, South Africa, located at latitude -26.318 and longitude 26.8079, offers a promising environment for solar PV energy generation throughout the year. This location in the Southern Sub Tropics experiences varying levels of solar potential across different seasons, providing consistent opportunities for renewable energy production.
Seasonal Solar Performance
The solar PV output in Ventersdorp demonstrates notable fluctuations across seasons. Spring emerges as the most productive period, with an impressive 7.59 kWh per day for each kilowatt of installed solar capacity. Summer follows closely, generating 6.62 kWh/day, while autumn yields 5.84 kWh/day. Winter, as expected, shows the lowest output at 4.84 kWh/day, but still maintains a respectable level of energy production.
Optimal Panel Installation
To maximize year-round solar energy production in Ventersdorp, North West, fixed solar panels should be tilted at a 25-degree angle facing north. This optimal tilt angle takes into account the location's latitude, seasonal sun paths, and daily solar elevation angles, ensuring the panels capture the most sunlight throughout the year.
Environmental Considerations
While Ventersdorp generally offers favorable conditions for solar energy production, there are a few environmental factors to consider. The region can experience occasional dust storms, which may temporarily reduce panel efficiency. To mitigate this issue, regular cleaning and maintenance of solar panels is crucial. Additionally, implementing dust-resistant coatings on the panels can help maintain optimal performance.
Hailstorms, though infrequent, can pose a risk to solar installations in this area. To protect against potential damage, it's advisable to use impact-resistant solar panels or install protective covers that can be deployed during severe weather events.
Conclusion
Overall, Ventersdorp presents an ideal location for solar PV energy generation. With its consistent solar potential throughout the year and particularly strong performance in spring and summer, this South African town offers excellent opportunities for sustainable energy production. By addressing potential environmental challenges through proper installation techniques and maintenance practices, solar energy systems in Ventersdorp can operate at peak efficiency, contributing significantly to the region's renewable energy goals.
Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in South Africa by location

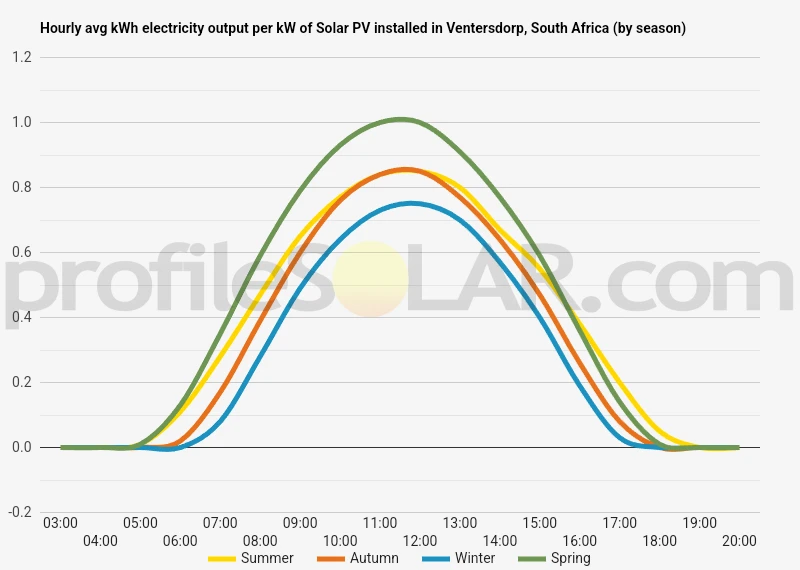

Solar output per kW of installed solar PV by season in Ventersdorp
Seasonal solar PV output for Latitude: -26.318, Longitude: 26.8079 (Ventersdorp, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 25° North in Ventersdorp, South Africa
To maximize your solar PV system's energy output in Ventersdorp, South Africa (Lat/Long -26.318, 26.8079) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Ventersdorp, South Africa
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ventersdorp, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 10° North in Summer | 32° North in Autumn | 42° North in Winter | 20° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Ventersdorp, South Africa
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ventersdorp, South Africa.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Ventersdorp, South Africa
The area around Ventersdorp, South Africa, is characterized by a relatively flat to gently undulating landscape. This region is part of the Highveld, a large plateau that covers much of the interior of South Africa. The topography consists of wide, open plains with occasional low hills and shallow valleys.
The terrain is predominantly grassland, with scattered trees and shrubs. The elevation in this area typically ranges from about 1,300 to 1,500 meters above sea level. The Schoonspruit River flows near Ventersdorp, creating some minor variations in the landscape with its associated floodplains and gentle slopes.
For large-scale solar PV installations, the areas most suited would be the flat, open spaces that are abundant in this region. These locations offer several advantages for solar energy production:
- Minimal shading from natural features or structures
- Easy access for construction and maintenance
- Lower costs for land preparation and installation
- Good exposure to sunlight throughout the day
The areas to the north and west of Ventersdorp are particularly promising for solar PV development. These regions tend to have slightly less rainfall and more consistent sunshine compared to areas further east. Additionally, the land in these directions is generally flatter and less utilized for agriculture, making it more available for large-scale energy projects.
It's important to note that while the topography is favorable, other factors such as proximity to power infrastructure, land ownership, and environmental considerations would also play crucial roles in determining the most suitable locations for solar PV installations in the Ventersdorp area.
South Africa solar PV Stats as a country
South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in South Africa?
Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.
Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
