Vereeniging, Gauteng, South Africa, located at latitude -26.6668 and longitude 27.9362, offers a promising environment for solar PV energy generation throughout the year. This location in the Southern Sub Tropics experiences varying levels of solar potential across different seasons, making it an interesting case study for solar energy production.

Seasonal Solar Performance

The solar PV output at this location demonstrates significant seasonal variations. Spring emerges as the most productive season, with an impressive 7.23 kWh/day per kW of installed solar capacity. Summer follows closely behind at 6.42 kWh/day, while autumn sees a slight decrease to 5.77 kWh/day. Winter, as expected, shows the lowest output at 4.74 kWh/day, but still maintains a respectable level of production.

Optimal Times for Solar Generation

Based on these figures, the ideal times for solar energy generation in Vereeniging are during spring and summer. These seasons offer longer daylight hours and more direct sunlight, resulting in higher energy yields. However, it's worth noting that even during the less productive winter months, the location still maintains a reasonable level of solar output, indicating year-round viability for solar PV systems.

Panel Tilt Optimization

For fixed panel installations at this location, the ideal angle to maximize year-round solar production is 25 degrees tilted towards the North. This tilt angle is calculated based on the location's latitude and accounts for the Earth's elliptical orbit, ensuring optimal exposure to sunlight throughout the year.

Environmental and Weather Considerations

While Vereeniging generally offers favorable conditions for solar energy production, there are a few factors that could potentially impact solar panel efficiency:

• Dust and air pollution: Vereeniging is known for its industrial activities, which can lead to increased air pollution and dust. Regular cleaning of solar panels can help mitigate this issue.
• Occasional hailstorms: The region may experience hailstorms, particularly during summer. Installing hail-resistant panels or protective covers can prevent damage during severe weather events.

To ensure greater energy production, it's recommended to implement a regular maintenance schedule, including panel cleaning and inspections. Additionally, using high-quality, weather-resistant solar panels and mounting systems can help maximize the system's longevity and efficiency in this location.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

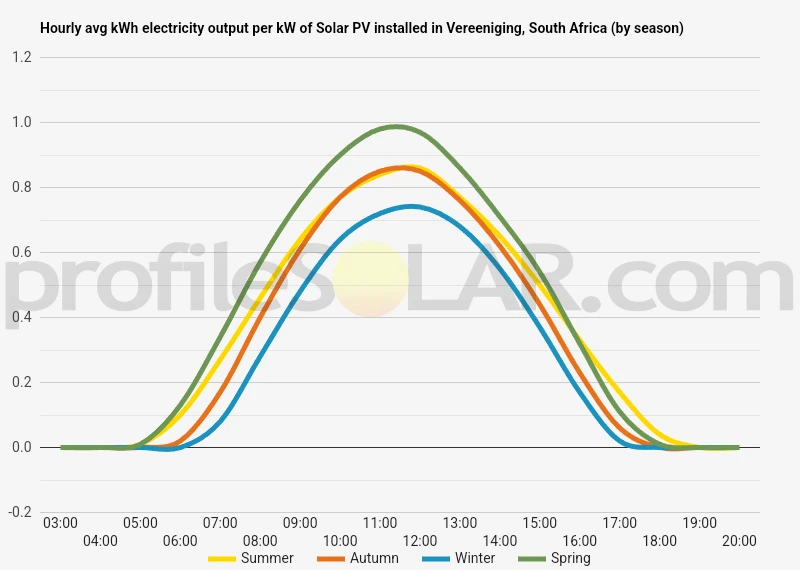

Solar output per kW of installed solar PV by season in Vereeniging

Seasonal solar PV output for Latitude: -26.6668, Longitude: 27.9362 (Vereeniging, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Vereeniging, South Africa

To maximize your solar PV system's energy output in Vereeniging, South Africa (Lat/Long -26.6668, 27.9362) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Vereeniging, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Vereeniging, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Vereeniging, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Vereeniging, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Vereeniging, South Africa

The area surrounding Vereeniging, South Africa, is characterized by a relatively flat landscape with gentle undulations. This region, known as the Vaal Triangle, is situated on the Highveld plateau, which gives it an overall elevation of around 1,500 meters above sea level. The topography is primarily shaped by the presence of the Vaal River, which flows through the area and forms a natural boundary between the Gauteng and Free State provinces. The terrain around Vereeniging consists mostly of open grasslands interspersed with scattered trees and shrubs. These grasslands, typical of the Highveld ecosystem, stretch for miles in all directions, creating a vast and expansive feel to the landscape. The area's flatness is occasionally broken by low hills and rocky outcrops, which add some variety to the otherwise uniform terrain. To the north and east of Vereeniging, the land gradually rises, forming subtle ridges and valleys. These features are more pronounced as one moves further away from the Vaal River. To the south and west, the landscape remains predominantly flat, with occasional shallow depressions that may collect water during the rainy season.

Suitability for Large-Scale Solar PV

The topography and climate of the Vereeniging area make it well-suited for large-scale solar photovoltaic (PV) installations. The flat, open terrain provides ample space for solar panel arrays without the need for extensive land modification. Additionally, the region experiences a high number of sunny days throughout the year, which is crucial for optimal solar energy generation. Several areas near Vereeniging would be particularly suitable for large-scale solar PV projects: 1. The expansive grasslands to the south and west of the city offer ideal conditions for solar farms. These areas are relatively unpopulated and have minimal obstructions that could cast shadows on solar panels. 2. The gently sloping terrain to the north and east of Vereeniging could also accommodate large solar installations. These areas may require some minor landscaping to ensure optimal panel orientation, but the gradual inclines can actually be advantageous for maximizing solar exposure throughout the day. 3. Abandoned or reclaimed mining areas in the region present opportunities for solar development. These sites often have existing infrastructure, such as access roads and power connections, which can reduce the overall cost of establishing a solar farm. 4. Agricultural land that is less productive or lying fallow could be repurposed for solar energy production. This approach would need to be balanced with food security concerns, but it could provide farmers with an alternative source of income. When considering locations for large-scale solar PV installations, it's important to factor in proximity to existing power infrastructure, environmental impact, and local community needs. The relatively flat topography of the Vereeniging area, combined with its sunny climate, makes it a promising location for harnessing solar energy on a significant scale.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
