Wynberg, Western Cape, South Africa, located in the Southern Sub Tropics, offers a promising location for solar PV energy generation. The seasonal variations in electricity output provide insights into the potential for year-round solar energy production at this specific site.

Seasonal Solar Performance

Summer stands out as the peak season for solar energy generation in Wynberg, Western Cape, with an impressive 9.00 kWh per day output for each kilowatt of installed solar capacity. Spring follows closely behind, producing 7.20 kWh/day. These warmer months present ideal conditions for maximizing solar energy production.

The cooler seasons see a decline in solar output, with autumn generating 4.98 kWh/day and winter dropping to 3.49 kWh/day. While these figures are lower, they still indicate that solar energy remains a viable option year-round in Wynberg.

Optimal Panel Positioning

To maximize year-round solar production at this location, fixed solar panels should be tilted at an angle of 29 degrees facing North. This optimal angle takes into account the Earth's elliptical orbit and local solar elevation angles, ensuring the best possible energy capture throughout the year.

Environmental Considerations

While Wynberg's climate is generally favorable for solar energy production, there are a few environmental factors to consider:

• Coastal fog: Being relatively close to the coast, morning fog may occasionally reduce solar efficiency in the early hours.
• Dust and pollen: The region's vegetation and occasional dry spells can lead to dust and pollen accumulation on panels.

To mitigate these issues, regular panel cleaning and maintenance should be incorporated into the solar installation plan. Additionally, investing in high-quality, weather-resistant panels can help ensure consistent performance in varying conditions.

Overall, Wynberg's location proves to be quite favorable for solar PV energy generation, with strong potential during summer and spring, and reasonable output even during the cooler months. With proper installation and maintenance, solar energy can be a reliable and efficient power source in this South African locale.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

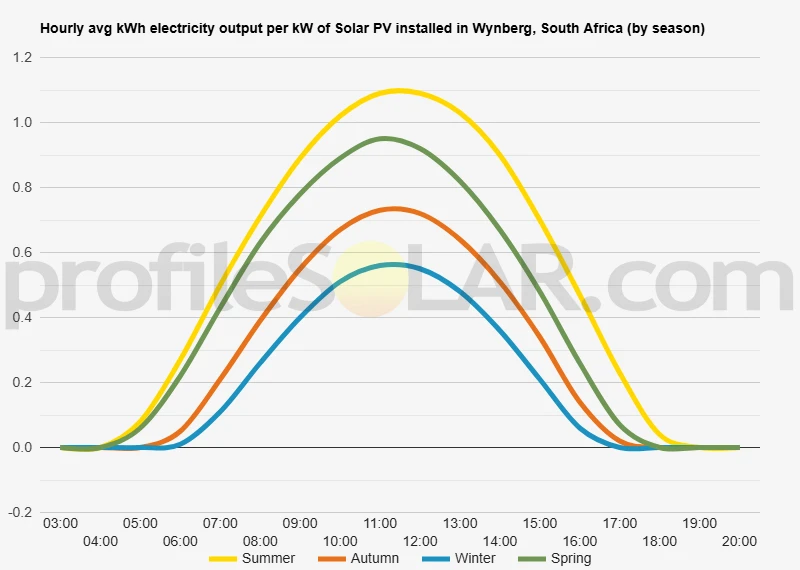

Solar output per kW of installed solar PV by season in Wynberg

Seasonal solar PV output for Latitude: -33.9998, Longitude: 18.4631 (Wynberg, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Wynberg, South Africa

To maximize your solar PV system's energy output in Wynberg, South Africa (Lat/Long -33.9998, 18.4631) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Wynberg, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wynberg, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Wynberg, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wynberg, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Wynberg, South Africa

The topography around Wynberg, South Africa, is characterized by a diverse and picturesque landscape. Situated on the southern slopes of Table Mountain, Wynberg enjoys a unique position that offers a blend of mountainous terrain and gently rolling hills. The area is part of the Cape Peninsula, which is known for its striking topographical features. To the north of Wynberg, the imposing presence of Table Mountain dominates the skyline. This flat-topped mountain rises abruptly from the surrounding landscape, creating a dramatic backdrop for the region. The mountain's steep slopes give way to more gradual inclines as one moves towards Wynberg, resulting in a series of terraced hillsides and valleys. Moving eastward from Wynberg, the terrain becomes slightly flatter, transitioning into the Cape Flats. This area is characterized by its low-lying, sandy soil and relatively level topography. The Cape Flats stretch for miles, offering a stark contrast to the mountainous regions nearby. To the south and west of Wynberg, the landscape becomes more undulating, with a series of smaller hills and valleys. This area, known as the Southern Suburbs, features a mix of residential neighborhoods nestled among green spaces and pockets of natural vegetation.

Potential Areas for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, the Cape Flats to the east of Wynberg present the most promising opportunities. This region's flat terrain and open spaces make it ideal for solar farm development. The lack of significant geographical obstacles means that solar panels could be installed with minimal land preparation, and the area receives ample sunlight throughout the year. Another potential area for solar PV development lies to the north of Wynberg, in the regions just beyond the immediate foothills of Table Mountain. While not as flat as the Cape Flats, these areas offer elevated positions with good sun exposure and fewer obstructions from natural or man-made structures. It's important to note that while the mountainous areas around Table Mountain may seem appealing due to their elevation, they are generally not suitable for large-scale solar installations. The steep slopes, protected natural status, and potential for shadowing effects make these areas less practical for solar farm development. Any large-scale solar PV project in the region would need to carefully consider environmental impacts, local regulations, and the proximity to existing power infrastructure. The areas suggested here offer the best balance of suitable topography, available land, and solar potential in the vicinity of Wynberg.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
