Solar Energy Potential in Jung-gu, South Korea

Jung-gu, South Korea, located at coordinates 37.4676, 126.62 in the Northern Temperate Zone, presents a moderate opportunity for solar PV energy generation throughout the year, with significant seasonal variations. The solar energy production at this location follows a predictable seasonal pattern. Summer months deliver the highest energy output at 5.51 kWh per day for each kilowatt of installed capacity. Spring follows closely behind with 5.31 kWh/day per kW. Production decreases considerably during autumn (3.67 kWh/day) and reaches its lowest point in winter (2.89 kWh/day).

Seasonal Variations and Optimal Generation Periods

The most productive periods for solar generation in Jung-gu are clearly the summer and spring seasons, when panels can produce nearly twice the energy compared to winter months. This makes May through August particularly valuable for solar energy harvesting. The significant drop in autumn and winter indicates that supplementary energy sources might be necessary during these periods for consistent power supply. For fixed solar panel installations in Jung-gu, the ideal tilt angle to maximize year-round energy production is 33 degrees facing South. This angle has been calculated to optimize the annual solar energy capture based on the location's latitude and seasonal sun positions.

Environmental and Weather Considerations

Several environmental factors in Jung-gu could potentially impact solar energy production:

• Seasonal monsoons and typhoons: The Korean peninsula experiences a summer monsoon season with heavy rainfall, which can reduce solar efficiency. Typhoons may also affect the region, potentially damaging installations if not properly secured.
• Air pollution and dust: Jung-gu, being in an industrialized region, may experience air pollution and dust accumulation on panels, reducing their efficiency.
• Snow accumulation: Winter snowfall can cover panels and temporarily halt production.

Preventative Measures for Installation

To maximize solar energy production in Jung-gu despite these challenges, consider implementing these preventative measures:

• Install panels with sturdy mounting systems designed to withstand strong winds from typhoons and monsoons.
• Incorporate automated cleaning systems or schedule regular manual cleaning to address dust and pollution buildup.
• Consider slightly steeper panel angles than the optimal 33 degrees in areas prone to snow accumulation to facilitate natural snow sliding.
• Use high-efficiency panels that perform better in lower light conditions to improve winter and cloudy day production.
• Implement micro-inverters or power optimizers to minimize the impact of partial shading from nearby buildings or structures.

With proper planning and installation techniques addressing these factors, Jung-gu can be a viable location for solar PV systems, particularly capitalizing on the productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 124 locations across South Korea. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Korea by location

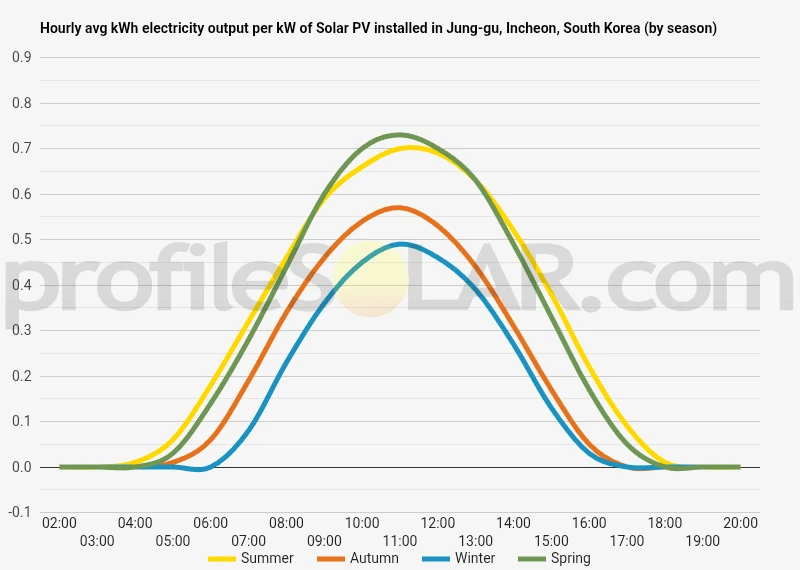

Solar output per kW of installed solar PV by season in Jung-gu, Incheon

Seasonal solar PV output for Latitude: 37.4676, Longitude: 126.62 (Jung-gu, Incheon, South Korea), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° South in Jung-gu, Incheon, South Korea

To maximize your solar PV system's energy output in Jung-gu, Incheon, South Korea (Lat/Long 37.4676, 126.62) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jung-gu, Incheon, South Korea

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jung-gu, Incheon, South Korea. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	42° South in Autumn	52° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jung-gu, Incheon, South Korea

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jung-gu, Incheon, South Korea.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jung-gu, Incheon, South Korea

Jung-gu is located in Incheon, South Korea, situated on the western coast of the Korean Peninsula facing the Yellow Sea. The topography of this area presents an interesting mix of coastal plains, urban development, and some modest elevation changes typical of Korea's western regions. The terrain around Jung-gu is predominantly flat to gently rolling, especially near the coastal areas. This coastal plain gradually rises toward the east, where the landscape begins to show more variation in elevation. The area sits at a relatively low altitude, with most of the district being below 50 meters above sea level. This flatness is particularly pronounced in the western portions closest to the sea.

Coastal Features

Jung-gu includes several islands and reclaimed land areas that are connected to the mainland by bridges and causeways. The coastal nature of this region means that much of the natural landscape has been influenced by tidal patterns and marine processes over centuries. The shoreline areas feature mudflats and tidal zones that are characteristic of the Yellow Sea coast. The district is situated near the mouth of the Han River, which has shaped the topography through sediment deposition, creating alluvial plains that are extremely flat. These plains have traditionally been favorable for urban development, transportation infrastructure, and now potentially for renewable energy projects.

Urban Development Impact

It's important to note that Jung-gu is highly urbanized, with significant portions of the natural topography modified by human development. The original contours of the land have been altered through construction, land reclamation projects, and infrastructure development. Incheon International Airport, located on reclaimed land near Jung-gu, exemplifies the extensive land modification in this region.

Potential Areas for Solar PV Development

For large-scale solar PV installations, several nearby areas show promise based on topographical considerations: The reclaimed land areas to the west of Jung-gu offer extensive flat terrain with minimal shading concerns. These areas have the advantage of being relatively new developments with fewer competing land uses and good exposure to sunlight throughout the day. The coastal plains extending south from Jung-gu toward Siheung and Ansan provide flat, open spaces that could accommodate large solar installations. These areas benefit from the natural flatness of the coastal plain and relatively sparse tall structures that might cast shadows. Moving slightly inland to the east and southeast, the gently rising terrain offers potential for solar installations that could be oriented optimally toward the sun. These areas, while showing more topographical variation, still provide suitable gradients for solar PV without excessive earthwork requirements. The less developed regions south of Incheon, where the topography remains relatively flat but urban density decreases, present opportunities for larger contiguous solar installations. These areas balance accessibility with available open space.

Topographical Challenges

Despite these promising areas, certain topographical features present challenges for solar development. The mountainous regions farther east, while limited around Jung-gu itself, become more pronounced as one moves toward the central part of the Korean Peninsula. These areas would require more extensive site preparation and might suffer from morning shadow effects. Additionally, the coastal location means that some potential sites may be vulnerable to flooding or storm surges, particularly given climate change projections. The tidal flats, while flat, present engineering challenges due to soft soils and potential inundation. The urban density of Jung-gu proper means that large-scale ground-mounted solar would likely need to be located in the surrounding regions rather than within the district itself, where rooftop solar would be more appropriate given the limited available ground space.

South Korea solar PV Stats as a country

South Korea ranks 8th in the world for cumulative solar PV capacity, with 18,161 total MW's of solar PV installed. This means that 3.80% of South Korea's total energy as a country comes from solar PV (that's 21st in the world). Each year South Korea is generating 350 Watts from solar PV per capita (South Korea ranks 9th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Korea?

Yes, there are incentives for businesses wanting to install solar energy in South Korea. The Korean government offers a variety of financial incentives and subsidies for businesses that install solar energy systems. These include tax credits, grants, loans, and other forms of support. Additionally, the government has implemented a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make the installation of solar energy systems more attractive to businesses by providing them with a guaranteed return on their investment.
