Parjok, Eastern Equatoria, South Sudan presents excellent conditions for year-round solar energy generation, with consistently high electricity output throughout all seasons. Located in the tropical zone at coordinates 3.8651°N, 32.4821°E, this area benefits from stable sunlight patterns typical of equatorial regions where seasonal variations are minimal.

Solar Energy Production Performance

The solar energy output at Parjok demonstrates remarkable consistency across all meteorological seasons. Summer produces 5.76 kWh per day per kW of installed solar capacity, while autumn and spring both generate 6.32 kWh per day per kW. Winter shows the highest production at 6.50 kWh per day per kW of installed capacity. This pattern is typical for tropical locations, where the sun's path varies less dramatically throughout the year compared to higher latitudes. The slight increase in winter production likely reflects clearer atmospheric conditions during the drier months.

Optimal Installation Configuration

For maximum year-round energy production at Parjok, Eastern Equatoria, solar panels should be installed at a fixed tilt angle of 4 degrees facing south. This shallow angle reflects the location's proximity to the equator, where the sun passes nearly overhead throughout most of the year.

Environmental and Weather Challenges

Several significant factors could impact solar energy production at this South Sudan location:

• Dust and sand accumulation: The region experiences significant dust storms, particularly during dry seasons, which can reduce panel efficiency by 20-30%
• Heavy rainfall and flooding: Intense wet season rains can cause flooding and create accessibility issues for maintenance
• High humidity: Tropical humidity levels can affect electrical components and connections
• Extreme temperatures: High ambient temperatures can reduce panel efficiency and stress electrical systems

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Regular cleaning systems: Install automated cleaning mechanisms or establish frequent manual cleaning schedules to remove dust and debris
• Elevated mounting: Mount panels well above ground level to prevent flood damage and improve air circulation for cooling
• Quality weatherproofing: Use marine-grade electrical connections and weatherproof enclosures rated for tropical conditions
• Ventilation design: Ensure adequate airflow beneath panels to reduce operating temperatures
• Robust foundations: Design mounting systems to withstand heavy rainfall and potential ground saturation

Despite these challenges, Parjok's consistent solar output throughout the year makes it an excellent location for solar energy projects, provided proper installation and maintenance protocols are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 8 locations across South Sudan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Sudan by location

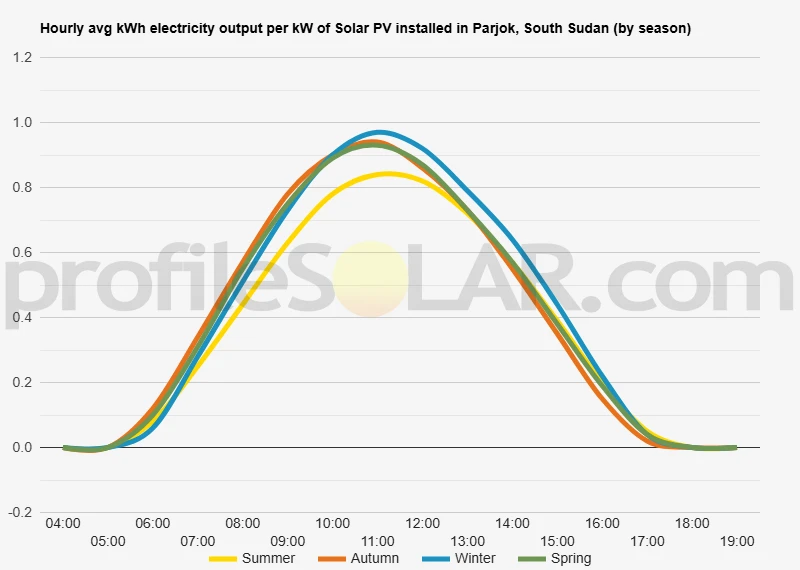

Solar output per kW of installed solar PV by season in Parjok

Seasonal solar PV output for Latitude: 3.8651, Longitude: 32.4821 (Parjok, South Sudan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° South in Parjok, South Sudan

To maximize your solar PV system's energy output in Parjok, South Sudan (Lat/Long 3.8651, 32.4821) throughout the year, you should tilt your panels at an angle of 4° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Parjok, South Sudan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Parjok, South Sudan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	10° South in Autumn	20° South in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Parjok, South Sudan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Parjok, South Sudan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Parjok, South Sudan

Topographical Features Around Parjok

The landscape surrounding Parjok in South Sudan is characterized by relatively flat to gently rolling terrain typical of the East African savanna region. This area sits within the broader Nile River basin system, where the topography consists primarily of low-lying plains with minimal elevation changes across the immediate vicinity. The terrain features subtle undulations rather than dramatic hills or valleys, creating a landscape that rises and falls gradually across the region. The local topography is influenced by seasonal water patterns, with numerous small seasonal streams and wetland areas that become more prominent during the rainy season. These water features create slight depressions in the otherwise fairly uniform landscape. The soil composition varies from sandy loam in elevated areas to clay-rich deposits in lower-lying sections where water tends to collect during wet periods. Vegetation in the area consists mainly of grassland savanna with scattered acacia trees and small woodland patches. The relatively open nature of the landscape means that natural shading from large forest canopies is limited, though individual trees and small groves are distributed throughout the region.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be the elevated plateau areas that extend northwest and southeast of Parjok. These slightly higher elevations offer several advantages including better drainage during wet seasons and reduced risk of flooding. The terrain in these areas is sufficiently flat to minimize grading costs while providing enough slope for proper water runoff. Areas with sandy loam soils would be preferable for solar development as they offer better drainage characteristics and more stable foundation conditions compared to the clay-heavy soils found in lower-lying areas. The northwestern section of the region appears particularly promising due to its combination of appropriate elevation, good drainage, and relatively sparse vegetation that would require minimal clearing. The southeastern elevated areas also present good opportunities for solar development, particularly where the terrain is most level and tree coverage is naturally sparse. These locations would benefit from reduced site preparation costs and lower environmental impact during construction. Areas to avoid for large-scale solar installations include the seasonal wetlands and stream corridors, where water accumulation during rainy periods could pose operational challenges. The lowest-lying areas with heavy clay soils should also be avoided due to potential drainage issues and the increased complexity of foundation installation in these soil conditions.
